Honda HRX537C1 - HXEA - MAGA 1300001-1399999 Rotary Blade Diagram

Name: Honda HRX537C1 - HXEA - MAGA 1300001-1399999 Rotary Blade Diagram
SKU: hrx537c1_hxea_maga_1300001_1399999_rotary_blade-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

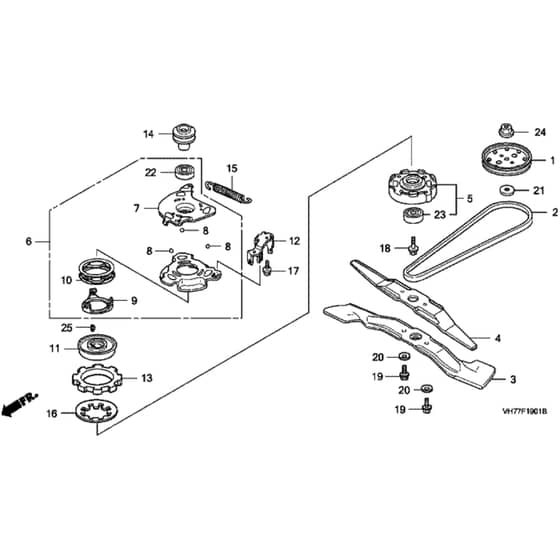

Honda HRX537C1 - HXEA - MAGA 1300001-1399999 Rotary Blade Diagram

Description

Honda HRX537C1 - HXEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP22420-VH7-A00 Out of stock	Pulley	£54.04 £45.03
2	HP22432-VH7-A00 In stock	Belt	£26.74 £22.28
3	HP72511-VH7-000 In stock	Blade	£44.68 £37.23
4	HP72531-VH7-000 In stock	Upper Blade	£44.68 £37.23
5	HP72600-VE1-G00 Out of stock	Blade Holder Assy	£75.24 £62.70
6	HP75110-VE1-R00 Out of stock	Ball Control Plate	£84.90 £70.75
7	HP75111-VE1-G01 Out of stock	Control Plate	£19.44 £16.20
8	HP75117-VE1-G00 Out of stock	Bearing	£3.96 £3.30
9	HP75127-VE1-G00 Out of stock	Spring Hook Plate	£16.34 £13.62
10	HP75132-VE1-G00 Out of stock	Spring	£12.00 £10.00
11	HP75141-VE1-R00 Out of stock	Drive Disk	£29.63 £24.69
12	HP75143-VE1-G00 Out of stock	Return Spring Hook	£7.58 £6.32
13	HP75150-VE1-R00 In stock	Driven Disk Assy	£59.10 £49.25
14	HP75162-VE1-G00 Out of stock	Pulley	£36.89 £30.74
15	HP75185-VE1-G00 Out of stock	Clutch Return Spring	£10.18 £8.48
16	HP75183-VE1-G01 In stock	Clutch Spring	£11.16 £9.30
17	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
18	HP90101-VE1-G00 Out of stock	Flange Bolt 10 X 24	£2.99 £2.49
19	HP90105-960-710 Out of stock	Blade Bolt	£2.65 £2.21
20	HP90502-VG3-000 Out of stock	Spring Washer 10Mm	£1.39 £1.16
21	HP90504-VH7-A00 Out of stock	Washer	£1.10 £0.92
23	HP91102-VA4-013 In stock	Bearing	£29.38 £24.48
24	HP94050-10080 Out of stock	Flange Nut 10Mm	£3.61 £3.01
25	HP94401-16150 In stock	Woodruff Key	£0.68 £0.57
