Honda HRX537C1 - HXEA - MAGA 1300001-1399999 Front Wheel Diagram

Name: Honda HRX537C1 - HXEA - MAGA 1300001-1399999 Front Wheel Diagram
SKU: hrx537c1_hxea_maga_1300001_1399999_front_wheel-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX537C1 - HXEA - MAGA 1300001-1399999 Front Wheel Diagram

Description

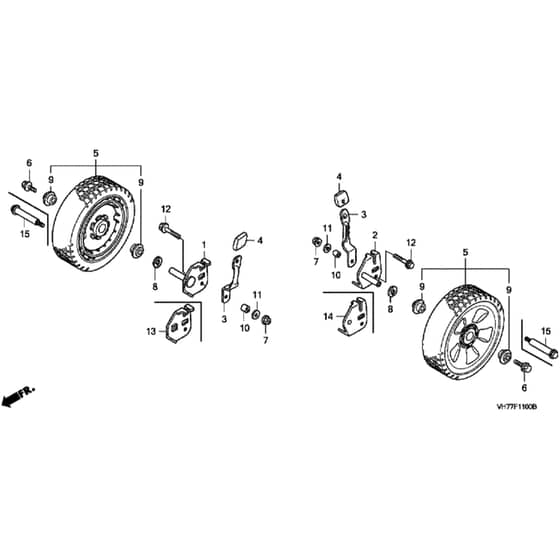

Honda HRX537C1 - HXEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42910-VH7-000 Out of stock	Front Adjuster Kit R H	£20.47 £17.06
2	HP06429-VH7-305 Out of stock	Adjuster Kit	£21.35 £17.79
3	HP42951-VE2-000 In stock	Front Adjuster Plate	£16.00 £13.33
4	HP42952-VG3-000ZA In stock	Adjuster Grip	£1.56 £1.30
5	HP44710-VH7-010ZA Out of stock	Front Wheel	£40.16 £33.47
6	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
7	HP90115-659-003 Out of stock	Nut	£6.30 £5.25
8	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
9	HP91056-VL0-B00 In stock	Wheel Bearing	£4.44 £3.70
10	HP91561-VH7-000 Out of stock	Arm Collar	£2.65 £2.21
11	HP94103-08000 Out of stock	Plain Washer 8Mm	£0.48 £0.40
12	HP95801-0805000 Out of stock	Flange Bolt 8 X 50	£2.60 £2.17
