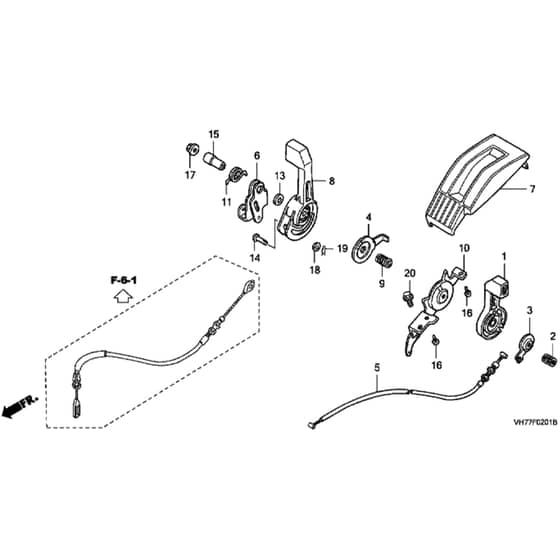

Honda HRX537C - TDE - MAGA 1000001-1299999 Throttle Lever Diagram

Honda HRX537C - TDE - MAGA 1000001-1299999 Throttle Lever Diagram
Honda HRX537C - TDE - MAGA 1000001-1299999 Throttle Lever Diagram

Description

Honda HRX537C - TDE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Throttle Lever
Throttle Lever
HP17851-VA3-D01 In stock
Throttle Lever
£15.01 £12.51

  2 Throttle Lever Spring
Throttle Lever Spring
HP17858-VA4-000 In stock
Throttle Lever Spring
£4.76 £3.97

  3 Seat Spring
Seat Spring
HP17859-VA3-800 Out of stock
Seat Spring
£7.62 £6.35

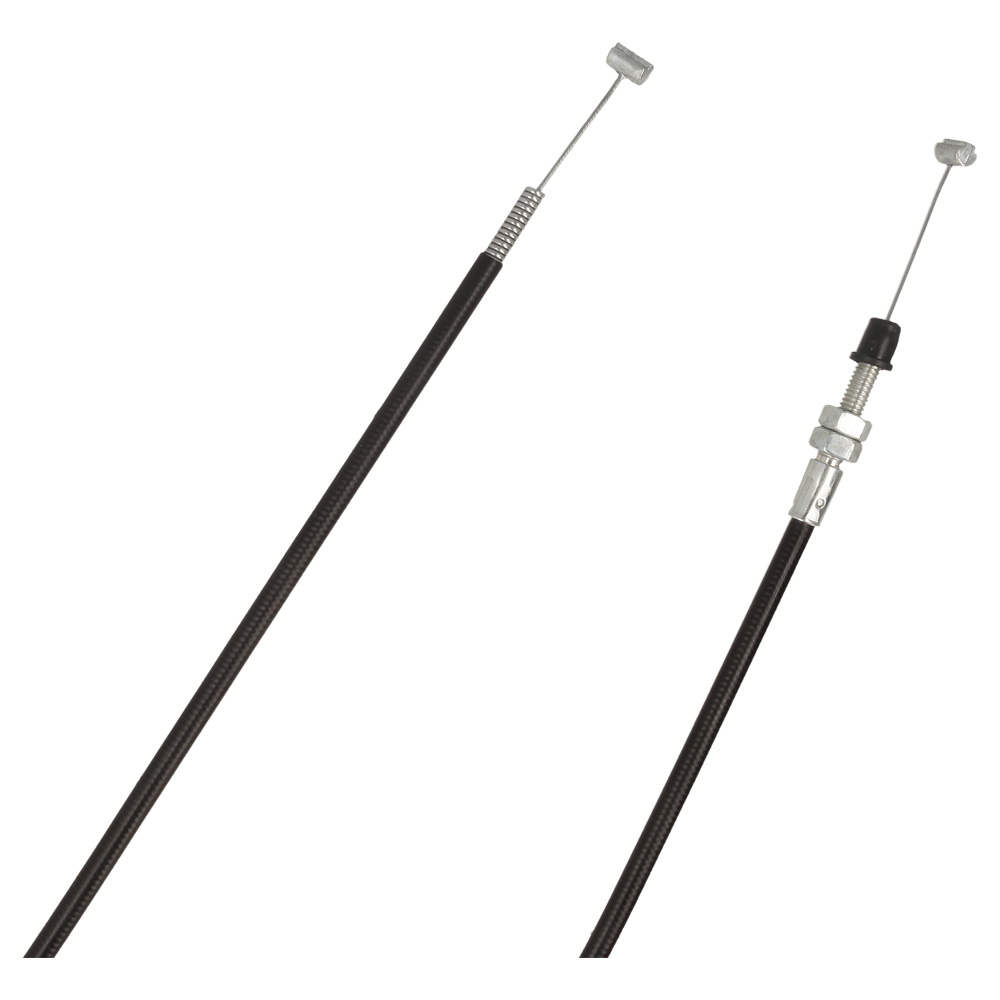

  4 Throttle Cable
Throttle Cable
HP17910-VH7-000 Out of stock
Throttle Cable
£17.92 £14.93

  5 Wave Washer
Wave Washer
HP47363-671-300 Out of stock
Wave Washer
£5.28 £4.40

  6 Control Cover
Control Cover
HP54231-VA3-800 Out of stock
Control Cover
£43.74 £36.45

  7 Lever
Lever
HP54311-VE1-R00 Out of stock
Lever
£18.90 £15.75

  8 Stopper Lever
Stopper Lever
HP54315-VE1-R00 Out of stock
Stopper Lever
£39.66 £33.05

  9 Speed Change Cable
Speed Change Cable
HP54630-VH7-000 Out of stock
Speed Change Cable
£33.02 £27.52

  11 Tapping Screw
Tapping Screw
HP93901-35210 Out of stock
Tapping Screw
£1.80 £1.50

  12 Flange Nut 6Mm
Flange Nut 6Mm
HP94050-06080 Out of stock
Flange Nut 6Mm
£0.77 £0.64

  13 Plain Washer 6Mm
Plain Washer 6Mm
HP94101-06800 Out of stock
Plain Washer 6Mm
£1.09 £0.91

  14 E Ring
E Ring
HP94540-05010 Out of stock
E Ring
£4.04 £3.37

  15 Bolt
Bolt
HP95701-0601000 Out of stock
Bolt
£1.69 £1.41


Description

Honda HRX537C - TDE Rotary Mower Parts Diagram
