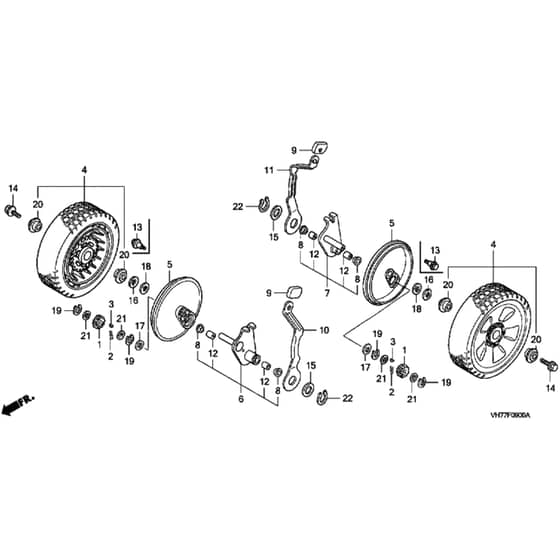

Honda HRX537C - HXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Pinion Gear
Pinion Gear
HP42661-VH7-000 In stock
Pinion Gear
£7.66 £6.38

  2 Pawl Spring
Pawl Spring
HP42668-VE2-800 In stock
Pawl Spring
£1.10 £0.92

  3 Ratchet Key
Ratchet Key
HP42672-VE2-800 In stock
Ratchet Key
£3.84 £3.20

  4 Rear Wheel
Rear Wheel
HP42710-VH7-010ZA In stock
Rear Wheel
£47.96 £39.97

  5 Cover
Cover
HP42866-VH7-000 Out of stock
Cover
£12.60 £10.50

  6 Arm
Arm
HP42930-VH7-010 Out of stock
Arm
£29.80 £24.83

  7 Adjuster Arm Front L H
Adjuster Arm Front L H
HP42940-VH7-010 Out of stock
Adjuster Arm Front L H
£29.46 £24.55

  8 Dust Seal 12.7Mm
Dust Seal 12.7Mm
HP42944-VE2-801 In stock
Dust Seal 12.7Mm
£9.66 £8.05

  9 Adjuster Grip
Adjuster Grip
HP42952-VG3-000ZA In stock
Adjuster Grip
£1.56 £1.30

  10 Rear Adjuster Plate R H
Rear Adjuster Plate R H
HP42961-VH7-000 Out of stock
Rear Adjuster Plate R H
£17.33 £14.44

  11 Height Adjuster Lever
Height Adjuster Lever
HP42966-VH7-000 Out of stock
Height Adjuster Lever
£15.90 £13.25

  12 Drive Shaft Bush
Drive Shaft Bush
HP44327-VE2-801 In stock
Drive Shaft Bush
£8.35 £6.96

  13 Tapping Screw
Tapping Screw
HP90103-VE2-801 Out of stock
Tapping Screw
£1.82 £1.52

  14 Wheel Bolt
Wheel Bolt
HP90110-VA4-000 Out of stock
Wheel Bolt
£4.97 £4.14

  15 Plain Washer 22Mm
Plain Washer 22Mm
HP90403-952-770 Out of stock
Plain Washer 22Mm
£3.32 £2.77

  16 Wheel Washer
Wheel Washer
HP90455-VA2-000 In stock
Wheel Washer
£3.18 £2.65

  17 Thrust Washer 13Mm
Thrust Washer 13Mm
HP90502-VE2-800 Out of stock
Thrust Washer 13Mm
£3.96 £3.30

  18 Thrust Washer 13 X 27 X 1
Thrust Washer 13 X 27 X 1
HP90505-VG3-000 Out of stock
Thrust Washer 13 X 27 X 1
£0.85 £0.71

  19 External Circlip 12.7Mm
External Circlip 12.7Mm
HP90651-VE2-800 In stock
External Circlip 12.7Mm
£1.46 £1.22

  21 Pinion Gear Collar
Pinion Gear Collar
HP91559-VE2-800 In stock
Pinion Gear Collar
£2.08 £1.73

  22 External Circlip 22Mm
External Circlip 22Mm
HP94511-22000 Out of stock
External Circlip 22Mm
£2.34 £1.95
