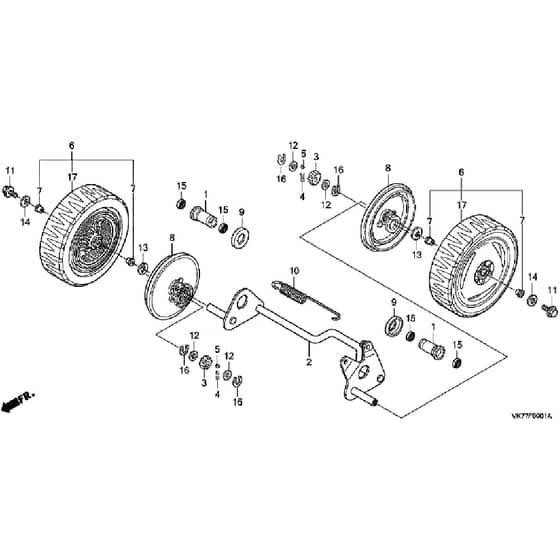

Honda HRX476C2 - VYEH - Rear Wheels Diagram

Honda HRX476C2 - VYEH -  Rear Wheels Diagram
Honda HRX476C2 - VYEH -  Rear Wheels Diagram

Description

Honda HRX476C2 - VYEH Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Drive Shaft Collar
Drive Shaft Collar
HP41418-VK8-J50 Out of stock
Drive Shaft Collar
£26.77 £22.31

  2 Axle Shaft
Axle Shaft
HP42310-VK8-M50 Out of stock
Axle Shaft
£83.50 £69.58

  3 Pinion Gear
Pinion Gear
HP42661-VH3-850 Out of stock
Pinion Gear
£6.50 £5.42

  4 Pawl Spring
Pawl Spring
HP42668-VE2-800 In stock
Pawl Spring
£1.10 £0.92

  5 Ratchet Key
Ratchet Key
HP42672-VE2-800 In stock
Ratchet Key
£3.84 £3.20

  7 Wheel Bush
Wheel Bush
HP42716-VE0-800 In stock
Wheel Bush
£3.48 £2.90

  8 Wheel Cover
Wheel Cover
HP42866-VE0-800ZA Out of stock
Wheel Cover
£5.76 £4.80

  10 Balance Spring
Balance Spring
HP42992-VK8-J50 Out of stock
Balance Spring
£45.10 £37.58

  11 Wheel Bolt
Wheel Bolt
HP90110-VA4-000 Out of stock
Wheel Bolt
£4.97 £4.14

  12 Washer
Washer
HP90452-166-600 Out of stock
Washer
£1.50 £1.25

  13 Washer 13Mm
Washer 13Mm
HP90505-VA9-K40 Out of stock
Washer 13Mm
£1.75 £1.46

  14 Wheel Washer
Wheel Washer
HP90506-VA9-K41 Out of stock
Wheel Washer
£4.14 £3.45

  16 External Circlip 12Mm
External Circlip 12Mm
HP94510-12000 Out of stock
External Circlip 12Mm
£1.34 £1.12

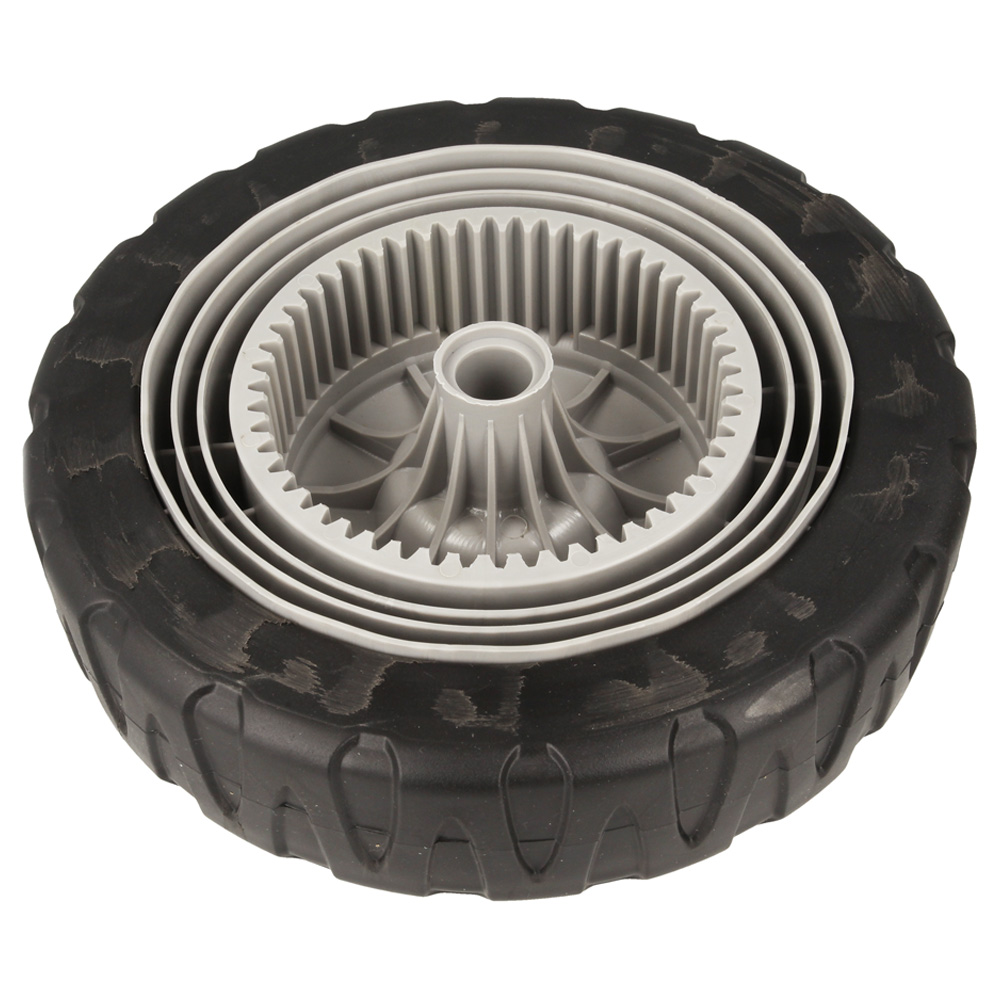

  17 Rear Drive Wheel
Rear Drive Wheel
HP42710-VH3-R20ZB Out of stock
Rear Drive Wheel
£37.80 £31.50


Description

Honda HRX476C2 - VYEH Rotary Mower Parts Diagram
