Honda HRX476C2 - QYEH - Transmission Diagram

Honda HRX476C2 - QYEH - Transmission Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX476C2 - QYEH - Transmission Diagram

Honda HRX476C2 - QYEH - Transmission Diagram

Description

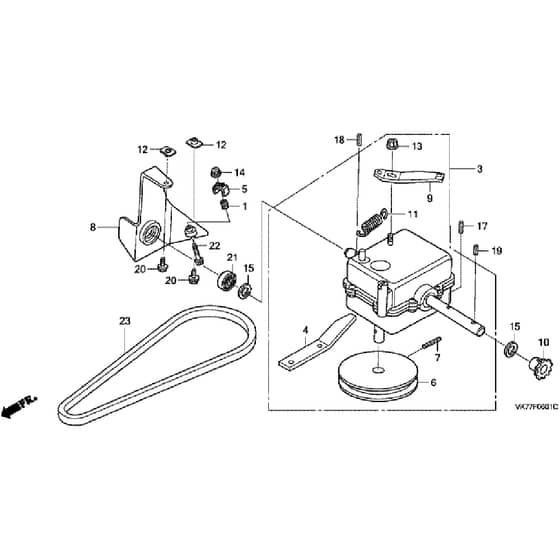

Honda HRX476C2 - QYEH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HP17858-VA4-000 In stock	Throttle Lever Spring		£4.76 £3.97
	3		HP20001-VK8-A52 In stock	Transmission Assy		£225.72 £188.10
	5		HP21557-VA9-F60 Out of stock	Spring Holder		£8.90 £7.42
	6		HP22421-VE1-T00 Out of stock	Pulley		£39.72 £33.10
	7		HP22428-VA9-F60 Out of stock	Spring Pin		£0.77 £0.64
	8		HP22511-VK8-A50 Out of stock	Guide		£40.88 £34.07
	9		HP22811-VE0-M12 Out of stock	Clutch Arm		£26.16 £21.80
	10		HP23121-VE0-M10 In stock	Drive Sprocket		£59.83 £49.86
	11		HP23439-VE0-851 Out of stock	Clutch Arm Return Spring		£3.95 £3.29
	12		HP61304-958-003 Out of stock	Nut		£6.37 £5.31
	13		HP90301-VE0-L01 Out of stock	Lock Nut 5Mm		£5.76 £4.80
	14		HP90308-SA0-981 Out of stock	Lock Nut		£5.04 £4.20
	15		HP90459-107-000 In stock	Washer		£2.51 £2.09
	17		HP94305-40182 Out of stock	Spring Pin 4 X 18		£2.47 £2.06
	19		HP94305-50221 In stock	Spring Pin 5 X 22		£2.75 £2.29
	20		HP95701-0601200 In stock	Bolt		£1.45 £1.21
	21		HP96150-6001010 Out of stock	Bearing		£6.24 £5.20
	22		HP96600-0604000 Out of stock	Bolt		£0.48 £0.40
	23		HP23161-VE0-M11 In stock	Belt		£27.52 £22.93
