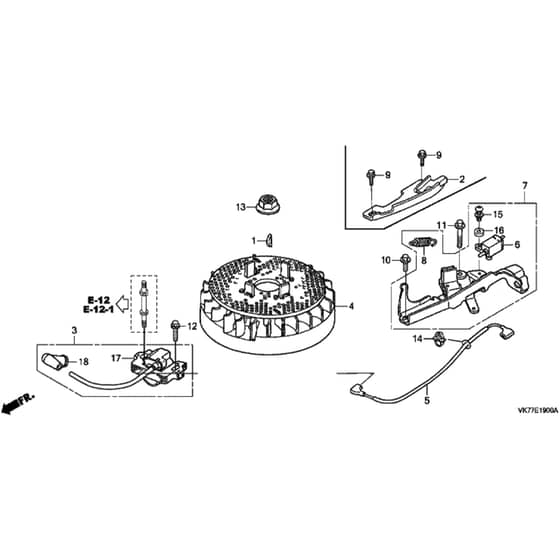

Honda HRX476C1 - VYEE - MASF 1130001- Flywheel Diagram

Name: Honda HRX476C1 - VYEE - MASF 1130001- Flywheel Diagram
SKU: hrx476c1_vyee_masf_1130001_flywheel-group
Price: 0.76 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX476C1 - VYEE - MASF 1130001- Flywheel Diagram

Description

Honda HRX476C1 - VYEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP13331-357-000 Out of stock	Woodruff Key	£9.46 £7.88
2	HP19612-Z1L-000 Out of stock	Plate	£7.40 £6.17
4	HP31105-ZM0-000 Out of stock	Flywheel Assy	£54.13 £45.11
4	HP31105-ZL8-000 Out of stock	Flywheel Assy	£144.72 £120.60
5	HP32195-ZM0-000 Out of stock	Stop Switch	£11.03 £9.19
6	HP35120-ZM0-003 Out of stock	Engine Stop Switch Assy	£14.23 £11.86
7	HP75100-Z1L-000 Out of stock	Brake Assy	£50.40 £42.00
8	HP75113-ZM0-000 Out of stock	Spring	£3.23 £2.69
9	HP90013-883-000 Out of stock	Flange Bolt 6 X 12	£4.63 £3.86
10	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
11	HP90018-ZE1-000 Out of stock	Flange Bolt	£3.52 £2.93
12	HP90022-888-010 Out of stock	Flange Bolt 6 X 20	£2.93 £2.44
13	HP90201-Z0T-800 Out of stock	Speical Nut 14Mm	£7.60 £6.33
14	HP90681-959-003 Out of stock	Cable Clip	£1.02 £0.85
15	HP93892-0401200 Out of stock	Screw	£1.90 £1.58
16	HP94103-040-00 Out of stock	Washer 4Mm	£0.91 £0.76
17	HP30500-Z1L-003 Out of stock	Ignition Coil Assy	£60.12 £50.10
18	HP30700-ZJ1-841 Out of stock	Plug Cap	£15.76 £13.13
