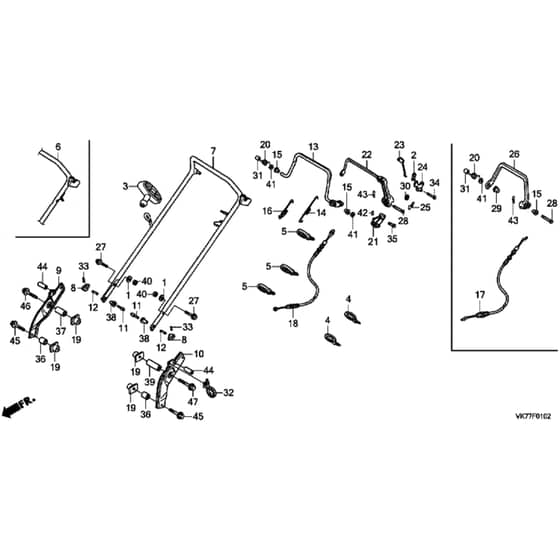

Honda HRX476C1 - VKEE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Spacer
Spacer
HP16577-ZG3-000 Out of stock
Spacer
£4.73 £3.94

  2 Rod Joint
Rod Joint
HP16956-892-000 Out of stock
Rod Joint
£8.52 £7.10

  3 Recoil Starter Handle
Recoil Starter Handle
HP28461-ZE7-T01 Out of stock
Recoil Starter Handle
£7.02 £5.85

  4 Cable Tie
Cable Tie
HP32901-VE0-850 Out of stock
Cable Tie
£6.30 £5.25

  5 Cable Tie
Cable Tie
HP32901-VK7-000 Out of stock
Cable Tie
£6.30 £5.25

  7 Handle
Handle
HP53110-VK8-J51 Out of stock
Handle
£107.56 £89.63

  8 Handle Grip
Handle Grip
HP53125-VL0-B00ZA Out of stock
Handle Grip
£17.17 £14.31

  9 Handle Stay R H
Handle Stay R H
HP53131-VK8-J50 Out of stock
Handle Stay R H
£35.24 £29.37

  10 Handle Stay L H
Handle Stay L H
HP53136-VK8-J50 Out of stock
Handle Stay L H
£35.24 £29.37

  11 Pin
Pin
HP53158-VK8-J50 Out of stock
Pin
£14.82 £12.35

  12 Handle Adjusting Spring
Handle Adjusting Spring
HP53367-VL0-B00 Out of stock
Handle Adjusting Spring
£1.26 £1.05

  13 Clutch Lever Assy
Clutch Lever Assy
HP54410-VA9-H50 Out of stock
Clutch Lever Assy
£78.72 £65.60

  14 Clutch Spring
Clutch Spring
HP54411-VA3-P00 In stock
Clutch Spring
£8.40 £7.00

  15 Clutch Lever Bush
Clutch Lever Bush
HP54412-952-770 Out of stock
Clutch Lever Bush
£4.62 £3.85

  16 Clutch Lever Return Spring
Clutch Lever Return Spring
HP54414-VA3-P00 In stock
Clutch Lever Return Spring
£6.12 £5.10

  17 Brake Cable
Brake Cable
HP54530-VK8-D51 Out of stock
Brake Cable
£34.66 £28.88

  18 Roto-Stop Cable
Roto-Stop Cable
HP54530-VK8-J50 Out of stock
Roto-Stop Cable
£44.04 £36.70

  19 Head Light Set Nut
Head Light Set Nut
HP61304-165-013 Out of stock
Head Light Set Nut
£5.57 £4.64

  20 Stop Return Spring R H
Stop Return Spring R H
HP75118-VA3-J00 In stock
Stop Return Spring R H
£7.56 £6.30

  21 Cable Arm
Cable Arm
HP75128-VE0-L00 Out of stock
Cable Arm
£14.41 £12.01

  22 Roto-Stop Lever Assy
Roto-Stop Lever Assy
HP75161-VE0-L01 Out of stock
Roto-Stop Lever Assy
£58.56 £48.80

  23 Ratchet Push Rod
Ratchet Push Rod
HP75165-VE0-L00 Out of stock
Ratchet Push Rod
£9.96 £8.30

  24 Lock Lever
Lock Lever
HP75166-VE0-L00 Out of stock
Lock Lever
£7.10 £5.92

  25 Pawl Spring
Pawl Spring
HP75168-VA4-000 Out of stock
Pawl Spring
£5.51 £4.59

  26 Brake Lever
Brake Lever
HP75190-VE1-E00ZA Out of stock
Brake Lever
£160.20 £133.50

  27 Flange Bolt
Flange Bolt
HP90101-VK8-J50 Out of stock
Flange Bolt
£2.92 £2.43

  28 Clutch Lever Pin
Clutch Lever Pin
HP90106-VA4-800 Out of stock
Clutch Lever Pin
£9.95 £8.29

  28 Pin
Pin
HP90106-VA4-000 Out of stock
Pin
£10.06 £8.38

  29 Push Nut
Push Nut
HP90301-VA3-J01 In stock
Push Nut
£2.28 £1.90

  30 Special Washer 6Mm
Special Washer 6Mm
HP90407-952-300 Out of stock
Special Washer 6Mm
£4.10 £3.42

  31 Collar 8 X 11 X 13.5
Collar 8 X 11 X 13.5
HP90552-VA3-J00 Out of stock
Collar 8 X 11 X 13.5
£5.89 £4.91

  32 Strap
Strap
HP90672-SA0-003 Out of stock
Strap
£8.28 £6.90

  33 Pin
Pin
HP90751-VL0-B00 Out of stock
Pin
£1.16 £0.97

  34 Lever Hinge Lock Pin
Lever Hinge Lock Pin
HP90753-VA3-J00 Out of stock
Lever Hinge Lock Pin
£4.13 £3.44

  35 Cable Joint Pin
Cable Joint Pin
HP90754-VA9-P40 Out of stock
Cable Joint Pin
£3.08 £2.57

  36 Lower Stay Collar
Lower Stay Collar
HP91551-VE2-000 Out of stock
Lower Stay Collar
£2.74 £2.28

  37 Collar
Collar
HP91551-VK8-J50 Out of stock
Collar
£9.84 £8.20

  38 Handle Height Collar
Handle Height Collar
HP91551-VL0-B00 Out of stock
Handle Height Collar
£3.95 £3.29

  39 Collar
Collar
HP91552-VK8-J50 Out of stock
Collar
£9.84 £8.20

  40 Nut
Nut
HP94031-08070 Out of stock
Nut
£3.84 £3.20

  41 Plain Washer 8Mm
Plain Washer 8Mm
HP94101-08000 Out of stock
Plain Washer 8Mm
£1.09 £0.91

  42 Lock Pin 6Mm
Lock Pin 6Mm
HP94251-06000 Out of stock
Lock Pin 6Mm
£1.45 £1.21

  43 Lock Pin 8Mm
Lock Pin 8Mm
HP94251-08000 Out of stock
Lock Pin 8Mm
£1.75 £1.46

  44 Tube
Tube
HP95003-250-0220 Out of stock
Tube
£1.30 £1.08

  45 Bolt
Bolt
HP95701-08022-07 Out of stock
Bolt
£2.02 £1.68

  46 Bolt
Bolt
HP95701-08050-07 Out of stock
Bolt
£1.62 £1.35

  47 Flange Bolt
Flange Bolt
HP95701-080-7507 Out of stock
Flange Bolt
£2.40 £2.00
