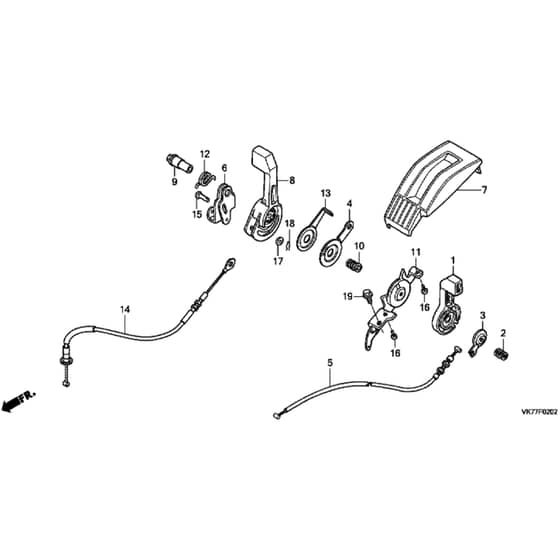

Honda HRX476C1 - PKEE - MASF 1130001- Throttle Lever (2) Diagram

Honda HRX476C1 - PKEE - MASF 1130001- Throttle Lever (2) Diagram
Honda HRX476C1 - PKEE - MASF 1130001- Throttle Lever (2) Diagram

Description

Honda HRX476C1 - PKEE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Throttle Lever
Throttle Lever
HP17851-VH7-N50 Out of stock
Throttle Lever
£12.90 £10.75

  2 Throttle Lever Spring
Throttle Lever Spring
HP17858-VA4-000 In stock
Throttle Lever Spring
£4.76 £3.97

  3 Seat Spring
Seat Spring
HP17859-VA3-800 Out of stock
Seat Spring
£7.62 £6.35

  4 Seat Spring
Seat Spring
HP17859-VA3-P00 Out of stock
Seat Spring
£6.77 £5.64

  5 Throttle Cable
Throttle Cable
HP17910-VK8-J51 Out of stock
Throttle Cable
£56.15 £46.79

  6 Change Arm Lever
Change Arm Lever
HP24412-VE0-J50 Out of stock
Change Arm Lever
£19.49 £16.24

  7 Control Cover
Control Cover
HP54231-VA3-800 Out of stock
Control Cover
£43.74 £36.45

  8 Change Lever
Change Lever
HP54311-VE0-J50 Out of stock
Change Lever
£20.03 £16.69

  9 Change Lever Nut
Change Lever Nut
HP54313-VA3-P00 Out of stock
Change Lever Nut
£9.46 £7.88

  10 Change Lever Spring
Change Lever Spring
HP54314-VA3-P00 Out of stock
Change Lever Spring
£3.24 £2.70

  11 Stopper Plate
Stopper Plate
HP54315-VA3-P40 Out of stock
Stopper Plate
£39.60 £33.00

  12 Arm Return Spring
Arm Return Spring
HP54318-VA3-P00 Out of stock
Arm Return Spring
£4.03 £3.36

  13 Thrust Plate
Thrust Plate
HP54319-VA3-P00 Out of stock
Thrust Plate
£16.97 £14.14

  14 Clutch Cable Kit
Clutch Cable Kit
HP06226-VK8-751 In stock
Clutch Cable Kit
£27.08 £22.57

  15 Pin 6 X 22
Pin 6 X 22
HP90752-VA3-P01 Out of stock
Pin 6 X 22
£3.72 £3.10

  16 Tapping Screw
Tapping Screw
HP93901-35210 Out of stock
Tapping Screw
£1.80 £1.50

  17 Plain Washer 6Mm
Plain Washer 6Mm
HP94101-06000 Out of stock
Plain Washer 6Mm
£1.40 £1.17

  18 Lock Pin 6Mm
Lock Pin 6Mm
HP94251-06000 Out of stock
Lock Pin 6Mm
£1.45 £1.21

  19 Bolt
Bolt
HP95701-0601000 Out of stock
Bolt
£1.69 £1.41


Description

Honda HRX476C1 - PKEE Rotary Mower Parts Diagram
