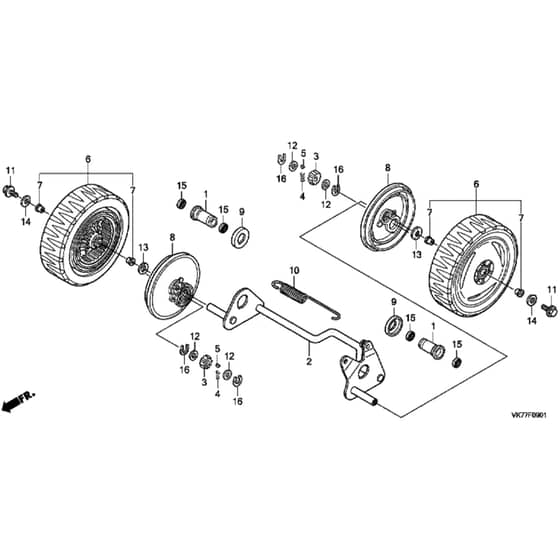

Honda HRX476C1 - PKEE - MASF 1130001- Rear Wheel HKEE, VKEE, VYEE Diagram

Name: Honda HRX476C1 - PKEE - MASF 1130001- Rear Wheel HKEE, VKEE, VYEE Diagram
SKU: hrx476c1_pkee_masf_1130001_rear_wheel_hkee_vkee_vyee-group
Price: 0.92 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX476C1 - PKEE - MASF 1130001- Rear Wheel HKEE, VKEE, VYEE Diagram

Description

Honda HRX476C1 - PKEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP41418-VK8-J50 Out of stock	Drive Shaft Collar	£26.77 £22.31
2	HP42310-VK8-J50 Out of stock	Axle Shaft	£83.50 £69.58
2	HP42310-VK8-M50 Out of stock	Axle Shaft	£83.50 £69.58
3	HP42661-VH3-850 Out of stock	Pinion Gear	£6.50 £5.42
4	HP42668-VE2-800 In stock	Pawl Spring	£1.10 £0.92
5	HP42672-VE2-800 In stock	Ratchet Key	£3.84 £3.20
6	HP42710-VK8-J50ZA In stock	Wheel	£43.24 £36.03
7	HP42716-VE0-800 In stock	Wheel Bush	£3.48 £2.90
8	HP42866-VE0-800 Out of stock	Wheel Cover	£5.26 £4.38
9	HP42868-VK8-750 Out of stock	Wheel Cap	£2.92 £2.43
10	HP42992-VK8-J50 Out of stock	Balance Spring	£45.10 £37.58
11	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
12	HP90452-166-600 Out of stock	Washer	£1.50 £1.25
13	HP90505-VA9-K40 Out of stock	Washer 13Mm	£1.75 £1.46
14	HP90506-VA9-K41 Out of stock	Wheel Washer	£4.14 £3.45
15	HP91051-VK8-750 Out of stock	Bearing	£5.17 £4.31
16	HP94510-12000 Out of stock	External Circlip 12Mm	£1.34 £1.12
