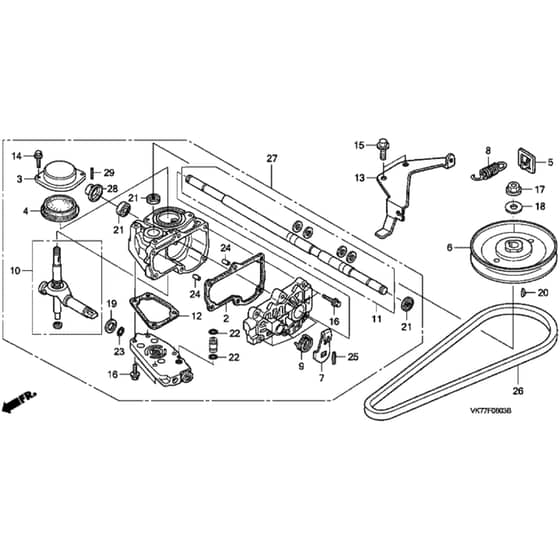

Honda HRX476C1 - HYEE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  2 Gasket
Gasket
HP21115-VE5-000 Out of stock
Gasket
£8.34 £6.95

  3 Oil Cap Assy
Oil Cap Assy
HP21230-VE5-A00 Out of stock
Oil Cap Assy
£24.31 £20.26

  4 Oil Cap O Ring
Oil Cap O Ring
HP21235-VE5-303 Out of stock
Oil Cap O Ring
£9.32 £7.77

  5 Tension Spring Plate
Tension Spring Plate
HP21557-VE0-800 Out of stock
Tension Spring Plate
£3.78 £3.15

  6 Pulley
Pulley
HP22420-VE0-J50 Out of stock
Pulley
£69.24 £57.70

  7 Control Arm
Control Arm
HP22533-VE5-A00 Out of stock
Control Arm
£16.30 £13.58

  8 Spring
Spring
HP42768-767-000 Out of stock
Spring
£6.30 £5.25

  9 Control Arm Return Spring
Control Arm Return Spring
HP24134-VE5-A00 Out of stock
Control Arm Return Spring
£2.94 £2.45

  10 Pump Set
Pump Set
HP25010-VE5-A00 Out of stock
Pump Set
£182.76 £152.30

  11 Shaft Set
Shaft Set
HP25013-VE5-A30 Out of stock
Shaft Set
£203.52 £169.60

  12 Gasket
Gasket
HP25513-VE5-000 Out of stock
Gasket
£9.78 £8.15

  13 Wire Holder
Wire Holder
HP51125-VE0-J50 Out of stock
Wire Holder
£19.02 £15.85

  14 Flange Bolt 5X12
Flange Bolt 5X12
HP90003-892-000 Out of stock
Flange Bolt 5X12
£2.23 £1.86

  15 Flange Bolt 6 X 16
Flange Bolt 6 X 16
HP90029-888-000 Out of stock
Flange Bolt 6 X 16
£4.36 £3.63

  16 Flange Bolt
Flange Bolt
HP90123-VA4-800 Out of stock
Flange Bolt
£3.24 £2.70

  17 Nut
Nut
HP90304-GA6-003 Out of stock
Nut
£4.92 £4.10

  18 Thrust Washer
Thrust Washer
HP90405-KV3-000 Out of stock
Thrust Washer
£3.58 £2.98

  19 Thrust Washer
Thrust Washer
HP90453-235-000 Out of stock
Thrust Washer
£2.84 £2.37

  20 Woodruff Key
Woodruff Key
HP90751-VE2-M00 Out of stock
Woodruff Key
£0.35 £0.29

  21 Oil Seal
Oil Seal
HP91204-KE8-003 Out of stock
Oil Seal
£5.80 £4.83

  22 O-Ring
O-Ring
HP91351-VE5-000 Out of stock
O-Ring
£2.36 £1.97

  23 O-Ring
O-Ring
HP91352-VE5-000 Out of stock
O-Ring
£3.08 £2.57

  24 Dowel Pin 8 X 10
Dowel Pin 8 X 10
HP94301-08100 Out of stock
Dowel Pin 8 X 10
£2.52 £2.10

  25 Spring Pin 4 X 22
Spring Pin 4 X 22
HP94305-40222 Out of stock
Spring Pin 4 X 22
£2.52 £2.10

  26 Belt
Belt
HP22431-VK8-J50 Out of stock
Belt
£30.94 £25.78

  27 Transmission Assy
Transmission Assy
HP20001-VE5-A32 Out of stock
Transmission Assy
£462.32 £385.27

  28 Grass Guard
Grass Guard
HP21912-VE5-A00 Out of stock
Grass Guard
£4.73 £3.94

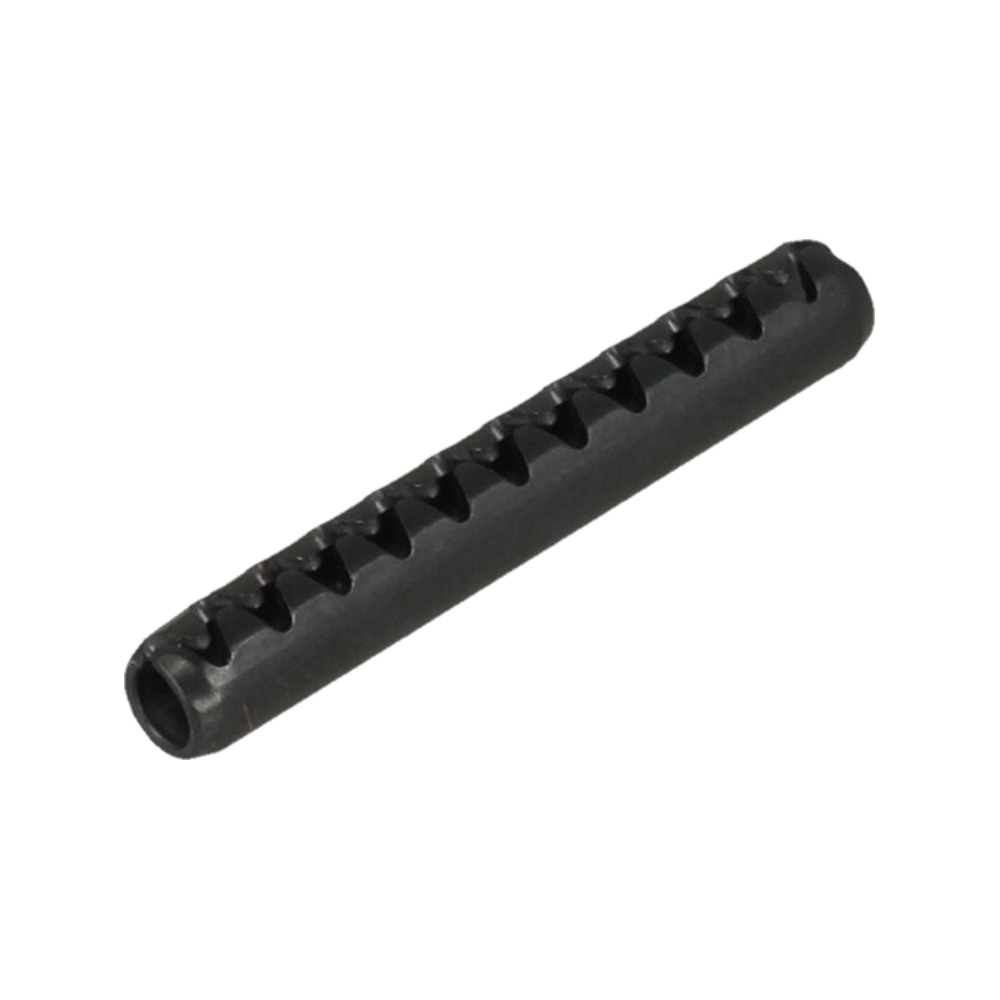

  29 Pin
Pin
HP90752-VE5-A00 Out of stock
Pin
£7.54 £6.28
