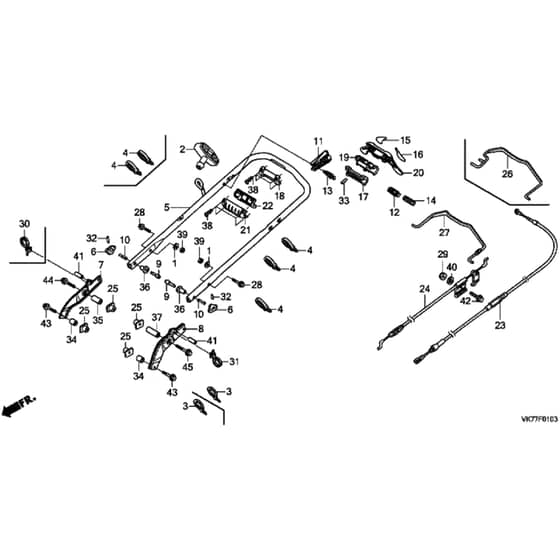

Honda HRX476C1 - HYEE - MASF 1130001- Handle Pipe (2) Diagram

Name: Honda HRX476C1 - HYEE - MASF 1130001- Handle Pipe (2) Diagram
SKU: hrx476c1_hyee_masf_1130001_handle_pipe_2_-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX476C1 - HYEE - MASF 1130001- Handle Pipe (2) Diagram

Description

Honda HRX476C1 - HYEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16577-ZG3-000 Out of stock	Spacer	£4.73 £3.94
2	HP28461-ZE7-T01 Out of stock	Recoil Starter Handle	£7.02 £5.85
3	HP32901-VE0-850 Out of stock	Cable Tie	£6.30 £5.25
4	HP32901-VK7-000 Out of stock	Cable Tie	£6.30 £5.25
5	HP53111-VK8-N50 Out of stock	Handle	£132.68 £110.57
5	HP53111-VK8-M50 Out of stock	Handle	£110.40 £92.00
6	HP53125-VL0-B00ZA Out of stock	Handle Grip	£17.17 £14.31
7	HP53131-VK8-J50 Out of stock	Handle Stay R H	£35.24 £29.37
8	HP53136-VK8-J50 Out of stock	Handle Stay L H	£35.24 £29.37
9	HP53158-VK8-J50 Out of stock	Pin	£14.82 £12.35
10	HP53367-VL0-B00 Out of stock	Handle Adjusting Spring	£1.26 £1.05
11	HP54315-VH7-K00 Out of stock	Lever Stopper	£40.86 £34.05
12	HP54315-VH7-L00 Out of stock	Select Lever	£3.96 £3.30
13	HP54316-VH7-K00 Out of stock	Lock Pin	£2.10 £1.75
14	HP54411-VH7-L00 Out of stock	Select Lever Spring	£0.66 £0.55
15	HP54421-VL0-L00 Out of stock	Pad Grip R H	£2.65 £2.21
16	HP54426-VL0-L00 Out of stock	Pad Grip L H	£2.65 £2.21
17	HP54434-VL0-B00 Out of stock	Upper Grip Bracket	£4.63 £3.86
18	HP54437-VL0-B00 Out of stock	Lower Grip Bracket	£4.63 £3.86
19	HP54442-VH7-L00 Out of stock	Upper Bracket Cover	£3.40 £2.83
20	HP54443-VH7-L00 Out of stock	Upper Clutch Grip	£9.56 £7.97
21	HP54446-VH7-L00 Out of stock	Lower Clutch Grip	£8.86 £7.38
22	HP54447-VH7-L00 Out of stock	Lower Bracket Cover	£3.40 £2.83
23	HP54510-VK8-M50 In stock	Clutch Cable	£18.35 £15.29
24	HP54530-VK8-N50 Out of stock	O.P.C Cable	£33.86 £28.22
25	HP61304-165-013 Out of stock	Head Light Set Nut	£5.57 £4.64
26	HP75161-VL0-C00ZA Out of stock	Roto Stop Lever	£18.08 £15.07
27	HP75191-VH7-K00ZA Out of stock	Brake Lever	£19.57 £16.31
28	HP90101-VK8-J50 Out of stock	Flange Bolt	£2.92 £2.43
29	HP90303-VG3-000 Out of stock	Lock Nut 6Mm	£0.62 £0.52
30	HP90672-SA0-003 Out of stock	Strap	£8.28 £6.90
32	HP90751-VL0-B00 Out of stock	Pin	£1.16 £0.97
33	HP91151-VL0-B00 Out of stock	Roller	£3.16 £2.63
34	HP91551-VE2-000 Out of stock	Lower Stay Collar	£2.74 £2.28
35	HP91551-VK8-J50 Out of stock	Collar	£9.84 £8.20
36	HP91551-VL0-B00 Out of stock	Handle Height Collar	£3.95 £3.29
37	HP91552-VK8-J50 Out of stock	Collar	£9.84 £8.20
38	HP93911-14280 Out of stock	Self Tapping Screw	£1.80 £1.50
39	HP94031-08070 Out of stock	Nut	£3.84 £3.20
40	HP94101-06800 Out of stock	Plain Washer 6Mm	£1.09 £0.91
41	HP95003-250-0220 Out of stock	Tube	£1.30 £1.08
42	HP95701-06045-00 Out of stock	Bolt	£1.72 £1.43
43	HP95701-08022-07 Out of stock	Bolt	£2.02 £1.68
44	HP95701-08050-07 Out of stock	Bolt	£1.62 £1.35
45	HP95701-080-7507 Out of stock	Flange Bolt	£2.40 £2.00
