Honda HRX476C - QXE - MASF 1000001- Rotary Blade Diagram

Name: Honda HRX476C - QXE - MASF 1000001- Rotary Blade Diagram
SKU: hrx476c_qxe_masf_1000001_rotary_blade-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX476C - QXE - MASF 1000001- Rotary Blade Diagram

Description

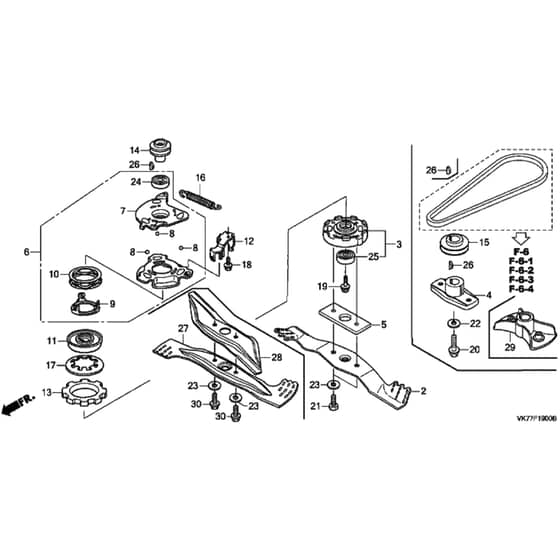

Honda HRX476C - QXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP72511-VK8-000 In stock	Blade	£45.74 £38.12
3	HP72600-VE1-G00 Out of stock	Blade Holder Assy	£75.24 £62.70
5	HP72617-VK8-000 Out of stock	Spacer Blade	£4.42 £3.68
6	HP75110-VE1-R00 Out of stock	Ball Control Plate	£84.20 £70.17
7	HP75111-VE1-G01 Out of stock	Control Plate	£19.44 £16.20
8	HP75117-VE1-G00 Out of stock	Bearing	£3.96 £3.30
9	HP75127-VE1-G00 Out of stock	Spring Hook Plate	£14.24 £11.87
10	HP75132-VE1-G00 Out of stock	Spring	£12.00 £10.00
11	HP75141-VE1-R00 Out of stock	Drive Disk	£29.63 £24.69
12	HP75143-VE1-G00 Out of stock	Return Spring Hook	£7.58 £6.32
13	HP75150-VE1-R00 In stock	Driven Disk Assy	£59.10 £49.25
14	HP75162-VE0-M00 Out of stock	Pulley	£69.24 £57.70
16	HP75185-VE1-G00 Out of stock	Clutch Return Spring	£10.18 £8.48
17	HP75183-VE1-G01 In stock	Clutch Spring	£11.16 £9.30
18	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
19	HP90101-VE1-G00 Out of stock	Flange Bolt 10 X 24	£2.99 £2.49
21	HP90105-VH3-K11 In stock	Flange Bolt 10 X 20	£2.58 £2.15
23	HP90481-430-000 In stock	Washer	£4.42 £3.68
25	HP91102-VA4-013 In stock	Bearing	£29.38 £24.48
26	HP94401-16150 In stock	Woodruff Key	£0.68 £0.57
