Description

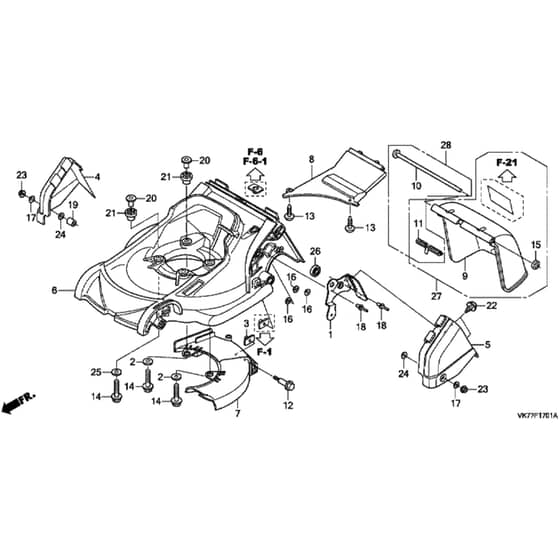

Honda HRX476C - QXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details

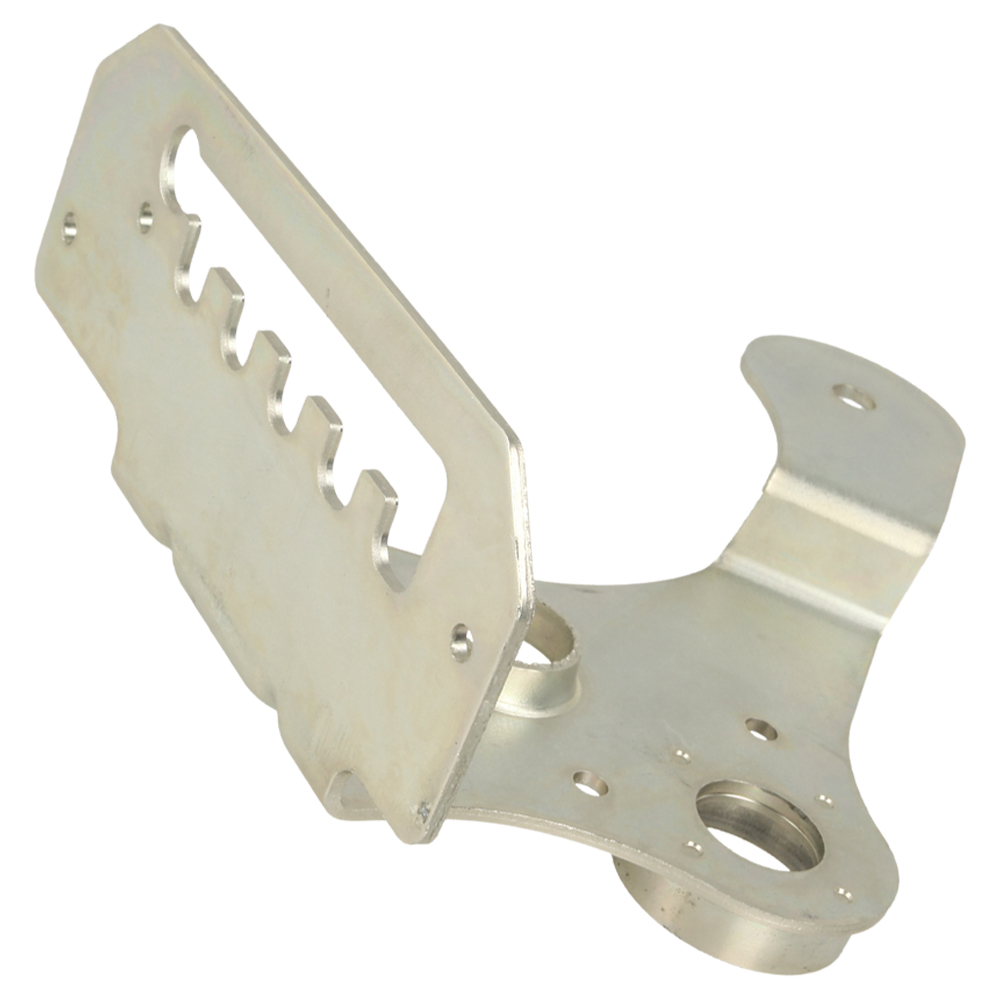

  1 Panel
Panel
HP42995-VK8-A50 Out of stock
Panel
£37.80 £31.50

  2 Washer
Washer
HP53101-GN5-900 Out of stock
Washer
£6.30 £5.25

  3 Nut
Nut
HP61304-958-003 Out of stock
Nut
£6.37 £5.31

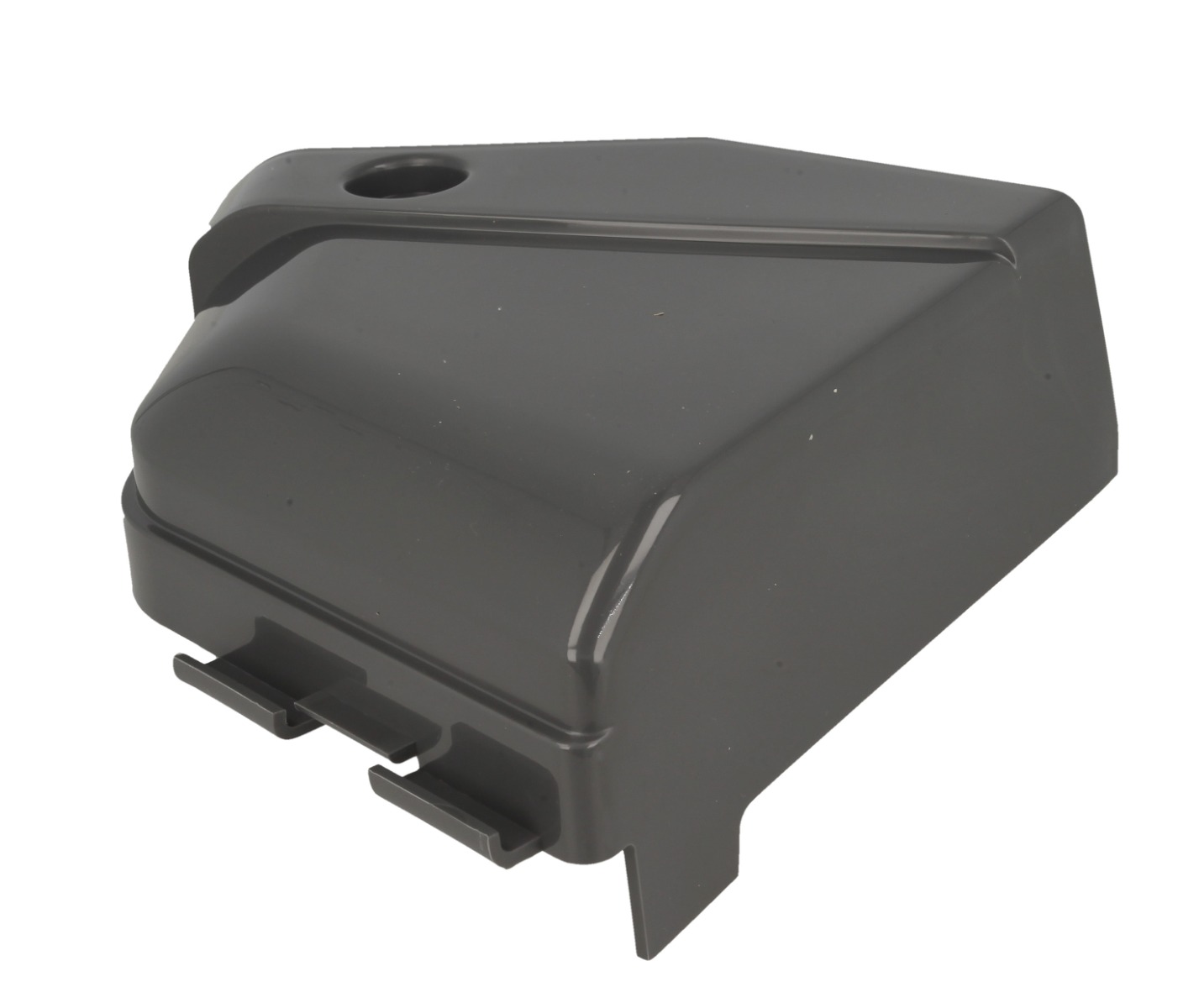

  4 Cover
Cover
HP63231-VK8-A50 Out of stock
Cover
£15.76 £13.13

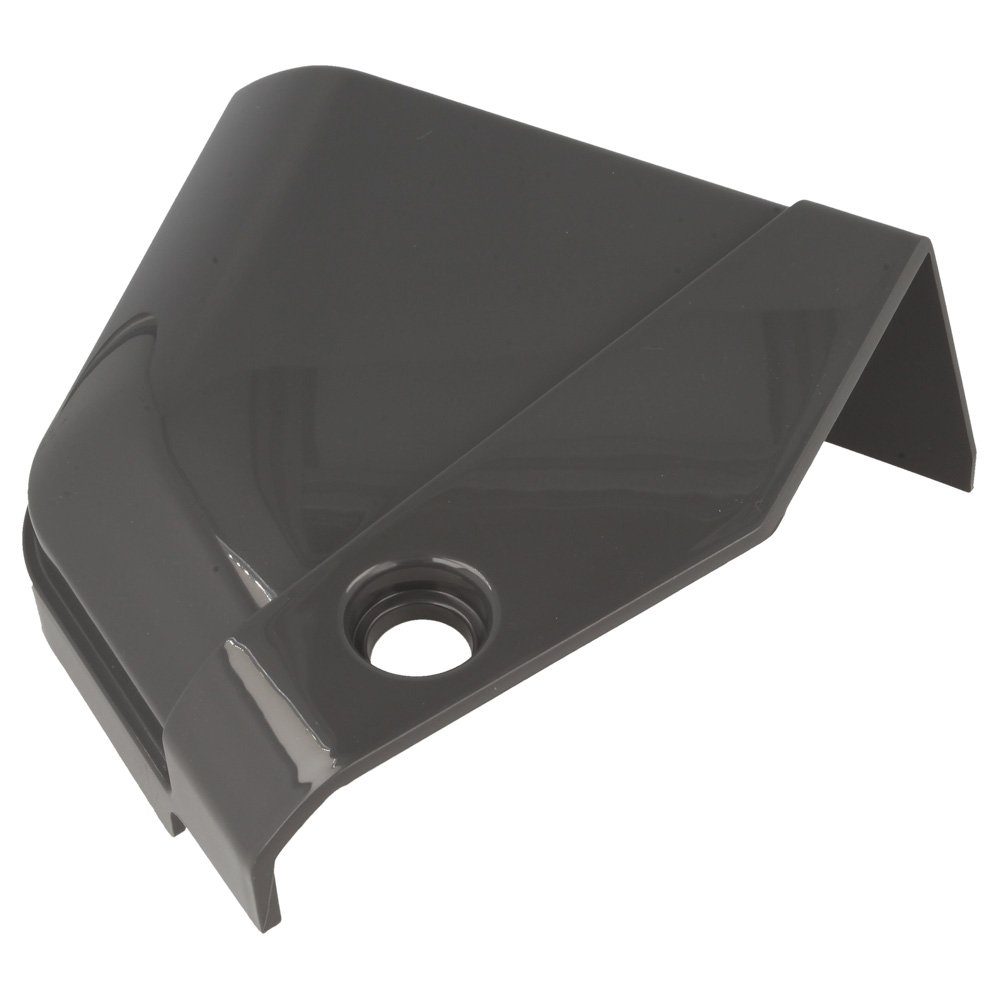

  5 Cover L H
Cover L H
HP63236-VK8-A50 Out of stock
Cover L H
£18.73 £15.61

  6 Deck
Deck
HP76111-VK8-A50 Out of stock
Deck
£161.76 £134.80

  7 Guide Scroll
Guide Scroll
HP76142-VK8-000 Out of stock
Guide Scroll
£54.48 £45.40

  8 Guide Plate
Guide Plate
HP76143-VK8-000 Out of stock
Guide Plate
£15.46 £12.88

  9 Discharge Guard
Discharge Guard
HP76281-VK8-010 Out of stock
Discharge Guard
£58.42 £48.68

  10 Discharge Guard Shaft
Discharge Guard Shaft
HP76282-VK8-020 Out of stock
Discharge Guard Shaft
£41.28 £34.40

  11 Guard Return Spring
Guard Return Spring
HP76284-VK8-010 In stock
Guard Return Spring
£30.04 £25.03

  12 Special Bolt 6Mm
Special Bolt 6Mm
HP90101-VA9-K40 Out of stock
Special Bolt 6Mm
£8.75 £7.29

  13 Screw
Screw
HP90101-VK8-000 Out of stock
Screw
£3.07 £2.56

  13 Tapping Screw
Tapping Screw
HP90101-VK8-010 Out of stock
Tapping Screw
£1.82 £1.52

  14 Engine Setting Bolt
Engine Setting Bolt
HP90102-VE0-000 Out of stock
Engine Setting Bolt
£3.04 £2.53

  15 Special Washer 8Mm
Special Washer 8Mm
HP90407-VA9-K40 In stock
Special Washer 8Mm
£1.56 £1.30

  16 Washer
Washer
HP90483-178-000 Out of stock
Washer
£3.43 £2.86

  17 Cover Setting Washer
Cover Setting Washer
HP90501-VE0-M10 In stock
Cover Setting Washer
£3.12 £2.60

  18 Rivet 4.8 X 17.2
Rivet 4.8 X 17.2
HP90852-VA9-K41 Out of stock
Rivet 4.8 X 17.2
£1.43 £1.19

  19 Collar
Collar
HP91556-VK8-000 Out of stock
Collar
£4.73 £3.94

  20 Engine Bed Collar
Engine Bed Collar
HP91651-VE0-010 Out of stock
Engine Bed Collar
£4.86 £4.05

  20 Engine Bed Collar
Engine Bed Collar
HP91651-VE0-750 Out of stock
Engine Bed Collar
£8.14 £6.78

  21 Adiabatic Collar
Adiabatic Collar
HP91652-VE0-000 In stock
Adiabatic Collar
£7.30 £6.08

  22 Screw
Screw
HP93903-25210 Out of stock
Screw
£1.80 £1.50

  23 Nut
Nut
HP94002-080000S Out of stock
Nut
£3.85 £3.21

  24 Plain Washer 8Mm
Plain Washer 8Mm
HP94103-08000 Out of stock
Plain Washer 8Mm
£0.48 £0.40

  25 Plain Washer 8Mm
Plain Washer 8Mm
HP94103-08800 Out of stock
Plain Washer 8Mm
£1.09 £0.91

  26 Bearing
Bearing
HP96150-6001010 Out of stock
Bearing
£6.24 £5.20

  27 Guard Spring Kit
Guard Spring Kit
HP06763-VK8-305 Out of stock
Guard Spring Kit
£12.34 £10.28
