Honda HRX426C - SXE - MATF 1030001- Front Wheel Diagram

Description

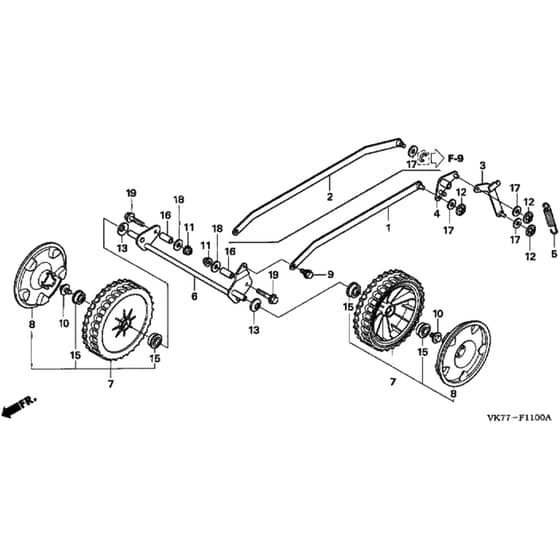

Honda HRX426C - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP42963-VK7-000 Out of stock	Adjuster Arm	£24.36 £20.30
6	HP44310-VK7-000 Out of stock	Front Axle	£44.10 £36.75
7	HP44700-VK8-000 Out of stock	Wheel	£37.80 £31.50
8	HP44719-VK8-000 Out of stock	Hub Cap	£4.38 £3.65
9	HP90103-VK8-000 Out of stock	Special Bolt 6 X 11	£1.73 £1.44
10	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
11	HP90115-659-003 Out of stock	Nut	£6.30 £5.25
13	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
15	HP91053-VK8-000 Out of stock	Bearing	£5.05 £4.21
16	HP91905-VA9-000 Out of stock	Adjusting Collar	£4.13 £3.44
17	HP94101-08000 Out of stock	Plain Washer 8Mm	£1.09 £0.91
18	HP94103-08000 Out of stock	Plain Washer 8Mm	£0.48 £0.40
19	HP95801-0805000 Out of stock	Flange Bolt 8 X 50	£2.60 £2.17
