Honda HRX426C - RXE - MATF 1030001- Rotary Blade Diagram

Honda HRX426C - RXE - MATF 1030001- Rotary Blade Diagram
Honda HRX426C - RXE - MATF 1030001- Rotary Blade Diagram

Description

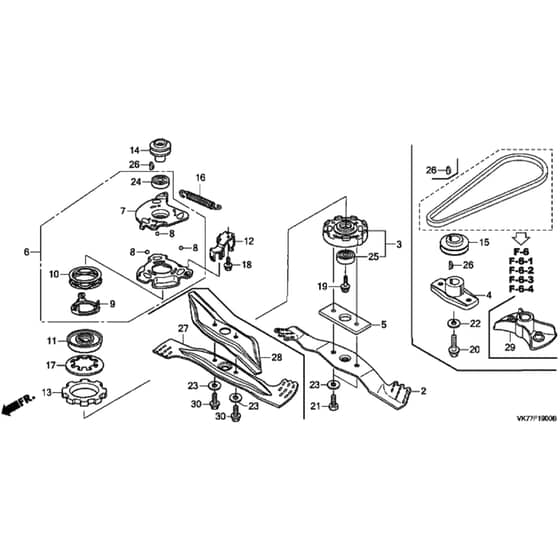

Honda HRX426C - RXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  2 Blade
Blade
HP72511-VK7-000 In stock
Blade
£34.92 £29.10

  3 Blade Holder Assy
Blade Holder Assy
HP72600-VE1-G00 Out of stock
Blade Holder Assy
£75.24 £62.70

  5 Spacer Blade
Spacer Blade
HP72617-VK8-000 Out of stock
Spacer Blade
£4.42 £3.68

  6 Ball Control Plate
Ball Control Plate
HP75110-VE1-R00 In stock
Ball Control Plate
£84.90 £70.75

  7 Control Plate
Control Plate
HP75111-VE1-G01 Out of stock
Control Plate
£19.44 £16.20

  8 Bearing
Bearing
HP75117-VE1-G00 Out of stock
Bearing
£3.96 £3.30

  9 Spring Hook Plate
Spring Hook Plate
HP75127-VE1-G00 Out of stock
Spring Hook Plate
£16.34 £13.62

  10 Spring
Spring
HP75132-VE1-G00 Out of stock
Spring
£12.00 £10.00

  11 Drive Disk
Drive Disk
HP75141-VE1-R00 Out of stock
Drive Disk
£29.63 £24.69

  12 Return Spring Hook
Return Spring Hook
HP75143-VE1-G00 Out of stock
Return Spring Hook
£7.58 £6.32

  13 Driven Disk Assy
Driven Disk Assy
HP75150-VE1-R00 In stock
Driven Disk Assy
£59.10 £49.25

  14 Pulley
Pulley
HP75162-VE0-M00 Out of stock
Pulley
£69.24 £57.70

  16 Clutch Return Spring
Clutch Return Spring
HP75185-VE1-G00 Out of stock
Clutch Return Spring
£10.18 £8.48

  17 Clutch Spring
Clutch Spring
HP75183-VE1-G01 In stock
Clutch Spring
£11.16 £9.30

  18 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP90014-952-000 Out of stock
Flange Bolt 6 X 14
£3.95 £3.29

  19 Flange Bolt 10 X 24
Flange Bolt 10 X 24
HP90101-VE1-G00 Out of stock
Flange Bolt 10 X 24
£2.99 £2.49

  21 Flange Bolt 10 X 20
Flange Bolt 10 X 20
HP90105-VH3-K11 In stock
Flange Bolt 10 X 20
£2.58 £2.15

  23 Washer
Washer
HP90481-430-000 In stock
Washer
£4.42 £3.68

  25 Bearing
Bearing
HP91102-VA4-013 In stock
Bearing
£29.38 £24.48

  26 Woodruff Key
Woodruff Key
HP94401-16150 In stock
Woodruff Key
£0.68 £0.57


Description

Honda HRX426C - RXE Rotary Mower Parts Diagram
