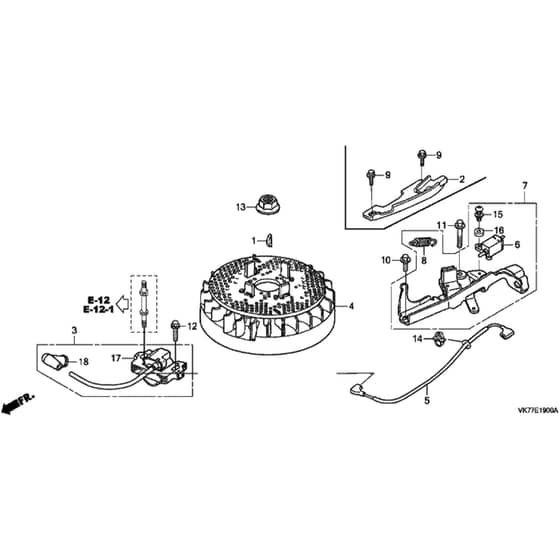

Honda HRX426C - RXE - MATF 1030001- Flywheel Diagram

Honda HRX426C - RXE - MATF 1030001- Flywheel Diagram
Honda HRX426C - RXE - MATF 1030001- Flywheel Diagram

Description

Honda HRX426C - RXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Woodruff Key
Woodruff Key
HP13331-357-000 Out of stock
Woodruff Key
£9.46 £7.88

  2 Plate
Plate
HP19612-Z1L-000 Out of stock
Plate
£7.40 £6.17

  2 Side Plate
Side Plate
HP19612-ZM0-J20 Out of stock
Side Plate
£11.03 £9.19

  3 Ignition Coil Assy
Ignition Coil Assy
HP30500-ZL8-014 Out of stock
Ignition Coil Assy
£86.28 £71.90

  4 Flywheel Assy
Flywheel Assy
HP31105-ZL8-000 Out of stock
Flywheel Assy
£144.72 £120.60

  9 Flange Bolt 6 X 12
Flange Bolt 6 X 12
HP90013-883-000 Out of stock
Flange Bolt 6 X 12
£4.63 £3.86

  12 Flange Bolt 6 X 20
Flange Bolt 6 X 20
HP90022-888-010 Out of stock
Flange Bolt 6 X 20
£2.93 £2.44

  13 Speical Nut 14Mm
Speical Nut 14Mm
HP90201-878-003 Out of stock
Speical Nut 14Mm
£7.60 £6.33


Description

Honda HRX426C - RXE Rotary Mower Parts Diagram
