Honda HRX426C - RXE - MATF 1030001- Control Diagram

Description

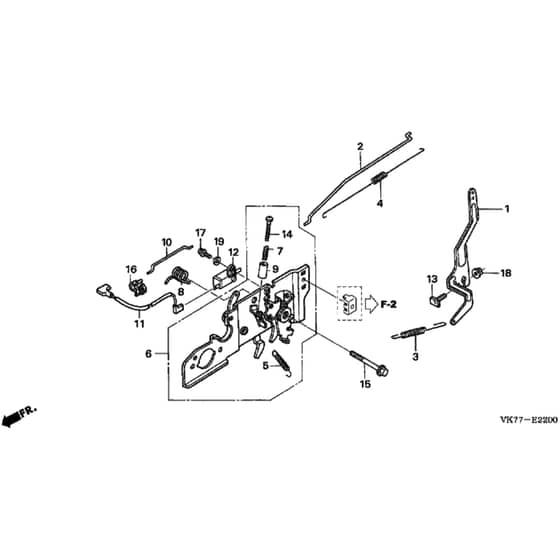

Honda HRX426C - RXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16551-ZM0-010 Out of stock	Governor Arm	£11.04 £9.20
2	HP16555-ZM0-000 Out of stock	Governor Rod	£8.99 £7.49
3	HP16561-Z1L-870 Out of stock	Governor Spring	£4.02 £3.35
4	HP16562-ZM0-000 Out of stock	Throttle Return Spring	£4.50 £3.75
5	HP16576-ZE7-300 Out of stock	Lever Spring	£5.28 £4.40
6	HP16580-ZM0-882 Out of stock	Control Base Assy	£38.68 £32.23
7	HP16584-883-300 Out of stock	Control Adjusting Spring	£5.14 £4.28
8	HP16593-ZM0-000 Out of stock	Sprig Lever	£6.30 £5.25
9	HP16599-ZG1-M10 Out of stock	Stopper Collar	£3.11 £2.59
10	HP16674-ZM0-000 Out of stock	Choke Rod	£3.72 £3.10
11	HP32195-ZM0-800 Out of stock	Cord Stop	£11.03 £9.19
12	HP35120-ZL8-003 Out of stock	Engine Stop Switch Assy	£13.03 £10.86
13	HP90015-ZE5-010 Out of stock	Governor Arm Bolt	£3.56 £2.97
14	HP90016-ZE7-W00 Out of stock	Recessed Screw	£3.18 £2.65
15	HP90016-ZM0-000 Out of stock	Flange Bolt	£2.47 £2.06
16	HP90681-959-003 Out of stock	Cable Clip	£1.02 £0.85
17	HP93892-0401200 Out of stock	Screw	£1.90 £1.58
18	HP94050-06000 In stock	Flange Nut 6Mm	£4.01 £3.34
19	HP94103-040-00 Out of stock	Washer 4Mm	£0.91 £0.76
