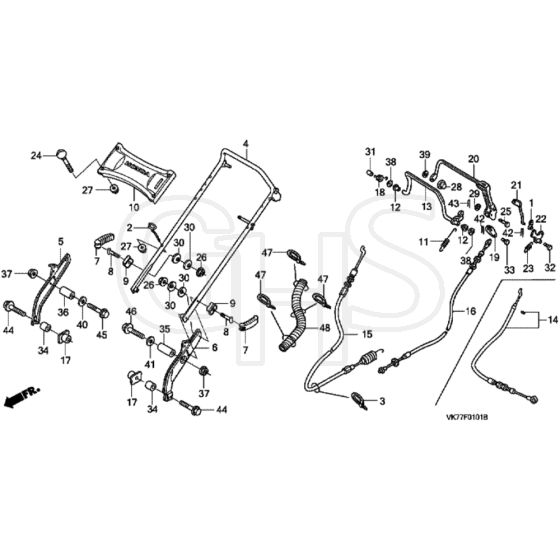

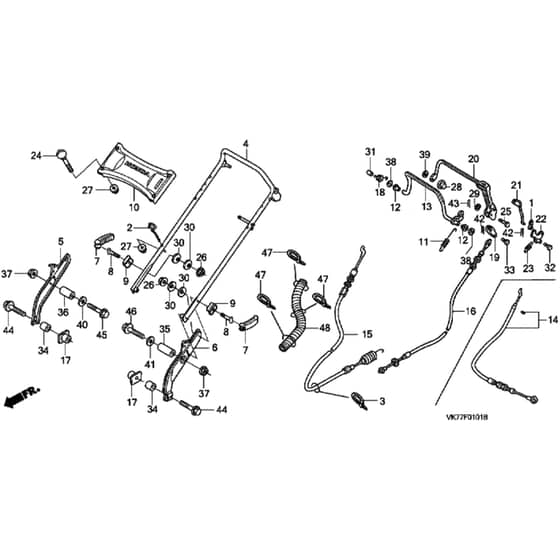

Honda HRX426C - QXE - MATF 1030001- Handle Pipe (2) Diagram

Name: Honda HRX426C - QXE - MATF 1030001- Handle Pipe (2) Diagram
SKU: hrx426c_qxe_matf_1030001_handle_pipe_2_-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX426C - QXE - MATF 1030001- Handle Pipe (2) Diagram

Description

Honda HRX426C - QXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000 Out of stock	Rod Joint	£8.52 £7.10
2	HP28475-VK8-000 Out of stock	Rope Guide	£4.86 £4.05
3	HP32901-VE0-850 Out of stock	Cable Tie	£6.30 £5.25
4	HP53110-VK7-010 Out of stock	Handle	£124.14 £103.45
5	HP53130-VK7-A50 Out of stock	Handle Stay	£34.44 £28.70
7	HP53142-VK8-010 Out of stock	Adjusting Lever Handle	£4.82 £4.02
8	HP53143-VK8-000 Out of stock	Handle Adjuster Shaft	£3.35 £2.79
9	HP53147-VK8-010 Out of stock	Lever Holder	£3.38 £2.82
10	HP53171-VK8-000 Out of stock	Handle Panel	£34.49 £28.74
11	HP54411-VA9-K40 Out of stock	Clutch Spring	£7.24 £6.03
12	HP54412-952-770 Out of stock	Clutch Lever Bush	£4.62 £3.85
13	HP54415-VK8-750 Out of stock	Clutch Cable	£37.80 £31.50
14	HP54510-VK7-A53 In stock	Clutch Cable	£14.56 £12.13
16	HP54530-VK7-013 In stock	Roto-Stop Cable	£18.78 £15.65
17	HP61304-165-013 Out of stock	Head Light Set Nut	£5.57 £4.64
18	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.56 £6.30
19	HP75128-VE0-L00 Out of stock	Cable Arm	£14.41 £12.01
20	HP75160-VK8-010 Out of stock	Roto-Stop Lever Assy	£46.50 £38.75
21	HP75165-VE0-L00 Out of stock	Ratchet Push Rod	£9.96 £8.30
22	HP75166-VE0-L00 Out of stock	Lock Lever	£7.10 £5.92
23	HP75168-VA4-000 Out of stock	Pawl Spring	£5.51 £4.59
24	HP90102-VK8-010 Out of stock	Pan Head Bolt 6 X 34	£2.69 £2.24
25	HP90106-VA4-800 Out of stock	Clutch Lever Pin	£9.95 £8.29
26	HP90115-659-003 Out of stock	Nut	£6.30 £5.25
27	HP90303-VG3-000 Out of stock	Lock Nut 6Mm	£0.62 £0.52
29	HP90407-952-300 Out of stock	Special Washer 6Mm	£4.10 £3.42
30	HP90502-VK8-000 Out of stock	Spring Washer 8Mm	£1.02 £0.85
31	HP90552-VA3-J00 Out of stock	Collar 8 X 11 X 13.5	£5.89 £4.91
32	HP90753-VA3-J00 Out of stock	Lever Hinge Lock Pin	£4.13 £3.44
33	HP90754-VA9-P40 Out of stock	Cable Joint Pin	£3.08 £2.57
34	HP91551-VE2-000 Out of stock	Lower Stay Collar	£2.74 £2.28
35	HP91554-VK7-000 Out of stock	Collar	£7.80 £6.50
36	HP91905-VA9-000 Out of stock	Adjusting Collar	£4.13 £3.44
37	HP94050-08000 Out of stock	Flange Nut 8Mm	£3.84 £3.20
38	HP94101-08000 Out of stock	Plain Washer 8Mm	£1.09 £0.91
40	HP94103-08000 Out of stock	Plain Washer 8Mm	£0.48 £0.40
42	HP94251-06000 Out of stock	Lock Pin 6Mm	£1.45 £1.21
43	HP94251-08000 Out of stock	Lock Pin 8Mm	£1.75 £1.46
44	HP95701-0802200 Out of stock	Flange Bolt 8 X 22	£2.26 £1.88
45	HP95801-0804500 Out of stock	Flange Bolt 8 X 45	£2.47 £2.06
46	HP95801-0806500 Out of stock	Flange Bolt 8 X 65	£2.52 £2.10
47	HP32901-VK7-000 Out of stock	Cable Tie	£6.30 £5.25
48	HP54558-VK7-000 Out of stock	Tube	£12.46 £10.38
