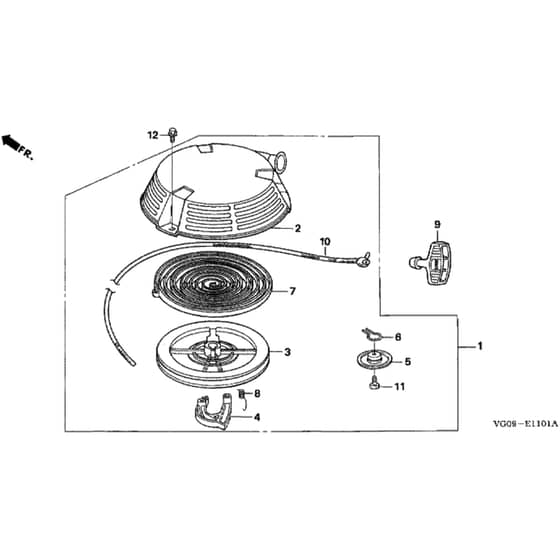

Honda HRH536K3 - QXE - MZBU 8200001-8299999 Recoil Starter Diagram

Description

Honda HRH536K3 - QXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28400-Z1V-J51ZA Out of stock	Recoil Assy	£123.82 £103.18
2	HP28410-ZE7-003ZD Out of stock	Recoil Starter Case	£138.24 £115.20
3	HP28420-ZE7-003 Out of stock	Recoil Pulley	£51.16 £42.63
4	HP28422-896-010 In stock	Starter Pawl	£13.84 £11.53
5	HP28431-896-000 Out of stock	Friction Plate	£8.86 £7.38
6	HP28441-896-000 Out of stock	Friction Spring	£5.94 £4.95
7	HP28442-896-700 In stock	Recoil Spring	Was £32.54 £27.12 Special Price £23.42 £19.52
8	HP28443-896-000 Out of stock	Return Spring	£5.94 £4.95
9	HP28461-ZE7-T01 Out of stock	Recoil Starter Handle	£7.02 £5.85
10	HP28462-ZE7-V11 Out of stock	Recoil Starter Rope	£17.57 £14.64
11	HP92101-060120H In stock	Bolt	Was £1.34 £1.12 Special Price £0.95 £0.79
12	HP95701-0600800 In stock	Flange Bolt 6X8	£1.45 £1.21
