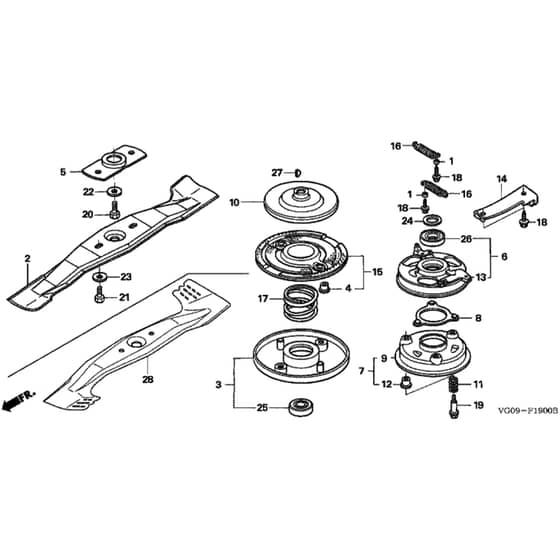

Honda HRH536K2 - QXE - MZBU 8200001-9999999 Rotary Blade Diagram

Honda HRH536K2 - QXE - MZBU 8200001-9999999 Rotary Blade Diagram
Honda HRH536K2 - QXE - MZBU 8200001-9999999 Rotary Blade Diagram

Description

Honda HRH536K2 - QXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Fan Collar
Fan Collar
HP19512-883-000 Out of stock
Fan Collar
£2.36 £1.97

  2 Blade
Blade
HP72511-VG0-C51 In stock
Blade
£44.80 £37.33

  3 Blade Holder Assy
Blade Holder Assy
HP72600-VF0-750 In stock
Blade Holder Assy
£79.81 £66.51

  4 Blade Holder Bush
Blade Holder Bush
HP72613-VA4-000 Out of stock
Blade Holder Bush
£6.91 £5.76

  5 Blade Holder Plate
Blade Holder Plate
HP72615-VA5-841 Out of stock
Blade Holder Plate
£19.02 £15.85

  6 Ball Control Plate
Ball Control Plate
HP75090-VA4-030 Out of stock
Ball Control Plate
£173.32 £144.43

  7 Brake Assy
Brake Assy
HP75100-VA4-010 In stock
Brake Assy
£122.08 £101.73

  8 Ball Retainer
Ball Retainer
HP75110-VA4-000 Out of stock
Ball Retainer
£12.72 £10.60

  9 Brake Disk
Brake Disk
HP75120-VA4-010 In stock
Brake Disk
Was £117.00 £97.50 Special Price £35.99 £29.99

  10 Drive Disk
Drive Disk
HP75130-VA4-000 Out of stock
Drive Disk
£129.60 £108.00

  11 Brake Holder Spring
Brake Holder Spring
HP75132-VA4-000 Out of stock
Brake Holder Spring
£3.83 £3.19

  12 Brake Holder Bush
Brake Holder Bush
HP75133-VA4-000 Out of stock
Brake Holder Bush
£5.82 £4.85

  13 Ball Control Plate
Ball Control Plate
HP75140-VA4-020 Out of stock
Ball Control Plate
£117.12 £97.60

  14 Cable Hook Plate
Cable Hook Plate
HP75142-VB3-803 Out of stock
Cable Hook Plate
£7.78 £6.48

  15 Driven Disk Assy
Driven Disk Assy
HP75150-VA3-J01 Out of stock
Driven Disk Assy
£111.84 £93.20

  16 Clutch Return Spring
Clutch Return Spring
HP75182-VA3-J00 Out of stock
Clutch Return Spring
£7.24 £6.03

  17 Clutch Spring
Clutch Spring
HP75183-VA3-J00 Out of stock
Clutch Spring
£17.26 £14.38

  18 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP90014-952-000 Out of stock
Flange Bolt 6 X 14
£3.95 £3.29

  19 Special Bolt 6Mm
Special Bolt 6Mm
HP90021-VA4-000 Out of stock
Special Bolt 6Mm
£5.76 £4.80

  20 Bolt Hex 10 X 25
Bolt Hex 10 X 25
HP90105-VA3-J01 In stock
Bolt Hex 10 X 25
£3.90 £3.25

  21 Blade Bolt
Blade Bolt
HP90105-960-710 Out of stock
Blade Bolt
£2.65 £2.21

  22 Washer 10 X 30 X 3.5T
Washer 10 X 30 X 3.5T
HP90401-880-000 Out of stock
Washer 10 X 30 X 3.5T
£12.11 £10.09

  23 Washer
Washer
HP90481-430-000 In stock
Washer
£4.42 £3.68

  24 Thrust Washer
Thrust Washer
HP90501-952-010 Out of stock
Thrust Washer
£6.30 £5.25

  25 Bearing
Bearing
HP91102-VA4-013 In stock
Bearing
£29.38 £24.48

  26 Bearing
Bearing
HP91103-VA4-003 Out of stock
Bearing
£24.83 £20.69

  27 Woodruff Key
Woodruff Key
HP94401-16150 In stock
Woodruff Key
£0.68 £0.57


Description

Honda HRH536K2 - QXE Rotary Mower Parts Diagram
