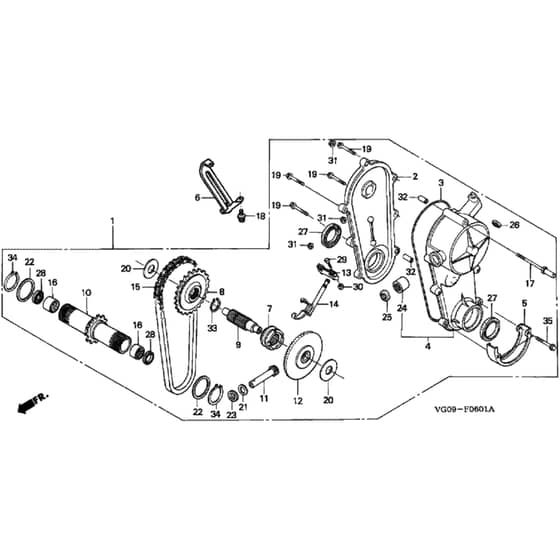

Honda HRH536 - QXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Transmission Assy
Transmission Assy
HP20001-VG0-A52 In stock
Transmission Assy
£480.00 £400.00

  2 Transmission Case R H
Transmission Case R H
HP21511-VA5-700 Out of stock
Transmission Case R H
£76.92 £64.10

  3 Transmission Case O Ring
Transmission Case O Ring
HP21592-VA5-701 Out of stock
Transmission Case O Ring
£7.44 £6.20

  4 Transmission Case Assy L H
Transmission Case Assy L H
HP21610-VA5-700 Out of stock
Transmission Case Assy L H
£172.80 £144.00

  5 Case Protector
Case Protector
HP21911-VA5-700 In stock
Case Protector
£15.66 £13.05

  6 Transmission Guide
Transmission Guide
HP22511-VB3-B50 Out of stock
Transmission Guide
£28.90 £24.08

  7 Clutch
Clutch
HP22549-VF0-750 Out of stock
Clutch
£48.48 £40.40

  8 Drive Sprocket
Drive Sprocket
HP23120-VA5-701 Out of stock
Drive Sprocket
£64.32 £53.60

  9 Countershaft
Countershaft
HP23221-VA5-701 Out of stock
Countershaft
£55.87 £46.56

  10 Drive Sprocket
Drive Sprocket
HP23372-VA5-701 Out of stock
Drive Sprocket
£115.20 £96.00

  11 Bevel Pinion
Bevel Pinion
HP23411-VB3-801 Out of stock
Bevel Pinion
£52.42 £43.68

  13 Clutch Arm
Clutch Arm
HP23436-VA5-701 In stock
Clutch Arm
£13.02 £10.85

  14 Shift Shaft
Shift Shaft
HP23440-VA4-801 Out of stock
Shift Shaft
£27.67 £23.06

  15 Roller Chain
Roller Chain
HP23861-VA5-701 In stock
Roller Chain
£66.56 £55.47

  16 Needle Bearing
Needle Bearing
HP41103-935-003 In stock
Needle Bearing
£15.16 £12.63

  17 Bolt Guide
Bolt Guide
HP90012-VA5-700 Out of stock
Bolt Guide
£6.89 £5.74

  18 Flange Bolt 6 X 12
Flange Bolt 6 X 12
HP90013-883-000 Out of stock
Flange Bolt 6 X 12
£4.63 £3.86

  19 Flange Bolt 6 X 25
Flange Bolt 6 X 25
HP90121-952-000 Out of stock
Flange Bolt 6 X 25
£3.07 £2.56

  20 Thrust Washer 12Mm
Thrust Washer 12Mm
HP90452-VB5-800 Out of stock
Thrust Washer 12Mm
£5.45 £4.54

  21 Washer
Washer
HP90452-187-000 Out of stock
Washer
£4.73 £3.94

  22 Thrust Washer 28Mm
Thrust Washer 28Mm
HP90458-729-920 Out of stock
Thrust Washer 28Mm
£8.26 £6.88

  23 Bevel Pinion Shim
Bevel Pinion Shim
HP90483-VB5-800 Out of stock
Bevel Pinion Shim
£3.94 £3.28

  23 Bevel Pinion Shim
Bevel Pinion Shim
HP90482-VB5-800 Out of stock
Bevel Pinion Shim
£3.94 £3.28

  23 Bevel Pinion Shim
Bevel Pinion Shim
HP90481-VB5-800 Out of stock
Bevel Pinion Shim
£3.94 £3.28

  24 Needle Bearing
Needle Bearing
HP91012-VB5-801 Out of stock
Needle Bearing
£24.00 £20.00

  25 Oil Seal
Oil Seal
HP91202-KA3-711 Out of stock
Oil Seal
£3.70 £3.08

  26 Oil Seal 8 X 14 X 5
Oil Seal 8 X 14 X 5
HP91201-ZE9-003 Out of stock
Oil Seal 8 X 14 X 5
£4.79 £3.99

  27 Oil Seal 28 X 38 X 6
Oil Seal 28 X 38 X 6
HP91251-VA5-701 In stock
Oil Seal 28 X 38 X 6
£8.48 £7.07

  28 Dust Seal
Dust Seal
HP91252-VA5-701 In stock
Dust Seal
£8.26 £6.88

  29 Screw Pan 5X20
Screw Pan 5X20
HP93500-050200A Out of stock
Screw Pan 5X20
£1.55 £1.29

  30 Hex Nut 5Mm
Hex Nut 5Mm
HP94001-050000S Out of stock
Hex Nut 5Mm
£3.61 £3.01

  31 Flange Nut 6Mm
Flange Nut 6Mm
HP94050-06000 In stock
Flange Nut 6Mm
£4.01 £3.34

  32 Dowel Pin 8 X 14
Dowel Pin 8 X 14
HP94301-08140 Out of stock
Dowel Pin 8 X 14
£3.20 £2.67

  33 External Circlip 18Mm
External Circlip 18Mm
HP94510-18000 Out of stock
External Circlip 18Mm
£1.50 £1.25

  34 External Circlip 28Mm
External Circlip 28Mm
HP94510-28000 In stock
External Circlip 28Mm
£3.78 £3.15

  35 Bolt
Bolt
HP95701-0603200 Out of stock
Bolt
£1.63 £1.36
