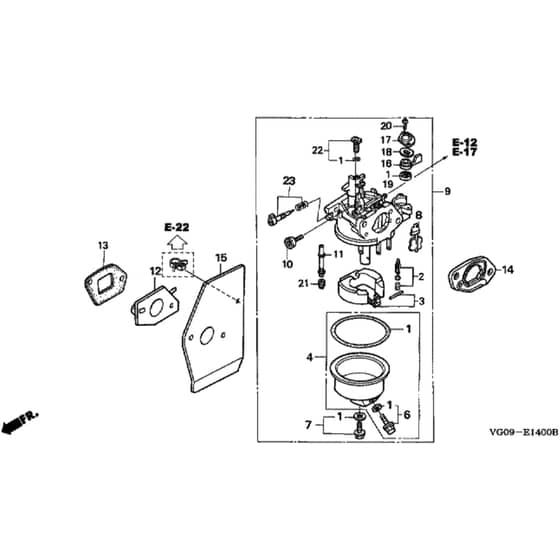

Honda HRH536 - QXE - MZBU 8000001-8099999 Carburettor Diagram

Description

Honda HRH536 - QXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16010-ZE0-025 Out of stock	Gasket Set	£24.02 £20.02
2	HP16011-ZE0-005 Out of stock	Float Valve Set	£37.46 £31.22
3	HP16013-ZE0-005 Out of stock	Float Set	£36.17 £30.14
4	HP16015-ZE0-831 Out of stock	Float Bowl Set	£47.88 £39.90
6	HP16024-ZE1-811 Out of stock	Drain Screw Set	£14.40 £12.00
7	HP16028-ZK7-S91 Out of stock	Screw Set	£16.45 £13.71
8	HP16045-ZE7-005 Out of stock	Choke Set	£44.16 £36.80
9	HP16100-ZE7-W21 Out of stock	Carburettor Assy	£149.16 £124.30
10	HP16124-ZE0-005 Out of stock	Throttle Stop Screw	£13.70 £11.42
11	HP16166-ZE7-W10 Out of stock	Main Nozzle	£48.28 £40.23
12	HP16211-ZE7-000 Out of stock	Carburettor Insulator	£13.12 £10.93
13	HP16212-ZE7-M10 In stock	Insulator Gasket	£2.54 £2.12
14	HP16220-ZE6-010 Out of stock	Carburettor Spacer	£7.99 £6.66
15	HP16221-ZE7-M11 In stock	Carburettor Gasket	£23.50 £19.58
16	HP16953-ZE1-812 Out of stock	Fuel Tap Lever	£14.03 £11.69
17	HP16954-ZE1-812 Out of stock	Lever Setting Plate	£8.52 £7.10
18	HP16956-ZE1-811 Out of stock	Valve Lever Spring	£3.36 £2.80
19	HP16957-ZE1-812 Out of stock	Fuel Tap Gasket	£5.30 £4.42
20	HP93500-030060H Out of stock	Pan Screw 3 X 6	£0.59 £0.49
21	HP99101-ZH8-0600 Out of stock	Jet	£6.60 £5.50
21	HP99101-ZH8-0650 Out of stock	Jet	£6.60 £5.50
21	HP99101-ZH8-0620 Out of stock	Main Jet	£12.60 £10.50
23	HP16016-ZH7-W01 Out of stock	Pilot Screw Set	£22.52 £18.77
