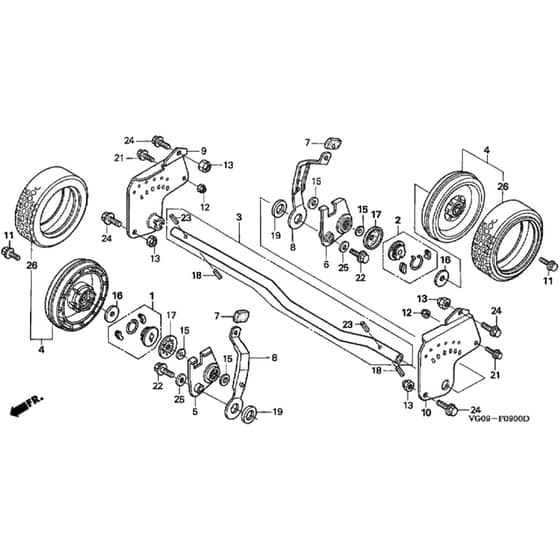

Honda HRH536 - HXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Holder Assy
Holder Assy
HP23510-VB5-803 Out of stock
Holder Assy
£62.04 £51.70

  2 Ratchet Holder Assy
Ratchet Holder Assy
HP23520-VB5-803 Out of stock
Ratchet Holder Assy
£58.73 £48.94

  3 Rear Axle Shaft
Rear Axle Shaft
HP42651-VG0-000 Out of stock
Rear Axle Shaft
£45.67 £38.06

  4 Rear Wheel Assy
Rear Wheel Assy
HP42810-VB5-F43ZB Out of stock
Rear Wheel Assy
£182.88 £152.40

  5 Adjuster Arm Assy Rear R H
Adjuster Arm Assy Rear R H
HP42930-VG0-000 Out of stock
Adjuster Arm Assy Rear R H
£66.11 £55.09

  6 Adjuster Arm Front L H
Adjuster Arm Front L H
HP42940-VG0-000 Out of stock
Adjuster Arm Front L H
£65.58 £54.65

  7 Adjuster Grip
Adjuster Grip
HP42952-VA4-000 In stock
Adjuster Grip
£1.52 £1.27

  8 Rear Adjuster Plate
Rear Adjuster Plate
HP42961-VF0-000 Out of stock
Rear Adjuster Plate
£10.80 £9.00

  9 Rear Adjuster Panel R H
Rear Adjuster Panel R H
HP42991-VG0-000 Out of stock
Rear Adjuster Panel R H
£38.81 £32.34

  10 Panel
Panel
HP42992-VG0-000 Out of stock
Panel
£51.97 £43.31

  11 Wheel Bolt
Wheel Bolt
HP90110-VA4-000 Out of stock
Wheel Bolt
£4.97 £4.14

  12 Lock Nut
Lock Nut
HP90308-SA0-981 Out of stock
Lock Nut
£5.04 £4.20

  13 Lock Nut 8Mm
Lock Nut 8Mm
HP90312-SB2-000 Out of stock
Lock Nut 8Mm
£5.64 £4.70

  15 Tank Mounting Washer
Tank Mounting Washer
HP90510-KY1-000 Out of stock
Tank Mounting Washer
£3.26 £2.72

  16 Washer 16Mm
Washer 16Mm
HP90551-VA4-800 Out of stock
Washer 16Mm
£3.40 £2.83

  17 Wheel Seal
Wheel Seal
HP90555-VB3-801 Out of stock
Wheel Seal
£21.18 £17.65

  18 Roller 5 X 23.8
Roller 5 X 23.8
HP91101-VA4-801 Out of stock
Roller 5 X 23.8
£7.99 £6.66

  19 Adjuster Arm Collar
Adjuster Arm Collar
HP91551-VG0-000 Out of stock
Adjuster Arm Collar
£4.73 £3.94

  21 Bolt
Bolt
HP957001-061600 Out of stock
Bolt
£1.08 £0.90

  22 Flange Bolt 8 X 16
Flange Bolt 8 X 16
HP95701-0801600 Out of stock
Flange Bolt 8 X 16
£1.75 £1.46

  23 Spring Pin 5 X 25
Spring Pin 5 X 25
HP94305-50252 Out of stock
Spring Pin 5 X 25
£2.84 £2.37

  24 Flange Bolt 8 X 20
Flange Bolt 8 X 20
HP95701-0802000 Out of stock
Flange Bolt 8 X 20
£1.75 £1.46

  26 Tyre
Tyre
HP42861-VB5-802 Out of stock
Tyre
£72.60 £60.50
