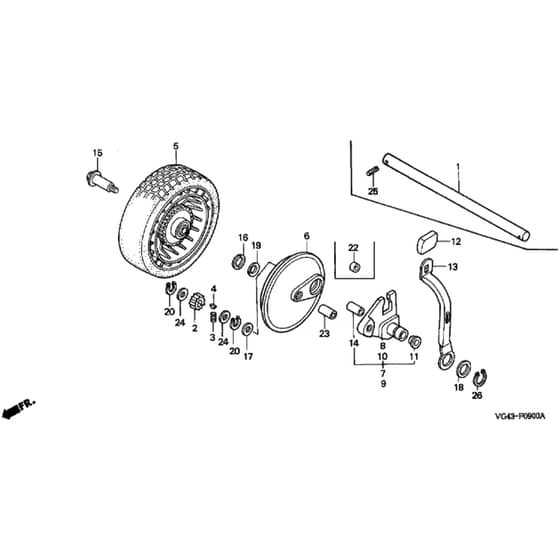

Honda HRG536C1 - SDE/A - MZCG 6600001-6699999 Rear Wheel Diagram

Description

Honda HRG536C1 - SDE/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP23371-VG4-000 Out of stock	Wheel Shaft	£20.66 £17.22
2	HP42661-VE2-800 In stock	Pinion Gear	£9.32 £7.77
3	HP42668-VE2-800 In stock	Pawl Spring	£1.10 £0.92
4	HP42672-VE2-800 In stock	Ratchet Key	£3.84 £3.20
5	HP42710-VE2-M02ZE In stock	Wheel	£49.61 £41.34
6	HP42866-VE2-800 Out of stock	Cover	£19.24 £16.03
7	HP42930-VG3-B01 Out of stock	Adjuster Arm Assy Rear R H	£18.78 £15.65
8	HP42931-VG3-010 Out of stock	Bracket	£0.64 £0.53
10	HP42940-VG3-B01 Out of stock	Adjuster Arm Front L H	£20.82 £17.35
11	HP42944-VE2-801 In stock	Dust Seal 12.7Mm	£9.66 £8.05
12	HP42952-VG3-000ZA In stock	Adjuster Grip	£1.56 £1.30
13	HP42961-VG3-010 Out of stock	Rear Adjuster Plate	£11.93 £9.94
14	HP44327-VG3-B00 Out of stock	Drive Shaft Bush	£7.20 £6.00
15	HP90102-VG3-000 In stock	Wheel Shaft Bolt	£4.20 £3.50
16	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
17	HP90502-VE2-800 Out of stock	Thrust Washer 13Mm	£3.96 £3.30
18	HP90503-VG3-000 Out of stock	Flat Washer	£0.85 £0.71
19	HP90505-VG3-000 Out of stock	Thrust Washer 13 X 27 X 1	£0.85 £0.71
20	HP90651-VE2-800 Out of stock	External Circlip 12.7Mm	£1.46 £1.22
22	HP91552-VG3-000 Out of stock	Collar	£1.12 £0.93
23	HP91553-VG3-B00 In stock	Thrust Collar	£1.16 £0.97
24	HP91559-VE2-800 In stock	Pinion Gear Collar	£2.08 £1.73
25	HP94201-30250 Out of stock	Split Pin 3.0 X 25	£1.16 £0.97
26	HP94510-25000 Out of stock	External Circlip 25Mm	£1.75 £1.46
