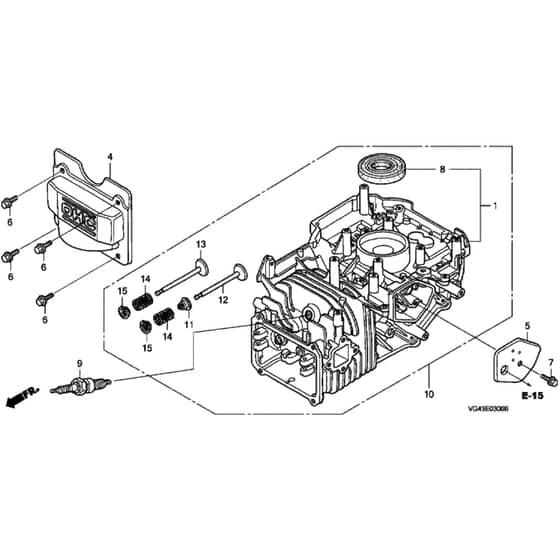

Honda HRG536C1 - PDE/A - MZCG 6600001-6699999 Cylinder Barrel Diagram

Honda HRG536C1 - PDE/A - MZCG 6600001-6699999 Cylinder Barrel Diagram
Honda HRG536C1 - PDE/A - MZCG 6600001-6699999 Cylinder Barrel Diagram

Description

Honda HRG536C1 - PDE/A Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Cylinder Assy
Cylinder Assy
HP12000-Z0L-840 Out of stock
Cylinder Assy
£250.20 £208.50

  4 Rocker Cover
Rocker Cover
HP12311-ZL8-D00 Out of stock
Rocker Cover
£9.36 £7.80

  5 Breather Cover Assy
Breather Cover Assy
HP12355-ZL8-000 Out of stock
Breather Cover Assy
£11.27 £9.39

  6 Flange Bolt 6 X 12
Flange Bolt 6 X 12
HP90013-883-000 Out of stock
Flange Bolt 6 X 12
£4.63 £3.86

  7 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP90014-952-000 Out of stock
Flange Bolt 6 X 14
£3.95 £3.29

  8 Oil Seal 25.4 X 62 X 6
Oil Seal 25.4 X 62 X 6
HP91201-ZL8-003 Out of stock
Oil Seal 25.4 X 62 X 6
£10.12 £8.43

  9 Plug Spark (Bpr6Es) (Ngk)
Plug Spark (Bpr6Es) (Ngk)
2136 In stock
Plug Spark (Bpr6Es) (Ngk)
£2.92 £2.43

  11 Valve Stem Seal
Valve Stem Seal
HP12209-ZM0-003 Out of stock
Valve Stem Seal
£9.84 £8.20

  12 Inlet Valve
Inlet Valve
HP14711-ZL8-000 Out of stock
Inlet Valve
£11.12 £9.27

  13 Exhaust Valve
Exhaust Valve
HP14721-ZL8-000 Out of stock
Exhaust Valve
£14.46 £12.05

  14 Valve Spring
Valve Spring
HP14751-ZL8-000 Out of stock
Valve Spring
£2.82 £2.35

  15 Exhaust Valve Spring Retainer
Exhaust Valve Spring Retainer
HP14771-ZE1-000 Out of stock
Exhaust Valve Spring Retainer
£9.66 £8.05


Description

Honda HRG536C1 - PDE/A Rotary Mower Parts Diagram
