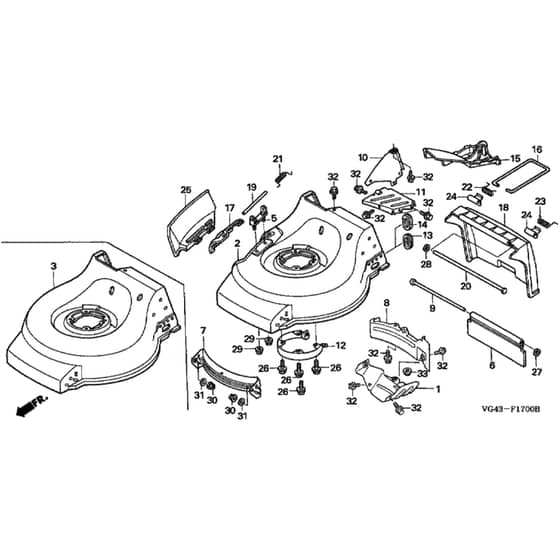

Honda HRG536C1 - PDE/A - MZCG 6600001-6699999 Cutter Housing Diagram

Name: Honda HRG536C1 - PDE/A - MZCG 6600001-6699999 Cutter Housing Diagram
SKU: hrg536c1_pde_a_mzcg_6600001_6699999_cutter_housing-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG536C1 - PDE/A - MZCG 6600001-6699999 Cutter Housing Diagram

Description

Honda HRG536C1 - PDE/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP63610-VG4-020 Out of stock	Cover	£17.66 £14.72
6	HP06761-VG3-305 Out of stock	Shield Kit	£60.00 £50.00
7	HP76125-VG3-010 Out of stock	Front Scroll	£27.72 £23.10
8	HP76131-VG4-020 Out of stock	Scroll	£20.04 £16.70
9	HP76138-VG3-010 Out of stock	Shaft	£6.30 £5.25
10	HP76142-VG4-020 Out of stock	Scroll Plate	£26.69 £22.24
11	HP76143-VG4-010 Out of stock	Guide Plate	£17.74 £14.78
12	HP76147-VG4-000 Out of stock	Roto-Stop Cover	£33.28 £27.73
13	HP91651-VH3-850 Out of stock	Cable Grommet	£1.57 £1.31
14	HP76232-VG3-000 Out of stock	Grommet	£2.08 £1.73
15	HP76266-VG4-000ZA Out of stock	Stuffing	£58.68 £48.90
16	HP76267-VG4-A50 Out of stock	Stuffing Stopper	£48.13 £40.11
18	HP76281-VG4-A51ZA Out of stock	Discharge Guard	£34.98 £29.15
20	HP76282-VG4-010 Out of stock	Discharge Guard Shaft	£13.54 £11.28
22	HP76284-VG4-000 Out of stock	Guard Return Spring R H	£3.24 £2.70
23	HP76294-VG4-000 Out of stock	Guard Return Spring L H	£3.24 £2.70
24	HP81152-VG4-000 Out of stock	Hinge Plate	£3.66 £3.05
26	HP90104-VG3-000 Out of stock	Flange Bolt	£1.08 £0.90
27	HP90301-VG3-010 Out of stock	Push Nut	£2.02 £1.68
28	HP90301-VG4-000 Out of stock	Push Nut	£0.96 £0.80
30	HP94050-08080 Out of stock	Flange Nut 8Mm	£3.61 £3.01
31	HP90506-VG3-000 Out of stock	Plain Washer 5/16	£2.81 £2.34
32	HP95701-0601000 Out of stock	Bolt	£1.69 £1.41
33	HP90303-VG3-000 Out of stock	Lock Nut 6Mm	£0.62 £0.52
