Honda HRG536C - PDE - MZCG 6000001-6299999 Transmission (SDE, SDF, SDT) Diagram

Honda HRG536C - PDE - MZCG 6000001-6299999 Transmission (SDE, SDF, SDT) Diagram
Honda HRG536C - PDE - MZCG 6000001-6299999 Transmission (SDE, SDF, SDT) Diagram

Description

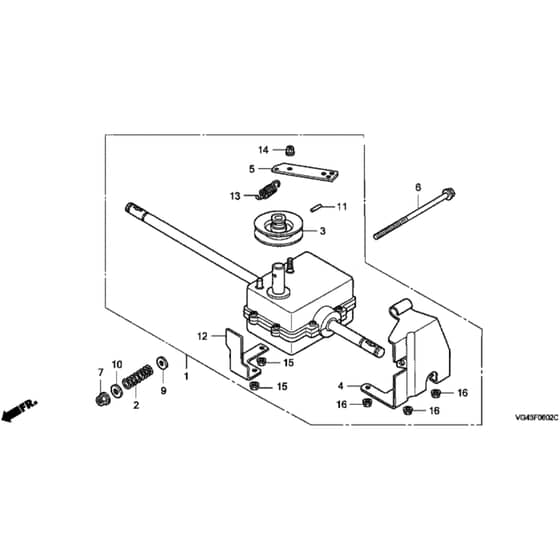

Honda HRG536C - PDE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Transmission Assy
Transmission Assy
HP20001-VG4-B51 Out of stock
Transmission Assy
£215.48 £179.57

  2 Spring Belt Tensioner
Spring Belt Tensioner
HP22531-VG3-B00 Out of stock
Spring Belt Tensioner
£8.40 £7.00

  3 Pulley Comp Driven
Pulley Comp Driven
HP22420-VG4-B50 Out of stock
Pulley Comp Driven
£44.10 £36.75

  4 Holder Wire
Holder Wire
HP51125-VG4-B50 Out of stock
Holder Wire
£17.80 £14.83

  5 Arm Clutch
Arm Clutch
HP51126-VG4-B50 Out of stock
Arm Clutch
£15.59 £12.99

  6 Bolt Flange 6X140
Bolt Flange 6X140
HP90107-VG3-B00 Out of stock
Bolt Flange 6X140
£3.16 £2.63

  7 Nut Nylon Lock 6Mm
Nut Nylon Lock 6Mm
HP90303-VG3-000 Out of stock
Nut Nylon Lock 6Mm
£0.62 £0.52

  9 Washer Plain 8Mm
Washer Plain 8Mm
HP94101-08000 Out of stock
Washer Plain 8Mm
£1.09 £0.91

  10 Washer Plain 6Mm
Washer Plain 6Mm
HP94103-06000 In stock
Washer Plain 6Mm
£1.09 £0.91

  11 Pin Spring 5X32
Pin Spring 5X32
HP94305-50321 Out of stock
Pin Spring 5X32
£1.58 £1.32

  12 Bracket Wire
Bracket Wire
HP51127-VG4-B50 Out of stock
Bracket Wire
£7.87 £6.56

  13 Spring Clutch Arm Return
Spring Clutch Arm Return
HP23439-VE0-851 Out of stock
Spring Clutch Arm Return
£3.95 £3.29

  16 Nut Lock 5Mm
Nut Lock 5Mm
HP90301-VE0-L01 Out of stock
Nut Lock 5Mm
£5.76 £4.80
