Honda HRG465CSX (1998) - SXI - MADF 8800001-8899999 Main (2) Diagram

Description

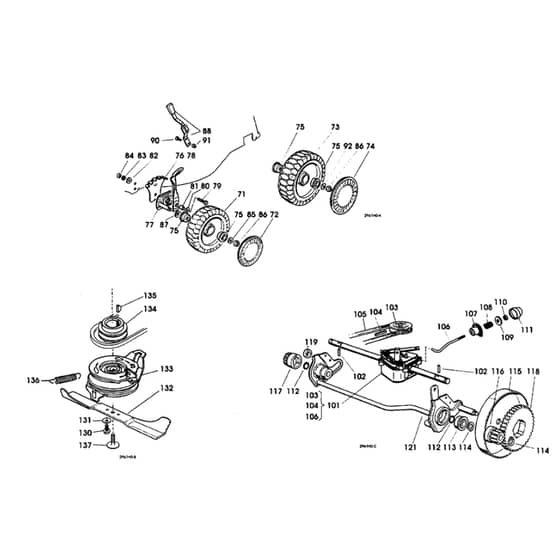

Honda HRG465CSX (1998) - SXI Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
72	HP80042-Y10-003 Out of stock	Hub Cap	£1.31 £1.09
73	HP80043-Y10-003 Out of stock	Wheel Ø 210	£34.01 £28.34
74	HP80044-Y10-003 Out of stock	Hub Cap	£1.84 £1.53
75	HP80068-Y10-003 Out of stock	Bearing	£4.57 £3.81
77	HP80047-Y10-003 Out of stock	Wheel Support	£23.34 £19.45
78	HP80048-Y10-003 Out of stock	Adjustment Lever	£8.11 £6.76
79	HP80058-Y09-003 Out of stock	Screw	£2.81 £2.34
81	HP80050-Y10-003 Out of stock	Spacer	£4.78 £3.98
82	HP80036-Y09-003 Out of stock	Washer	£5.47 £4.56
84	HP80001-VE7-003 Out of stock	Nut	£0.48 £0.40
86	HP80104-VK1-003 In stock	Nut	£0.86 £0.72
88	HP80054-Y10-003 Out of stock	Adjustment Lever	£23.11 £19.26
90	HP80090-Y09-003 Out of stock	Screw	£2.82 £2.35
91	HP80001-VJ5-003 Out of stock	Nut	£0.74 £0.62
92	HP80057-Y10-003 Out of stock	Elastic Washer	£2.17 £1.81
101	HP80058-Y10-003 Out of stock	Gear Box Assy	£234.24 £195.20
102	HP80059-Y10-003 Out of stock	Pin	£3.61 £3.01
103	HP80257-Y09-003 Out of stock	Pulley	£19.24 £16.03
104	HP80061-Y10-003 Out of stock	Pin	£2.09 £1.74
106	HP80063-Y10-003 Out of stock	Adjustment Rod	£6.88 £5.73
107	HP80064-Y10-003 Out of stock	Bush	£9.54 £7.95
108	HP80065-Y10-003 Out of stock	Spring	£2.84 £2.37
109	HP80066-Y10-003 Out of stock	Washer Gear Box Rod	£1.22 £1.02
110	HP80008-Y09-003 Out of stock	Nut	£3.53 £2.94
111	HP80143-Y09-003 Out of stock	Hub Cover	£1.46 £1.22
112	HP80067-Y10-003 Out of stock	O-Ring	£1.19 £0.99
114	HP80052-VJ5-003 Out of stock	Snap Ring For Shaft Diam 12	£0.32 £0.27
115	HP80070-Y10-003 Out of stock	Wheel Guard	£8.52 £7.10
116	HP80071-Y10-003 Out of stock	Left Pinion	£19.06 £15.88
117	HP80072-Y10-003 Out of stock	Right Pinion	£19.06 £15.88
118	HP80073-Y10-003HE Out of stock	Ring Gear	£24.91 £20.76
119	HP80074-Y10-003 Out of stock	Spacer	£3.44 £2.87
131	HP90481-430-000 In stock	Washer Spring 10Mm	£4.42 £3.68
135	HP80003-Y09-003 Out of stock	Key	£10.46 £8.72
136	HP75113-VB3-800 Out of stock	Spring Clutch Return(634Mm)	£5.98 £4.98
192	HP80105-Y09-003 Out of stock	Warning Label	£3.96 £3.30
193	HP80080-VF4-003 Out of stock	Warning Label	£4.80 £4.00
301	HP80087-Y09-003 Out of stock	Screw Hex 5/16X1	£4.24 £3.53
302	HP80045-Y09-003 Out of stock	Grower	£2.40 £2.00
303	HP80035-Y09-003 Out of stock	Washer	£1.50 £1.25
