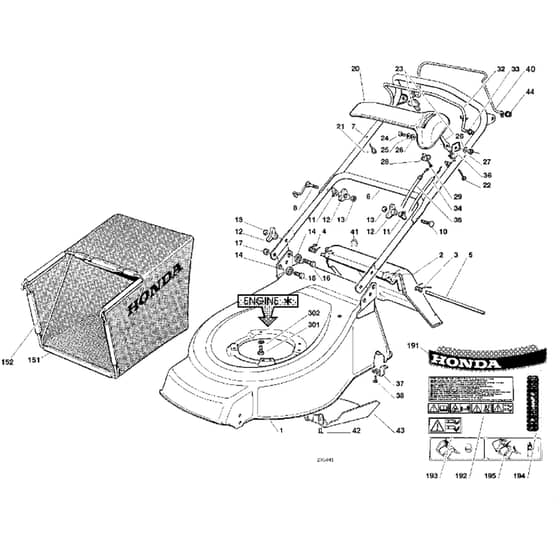

Honda HRG465CSD (1999) - SDU - MADF 8900001-8999999 Cutter Housing/Handle/Grass Bag Diagram

Honda HRG465CSD (1999) - SDU - MADF 8900001-8999999 Cutter Housing/Handle/Grass Bag Diagram
Honda HRG465CSD (1999) - SDU - MADF 8900001-8999999 Cutter Housing/Handle/Grass Bag Diagram

Description

Honda HRG465CSD (1999) - SDU Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  2 Stone-Guard
Stone-Guard
HP80003-Y10-003 Out of stock
Stone-Guard
£47.88 £39.90

  3 Left Spring
Left Spring
HP80004-Y10-003 Out of stock
Left Spring
£7.46 £6.22

  4 Right Spring
Right Spring
HP80005-Y10-003 Out of stock
Right Spring
£7.46 £6.22

  5 Pin
Pin
HP80006-Y10-003 Out of stock
Pin
£13.12 £10.93

  6 Lower Handle
Lower Handle
HP80007-Y10-003 Out of stock
Lower Handle
£42.83 £35.69

  8 Spring
Spring
HP80010-Y10-003 Out of stock
Spring
£12.08 £10.07

  10 Screw
Screw
HP80011-Y10-003 Out of stock
Screw
£1.09 £0.91

  11 Washer
Washer
HP90505-VP5-003 Out of stock
Washer
£1.52 £1.27

  12 Knob
Knob
HP80014-VE7-003 Out of stock
Knob
£1.26 £1.05

  13 Nut
Nut
HP80001-VE7-003 Out of stock
Nut
£0.48 £0.40

  14 Bush
Bush
HP80012-Y10-003 Out of stock
Bush
£1.48 £1.23

  15 Screw
Screw
HP80098-Y09-003 Out of stock
Screw
£1.08 £0.90

  16 Screw
Screw
HP80014-Y10-003 Out of stock
Screw
£0.96 £0.80

  16 Screw
Screw
HP80058-Y09-003 Out of stock
Screw
£2.81 £2.34

  17 Nut
Nut
HP80104-VK1-003 In stock
Nut
£0.86 £0.72

  20 Dash Board
Dash Board
HP80015-Y10-003 Out of stock
Dash Board
£57.84 £48.20

  21 Screw
Screw
HP80016-Y10-003 Out of stock
Screw
£3.48 £2.90

  22 Screw
Screw
HP80070-Y09-003 Out of stock
Screw
£1.08 £0.90

  23 Lever + Knob Assy
Lever + Knob Assy
HP80017-Y10-003 Out of stock
Lever + Knob Assy
£3.98 £3.32

  24 Screw
Screw
HP80143-VK1-003 Out of stock
Screw
£1.22 £1.02

  25 Spring Washer
Spring Washer
HP80018-Y10-003 Out of stock
Spring Washer
£1.94 £1.62

  26 Washer
Washer
HP80034-Y09-003 Out of stock
Washer
£0.85 £0.71

  27 Nut
Nut
HP80008-Y09-003 Out of stock
Nut
£3.53 £2.94

  33 Bush
Bush
HP80024-Y10-003 Out of stock
Bush
£1.48 £1.23

  36 Plate
Plate
HP80027-Y10-003 Out of stock
Plate
£5.62 £4.68

  37 Plate
Plate
HP80028-Y10-003 Out of stock
Plate
£9.83 £8.19

  38 Self-Tapping Screw 55X19
Self-Tapping Screw 55X19
HP80029-Y10-003 Out of stock
Self-Tapping Screw 55X19
£1.25 £1.04

  42 Screw
Screw
HP80031-Y10-003 Out of stock
Screw
£2.09 £1.74

  44 Bush
Bush
HP80033-Y10-003 Out of stock
Bush
£1.48 £1.23

  192 Warning Label
Warning Label
HP80080-VF4-003 Out of stock
Warning Label
£4.80 £4.00

  193 Warning Label
Warning Label
HP80105-Y09-003 Out of stock
Warning Label
£3.96 £3.30

  194 Dash-Board Label
Dash-Board Label
HP80038-Y10-003 Out of stock
Dash-Board Label
£3.02 £2.52

  301 Screw Hex 5/16X1
Screw Hex 5/16X1
HP80087-Y09-003 Out of stock
Screw Hex 5/16X1
£4.24 £3.53

  302 Grower
Grower
HP80045-Y09-003 Out of stock
Grower
£2.40 £2.00


Description

Honda HRG465CSD (1999) - SDU Rotary Mower Parts Diagram
