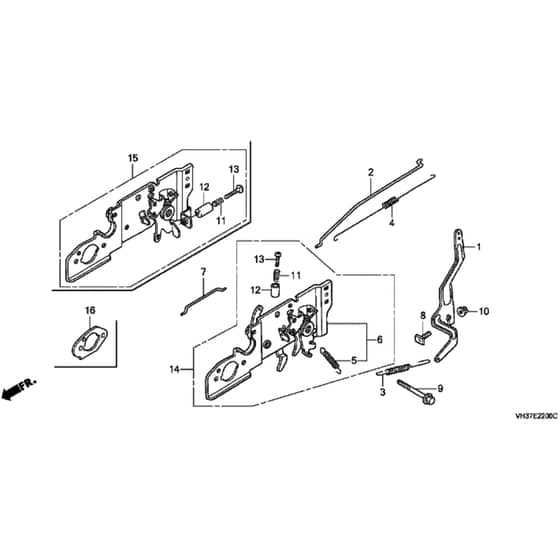

Honda HRG465C3 - PDEE - MADF 1400001- Control Diagram

Name: Honda HRG465C3 - PDEE - MADF 1400001- Control Diagram
SKU: hrg465c3_pdee_madf_1400001_control-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465C3 - PDEE - MADF 1400001- Control Diagram

Description

Honda HRG465C3 - PDEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16551-ZM0-010 Out of stock	Arm Governor	£11.04 £9.20
2	HP16555-ZM1-000 Out of stock	Rod Governor	£10.45 £8.71
3	HP16561-Z0M-860 Out of stock	Spring Governor From 2933812	£1.55 £1.29
3	HP16561-Z0M-870 Out of stock	Spring Governor To 2933811	£3.88 £3.23
4	HP16562-ZM1-000 Out of stock	Spring Throttle Return	£4.50 £3.75
8	HP90015-ZE5-010 Out of stock	Bolt Governor Arm	£3.56 £2.97
9	HP90016-ZM0-000 Out of stock	Bolt Flange 6X45 (Ct200)To 4183921	£2.47 £2.06
10	HP94050-06000 In stock	Nut Flange 6Mm	£4.01 £3.34
11	HP16584-883-300 Out of stock	Spring Control Adjustingto 4183921	£5.14 £4.28
12	HP16599-ZG1-M10 Out of stock	Collar Stopper To 4183921	£3.11 £2.59
13	HP90016-ZE7-W00 Out of stock	Screw Recessed 5X28 To 4183921	£3.18 £2.65
15	HP16580-Z0M-812 Out of stock	Base Comp Control From 2962389 To 4183921	£37.80 £31.50
15	HP16580-Z0M-811 Out of stock	Base Comp Control To 2962388	£39.98 £33.32
16	HP16221-Z0L-900 Out of stock	Spacer Carburetor From 4183922	£1.70 £1.42
