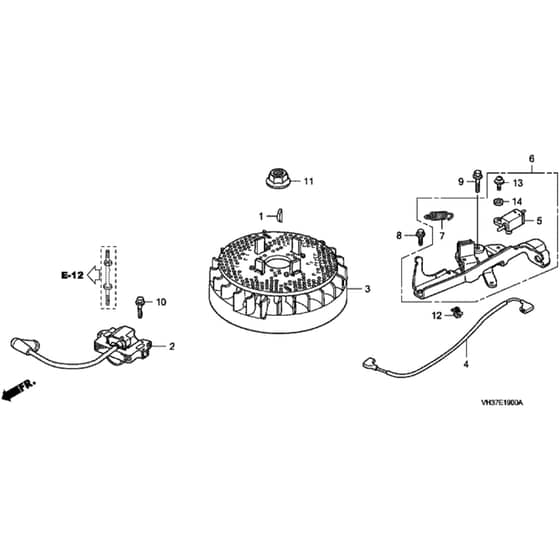

Honda HRG465C2 - PDEE/A - MADF 1100001-1399999 Flywheel/Ignition Coil Diagram

Name: Honda HRG465C2 - PDEE/A - MADF 1100001-1399999 Flywheel/Ignition Coil Diagram
SKU: hrg465c2_pdee_a_madf_1100001_1399999_flywheel_ignition_coil-grou
Price: 0.76 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG465C2 - PDEE/A - MADF 1100001-1399999 Flywheel/Ignition Coil Diagram

Description

Honda HRG465C2 - PDEE/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HP13331-357-000 Out of stock	Woodruff Key	£9.46 £7.88
2	HP30500-ZL8-014 Out of stock	Ignition Coil Assy	£86.28 £71.90
3	HP31105-ZM1-000 Out of stock	Flywheel Assy	£81.00 £67.50
4	HP32195-ZM0-000 Out of stock	Stop Switch	£11.03 £9.19
5	HP35120-ZM0-003 Out of stock	Engine Stop Switch Assy	£14.23 £11.86
6	HP75100-Z1L-000 Out of stock	Brake Assy	£50.40 £42.00
6	HP75100-ZM0-000 Out of stock	Brake Assy	£50.40 £42.00
7	HP75113-ZM0-000 Out of stock	Spring	£3.23 £2.69
8	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
9	HP90018-ZE1-000 Out of stock	Flange Bolt	£3.52 £2.93
10	HP90022-888-010 Out of stock	Flange Bolt 6 X 20	£2.93 £2.44
11	HP90201-878-003 Out of stock	Speical Nut 14Mm	£7.60 £6.33
12	HP90681-959-003 Out of stock	Cable Clip	£1.02 £0.85
13	HP93892-0401200 Out of stock	Screw	£1.90 £1.58
14	HP94103-040-00 Out of stock	Washer 4Mm	£0.91 £0.76
