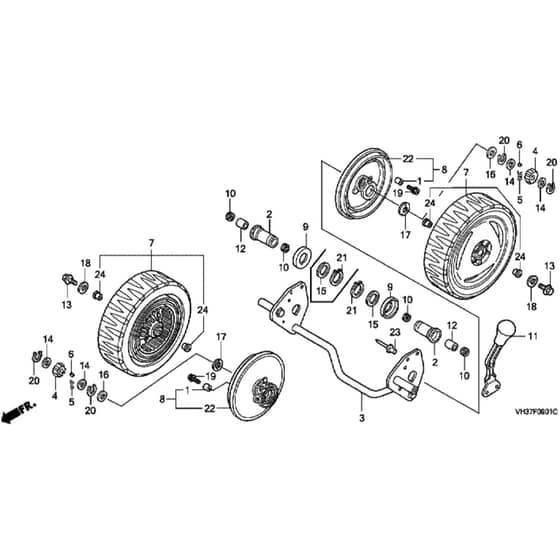

Honda HRG415C3 (IZY) - SDEE - MABF 1400001- Rear Wheel - Self Propelled (SDEE Only) Diagram

Honda HRG415C3 (IZY) - SDEE - MABF 1400001- Rear Wheel - Self Propelled (SDEE Only) Diagram
Honda HRG415C3 (IZY) - SDEE - MABF 1400001- Rear Wheel - Self Propelled (SDEE Only) Diagram

Description

Honda HRG415C3 (IZY) - SDEE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  3 Axle Shaft
Axle Shaft
HP42310-VH3-850 Out of stock
Axle Shaft
£70.26 £58.55

  4 Pinion Gear
Pinion Gear
HP42661-VH3-850 Out of stock
Pinion Gear
£6.50 £5.42

  5 Pawl Spring
Pawl Spring
HP42668-VE2-800 In stock
Pawl Spring
£1.10 £0.92

  6 Ratchet Key
Ratchet Key
HP42672-VE2-800 In stock
Ratchet Key
£3.84 £3.20

  7 Wheel
Wheel
HP42710-VH3-850ZB Out of stock
Wheel
£37.80 £31.50

  9 Wheel Cap
Wheel Cap
HP42868-VA9-K40 Out of stock
Wheel Cap
£1.49 £1.24

  10 Dust Seal 12Mm
Dust Seal 12Mm
HP42944-VA2-702 Out of stock
Dust Seal 12Mm
£6.37 £5.31

  11 Rear Height Lever Assy
Rear Height Lever Assy
HP42960-VH3-N10ZA Out of stock
Rear Height Lever Assy
£30.14 £25.12

  12 Drive Shaft Bush
Drive Shaft Bush
HP44327-VH3-Y10 Out of stock
Drive Shaft Bush
£9.94 £8.28

  13 Wheel Bolt
Wheel Bolt
HP90110-VA4-000 Out of stock
Wheel Bolt
£4.97 £4.14

  14 Washer
Washer
HP90452-166-600 Out of stock
Washer
£1.50 £1.25

  15 Thrust Washer
Thrust Washer
HP90502-VH3-N20 Out of stock
Thrust Washer
£4.58 £3.82

  16 Thrust Washer
Thrust Washer
HP90459-360-000 Out of stock
Thrust Washer
£3.48 £2.90

  17 Washer 13Mm
Washer 13Mm
HP90505-VA9-K40 Out of stock
Washer 13Mm
£1.75 £1.46

  18 Wheel Washer
Wheel Washer
HP90506-VA9-K41 Out of stock
Wheel Washer
£4.14 £3.45

  20 External Circlip 12Mm
External Circlip 12Mm
HP94510-12000 Out of stock
External Circlip 12Mm
£1.34 £1.12

  21 External Circlip 20Mm
External Circlip 20Mm
HP94510-20000 Out of stock
External Circlip 20Mm
£1.60 £1.33

  22 Wheel Cover
Wheel Cover
HP42866-VE0-800 Out of stock
Wheel Cover
£5.26 £4.38

  23 Rivet 6Mm
Rivet 6Mm
HP90842-VH3-N10 Out of stock
Rivet 6Mm
£2.84 £2.37

  24 Wheel Bush
Wheel Bush
HP42716-VE0-800 In stock
Wheel Bush
£3.48 £2.90


Description

Honda HRG415C3 (IZY) - SDEE Rotary Mower Parts Diagram
