Honda HRG415C2 (IZY) - PDE - MAAF 1100001-9999999 Rear Wheel - Self Propelled SDE Model Only Diagram

Description

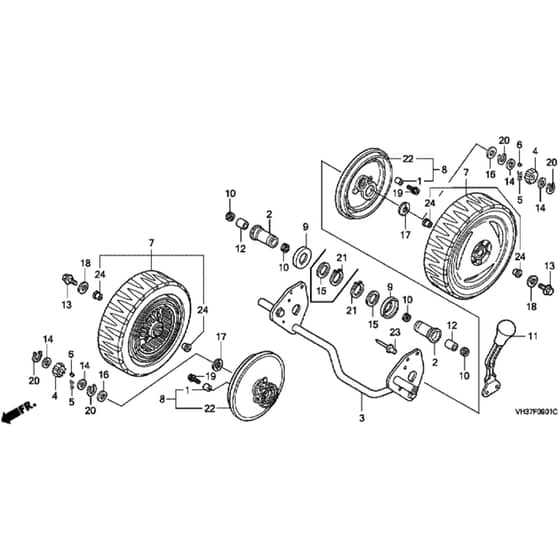

Honda HRG415C2 (IZY) - PDE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16598-ZG1-750 Out of stock	Control Collar	£3.91 £3.26
2	HP41418-VE0-800 Out of stock	Drive Shaft Collar	£12.78 £10.65
3	HP42310-VH3-850 Out of stock	Axle Shaft	£70.26 £58.55
4	HP42661-VH3-850 Out of stock	Pinion Gear	£6.50 £5.42
5	HP42668-VE2-800 In stock	Pawl Spring	£1.10 £0.92
6	HP42672-VE2-800 In stock	Ratchet Key	£3.84 £3.20
7	HP42710-VH3-851ZA Out of stock	Wheel	£40.16 £33.47
8	HP42865-VE0-800ZA Out of stock	Wheel Cover	£19.31 £16.09
9	HP42868-VA9-K40 Out of stock	Wheel Cap	£1.49 £1.24
10	HP42944-VA2-702 Out of stock	Dust Seal 12Mm	£6.37 £5.31
11	HP42960-VH3-000ZA In stock	Lever Assy	£23.74 £19.78
12	HP44327-VH3-Y10 Out of stock	Drive Shaft Bush	£9.94 £8.28
13	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
14	HP90452-166-600 Out of stock	Washer	£1.50 £1.25
15	HP90453-KA3-710 Out of stock	Thrust Washer	£2.48 £2.07
16	HP90459-360-000 Out of stock	Thrust Washer	£3.48 £2.90
17	HP90505-VA9-K40 Out of stock	Washer 13Mm	£1.75 £1.46
18	HP90506-VA9-K41 Out of stock	Wheel Washer	£4.14 £3.45
19	HP90101-VH3-000 Out of stock	Self Tapping Screw 5 X 12	£1.69 £1.41
20	HP94510-12000 Out of stock	External Circlip 12Mm	£1.34 £1.12
21	HP94510-20000 Out of stock	External Circlip 20Mm	£1.60 £1.33
22	HP42866-VE0-800 Out of stock	Wheel Cover	£5.26 £4.38
23	HP90842-VA9-B50 Out of stock	Rivet 6.0Mm	£1.04 £0.87
24	HP42716-VE0-800 In stock	Wheel Bush	£3.48 £2.90
