Honda HRD536K4 - QXEH - MZBL 8300001- Recoil Starter Diagram

Description

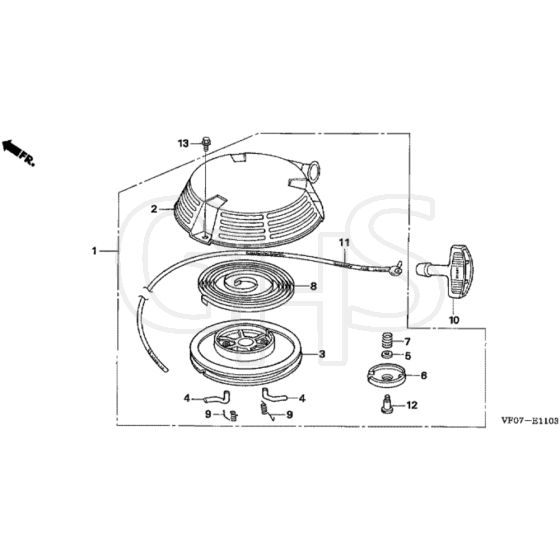

Honda HRD536K4 - QXEH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28400-Z1V-J52ZA Out of stock	Starter Recoil Assy	£109.73 £91.44
2	HP28410-Z1V-003ZA In stock	Recoil Starter Case	£159.32 £132.77
3	HP28420-Z1V-003 Out of stock	Recoil Pulley	£39.35 £32.79
4	HP28422-ZH8-801 Out of stock	Starter Pawl	£10.27 £8.56
5	HP28431-ZH8-801 Out of stock	Friction Plate	£7.69 £6.41
6	HP28433-ZH8-801 Out of stock	Ratchet Guide	£12.49 £10.41
7	HP28441-ZH8-801 Out of stock	Friction Spring	£7.34 £6.12
8	HP28442-ZH8-003 In stock	Recoil Spring	Was £32.24 £26.87 Special Price £21.37 £17.81
9	HP28443-ZH8-801 Out of stock	Return Spring	£5.59 £4.66
10	HP28461-ZE7-T01 Out of stock	Recoil Starter Handle	£7.02 £5.85
11	HP28462-Z1V-801 Out of stock	Recoil Starter Rope	£27.37 £22.81
12	HP90003-ZH8-801 Out of stock	Setting Screw	£8.95 £7.46
13	HP95701-0600800 In stock	Flange Bolt 6 X 8	£1.56 £1.30
