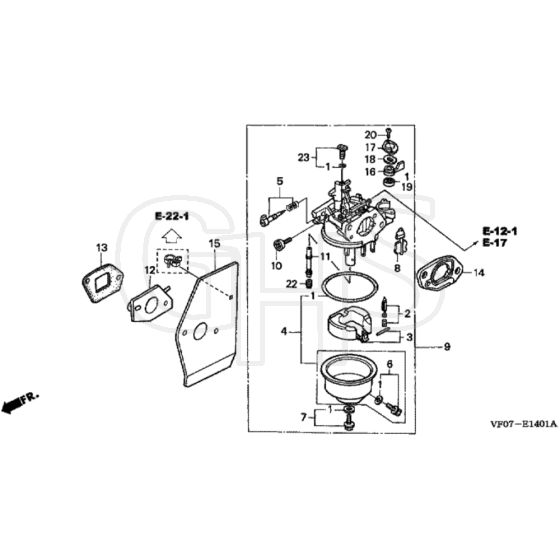

Honda HRD536K3 - QXE - MZBL 8200001-8299999 Carburettor Diagram

Honda HRD536K3 - QXE - MZBL 8200001-8299999 Carburettor Diagram
Honda HRD536K3 - QXE - MZBL 8200001-8299999 Carburettor Diagram

Description

Honda HRD536K3 - QXE Rotary Mower Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Gasket Set HP16010-ZE0-025
Gasket Set
 Out of stock
£24.02 £20.02

  2 Float Valve Set HP16011-ZE0-005
Float Valve Set
 Out of stock
£40.08 £33.40

  3 Float Set (BE66 NA) HP16013-Z0S-B01
Float Set (BE66 NA)
 Out of stock
£36.17 £30.14

  3 Float Set (BE66 JA) HP16013-ZE0-005
Float Set (BE66 JA)
 In stock
Was £43.55 £36.29 Special Price £11.99 £9.99

  4 Float Bowl Set HP16015-ZE0-831
Float Bowl Set
 Out of stock
£47.88 £39.90

  5 Pilot Screw Set HP16016-ZH7-W01
Pilot Screw Set
 Out of stock
£22.52 £18.77

  6 Drain Screw Set HP16024-ZE1-811
Drain Screw Set
 Out of stock
£14.40 £12.00

  7 Screw Set HP16028-ZK7-S91
Screw Set
 Out of stock
£16.45 £13.71

  8 Choke Set (BE66 NA) HP16045-Z1V-G01
Choke Set (BE66 NA)
 Out of stock
£44.16 £36.80

  8 Choke Set (BE66 JA) HP16045-ZE7-005
Choke Set (BE66 JA)
 Out of stock
£44.16 £36.80

  9 Carburettor Assy (BE66 NA) HP16100-Z1V-802
Carburettor Assy (BE66 NA)
 Out of stock
£104.88 £87.40

  9 Carburettor Assy (BE66 JA) HP16100-Z1V-003
Carburettor Assy (BE66 JA)
 Out of stock
£154.14 £128.45

  10 Throttle Stop Screw HP16124-ZE0-005
Throttle Stop Screw
 Out of stock
£13.70 £11.42

  11 Main Nozzle (BE66 NA) HP16166-Z1V-801
Main Nozzle (BE66 NA)
 Out of stock
£49.94 £41.62

  11 Main Nozzle (BE66 JA) HP16166-Z1V-003
Main Nozzle (BE66 JA)
 Out of stock
£49.94 £41.62

  12 Carburettor Insulator HP16211-ZE7-000
Carburettor Insulator
 Out of stock
£13.12 £10.93

  13 Insulator Gasket HP16212-ZE7-M10
Insulator Gasket
 Out of stock
£2.69 £2.24

  14 Carburettor Spacer HP16220-ZE6-010
Carburettor Spacer
 In stock
£7.62 £6.35

  15 Carburettor Gasket HP16221-ZE7-M11
Carburettor Gasket
 In stock
£24.78 £20.65

  16 Fuel Tap Lever HP16953-ZE1-812
Fuel Tap Lever
 Out of stock
£14.03 £11.69

  17 Lever Setting Plate HP16954-ZE1-812
Lever Setting Plate
 Out of stock
£8.52 £7.10

  18 Valve Lever Spring HP16956-ZE1-811
Valve Lever Spring
 Out of stock
£3.36 £2.80

  19 Fuel Tap Gasket HP16957-ZE1-812
Fuel Tap Gasket
 Out of stock
£5.30 £4.42

  20 Pan Screw 3 X 6 HP93500-030060H
Pan Screw 3 X 6
 Out of stock
£0.59 £0.49

  22 Main Jet HP99101-ZH8-0620
Main Jet
 Out of stock
£12.60 £10.50

  22 Jet (BE66 JA) HP99101-ZH8-0600
Jet (BE66 JA)
 Out of stock
£6.60 £5.50

  22 Main Jet (BE66 NA) HP99101-ZK7-0680
Main Jet (BE66 NA)
 Out of stock
£14.96 £12.47

  22 Jet (BE66 JA) HP99101-ZH8-0650
Jet (BE66 JA)
 Out of stock
£6.60 £5.50

  23 Jet Kit HP99204-ZE0-0350
Jet Kit
 Out of stock
£28.85 £24.04


Description

Honda HRD536K3 - QXE Rotary Mower Parts Diagram
