Honda HRD536K3 - HXE - MZBL 8200001-8299999 Carburettor Diagram

Honda HRD536K3 - HXE - MZBL 8200001-8299999 Carburettor Diagram
Honda HRD536K3 - HXE - MZBL 8200001-8299999 Carburettor Diagram

Description

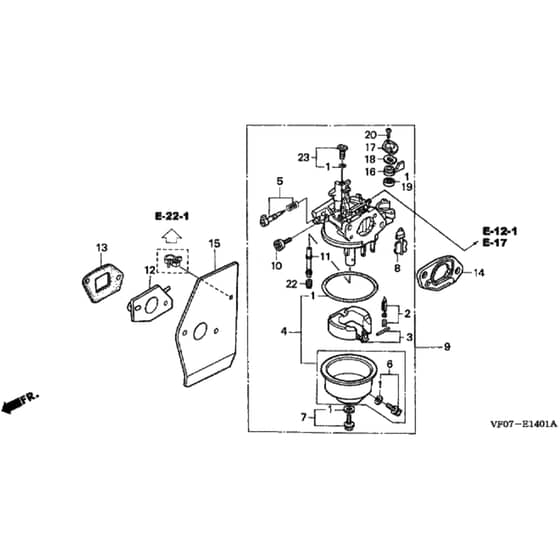

Honda HRD536K3 - HXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Gasket Set
Gasket Set
HP16010-ZE0-025 Out of stock
Gasket Set
£24.02 £20.02

  2 Float Valve Set
Float Valve Set
HP16011-ZE0-005 Out of stock
Float Valve Set
£37.46 £31.22

  3 Float Set (BE66 JA)
Float Set (BE66 JA)
HP16013-ZE0-005 Out of stock
Float Set (BE66 JA)
£36.17 £30.14

  3 Float Set (BE66 NA)
Float Set (BE66 NA)
HP16013-Z0S-B01 Out of stock
Float Set (BE66 NA)
£36.17 £30.14

  4 Float Bowl Set
Float Bowl Set
HP16015-ZE0-831 Out of stock
Float Bowl Set
£47.88 £39.90

  5 Pilot Screw Set
Pilot Screw Set
HP16016-ZH7-W01 Out of stock
Pilot Screw Set
£22.52 £18.77

  6 Drain Screw Set
Drain Screw Set
HP16024-ZE1-811 Out of stock
Drain Screw Set
£14.40 £12.00

  7 Screw Set
Screw Set
HP16028-ZK7-S91 Out of stock
Screw Set
£16.45 £13.71

  8 Choke Set (BE66 NA)
Choke Set (BE66 NA)
HP16045-Z1V-G01 Out of stock
Choke Set (BE66 NA)
£44.16 £36.80

  8 Choke Set (BE66 JA)
Choke Set (BE66 JA)
HP16045-ZE7-005 Out of stock
Choke Set (BE66 JA)
£44.16 £36.80

  9 Carburettor Assy (up to eng no. 1095195)
Carburettor Assy (up to eng no. 1095195)
HP16100-Z1V-003 Out of stock
Carburettor Assy (up to eng no. 1095195)
£154.14 £128.45

  9 Carburettor Assy (eng no. 1095196 +)
Carburettor Assy (eng no. 1095196 +)
HP16100-Z1V-802 Out of stock
Carburettor Assy (eng no. 1095196 +)
£109.28 £91.07

  10 Throttle Stop Screw
Throttle Stop Screw
HP16124-ZE0-005 Out of stock
Throttle Stop Screw
£13.70 £11.42

  11 Main Nozzle (BE66 JA)
Main Nozzle (BE66 JA)
HP16166-Z1V-003 Out of stock
Main Nozzle (BE66 JA)
£48.28 £40.23

  11 Main Nozzle (BE66 NA)
Main Nozzle (BE66 NA)
HP16166-Z1V-801 Out of stock
Main Nozzle (BE66 NA)
£48.28 £40.23

  12 Carburettor Insulator
Carburettor Insulator
HP16211-ZE7-000 Out of stock
Carburettor Insulator
£13.12 £10.93

  13 Insulator Gasket
Insulator Gasket
HP16212-ZE7-M10 In stock
Insulator Gasket
£2.54 £2.12

  14 Carburettor Spacer
Carburettor Spacer
HP16220-ZE6-010 Out of stock
Carburettor Spacer
£7.99 £6.66

  15 Carburettor Gasket
Carburettor Gasket
HP16221-ZE7-M11 In stock
Carburettor Gasket
£23.50 £19.58

  16 Fuel Tap Lever
Fuel Tap Lever
HP16953-ZE1-812 Out of stock
Fuel Tap Lever
£14.03 £11.69

  17 Lever Setting Plate
Lever Setting Plate
HP16954-ZE1-812 Out of stock
Lever Setting Plate
£8.52 £7.10

  18 Valve Lever Spring
Valve Lever Spring
HP16956-ZE1-811 Out of stock
Valve Lever Spring
£3.36 £2.80

  19 Fuel Tap Gasket
Fuel Tap Gasket
HP16957-ZE1-812 Out of stock
Fuel Tap Gasket
£5.30 £4.42

  20 Pan Screw 3 X 6
Pan Screw 3 X 6
HP93500-030060H Out of stock
Pan Screw 3 X 6
£0.59 £0.49

  22 Main Jet
Main Jet
HP99101-ZH8-0620 Out of stock
Main Jet
£12.60 £10.50

  22 Jet (BE66 JA)
Jet (BE66 JA)
HP99101-ZH8-0600 Out of stock
Jet (BE66 JA)
£6.60 £5.50

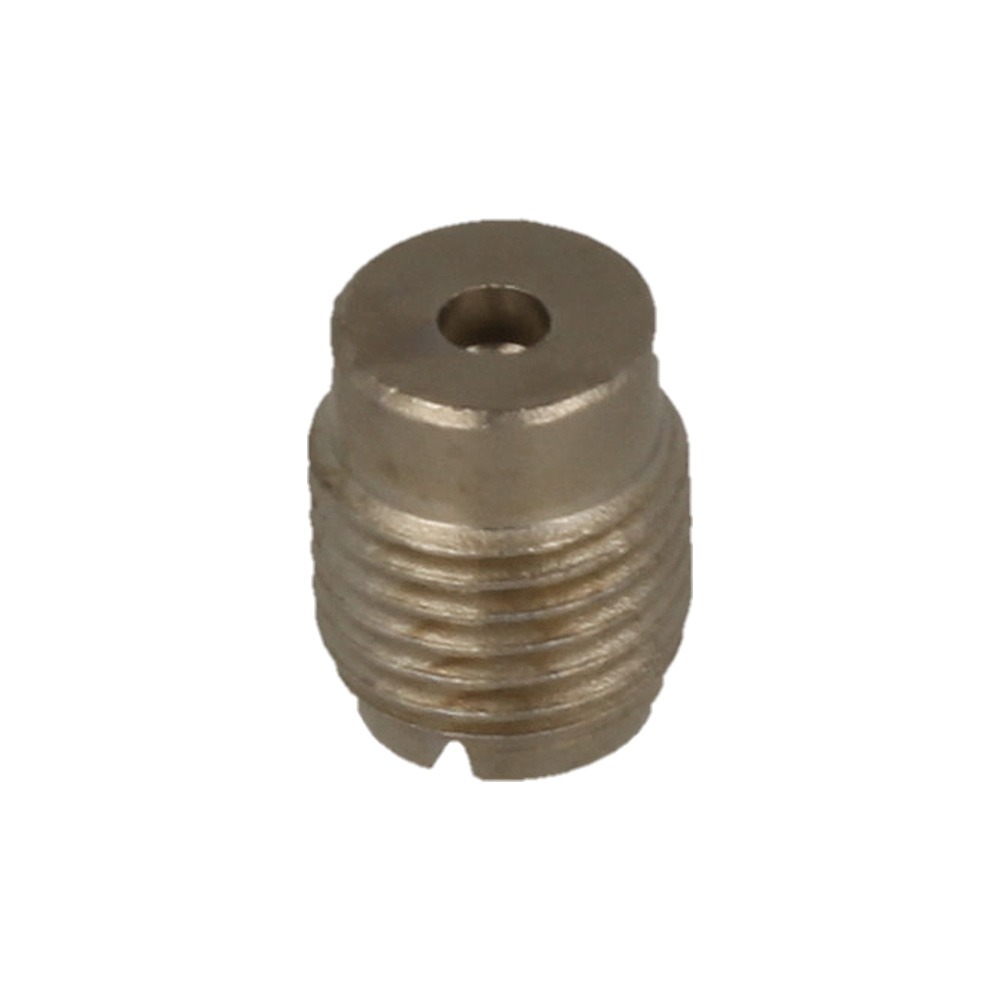

  22 Main Jet (BE66 NA)
Main Jet (BE66 NA)
HP99101-ZK7-0680 Out of stock
Main Jet (BE66 NA)
£14.96 £12.47

  22 Jet (BE66 JA)
Jet (BE66 JA)
HP99101-ZH8-0650 Out of stock
Jet (BE66 JA)
£6.60 £5.50

  23 Jet Kit
Jet Kit
HP99204-ZE0-0350 Out of stock
Jet Kit
£28.02 £23.35
