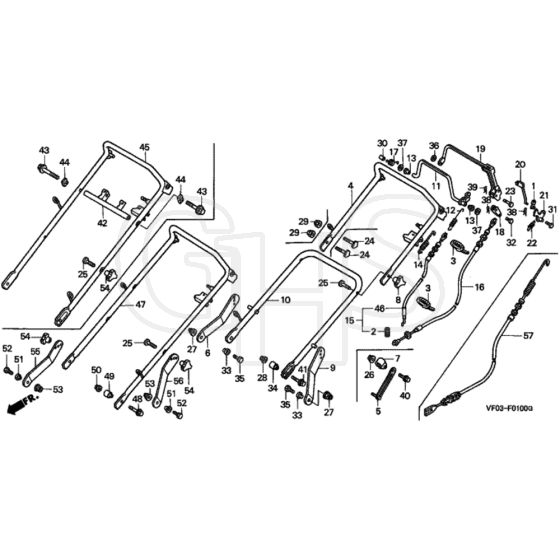

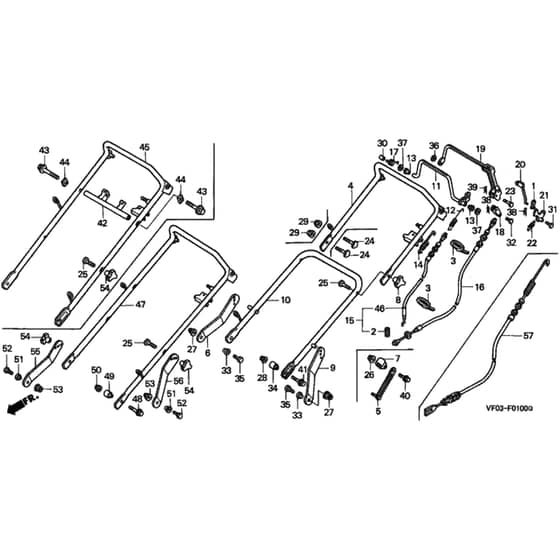

Honda HRD536K1 - HXE - MZBL 8100001-8199999 Handle Pipe Diagram

Name: Honda HRD536K1 - HXE - MZBL 8100001-8199999 Handle Pipe Diagram
SKU: hrd536k1_hxe_mzbl_8100001_8199999_handle_pipe-group
Price: 0.91 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536K1 - HXE - MZBL 8100001-8199999 Handle Pipe Diagram

Description

Honda HRD536K1 - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000	Rod Joint	Out of stock	£8.52 £7.10
3	HP32901-VE0-850	Cable Tie	Out of stock	£6.30 £5.25
11	HP54410-VA9-H50	Clutch Lever Assy	Out of stock	£78.72 £65.60
12	HP54411-VA3-P00	Clutch Spring	In stock	£8.40 £7.00
13	HP54412-952-770	Clutch Lever Bush	Out of stock	£4.62 £3.85
14	HP54414-VA3-P00	Clutch Lever Return Spring	In stock	£6.12 £5.10
16	HP54530-VF0-A51	Roto-Stop Cable (ser no. 8107601 +)	Out of stock	£20.77 £17.31
17	HP75118-VA3-J00	Stop Return Spring R H	Out of stock	£7.56 £6.30
18	HP75128-VE0-L00	Cable Arm	Out of stock	£14.41 £12.01
19	HP75161-VE0-L01	Roto-Stop Lever Assy	Out of stock	£58.56 £48.80
20	HP75165-VE0-L00	Ratchet Push Rod	Out of stock	£9.96 £8.30
21	HP75166-VA3-J01	Lock Lever	Out of stock	£24.72 £20.60
22	HP75168-VA4-000	Pawl Spring	Out of stock	£6.84 £5.70
23	HP90106-VA4-800	Clutch Lever Pin	Out of stock	£9.95 £8.29
25	HP90109-VF0-000	Handle Bolt	In stock	£9.24 £7.70
30	HP90552-VA3-J00	Collar 8 X 11 X 13.5	Out of stock	£5.89 £4.91
31	HP90753-VA3-J00	Lever Hinge Lock Pin	Out of stock	£4.80 £4.00
32	HP90754-VA9-P40	Cable Joint Pin	Out of stock	£3.54 £2.95
36	HP90407-952-300	Special Washer 6mm	Out of stock	£4.10 £3.42
37	HP94101-08000	Plain Washer 8mm	Out of stock	£1.09 £0.91
38	HP94251-06000	Lock Pin 6mm	Out of stock	£1.50 £1.25
39	HP94251-08000	Lock Pin 8mm	Out of stock	£1.75 £1.46
48	HP95701-0805500	Flange Bolt 8 X 55	Out of stock	£2.47 £2.06
49	HP91552-VF1-000	Lower Handle Collar	Out of stock	£10.03 £8.36
50	HP90312-SB2-000	Lock Nut 8mm	Out of stock	£6.13 £5.11
51	HP91551-VF0-000	Handle Support Collar	Out of stock	£4.00 £3.33
52	HP92101-080250A	Bolt	Out of stock	£2.16 £1.80
53	HP90309-428-731	Flange Nut 8mm	Out of stock	£6.30 £5.25
54	HP53125-VA3-680	Handle Grip	In stock	£11.88 £9.90
55	HP53118-VF0-010ZA	Handle Support	Out of stock	£23.46 £19.55
55	HP53118-VF0-010ZB	Handle Support	Out of stock	£30.90 £25.75
56	HP53128-VF0-010ZA	Handle Support	Out of stock	£23.46 £19.55
56	HP53128-VF0-010ZB	Handle Support L H	Out of stock	£28.30 £23.58
