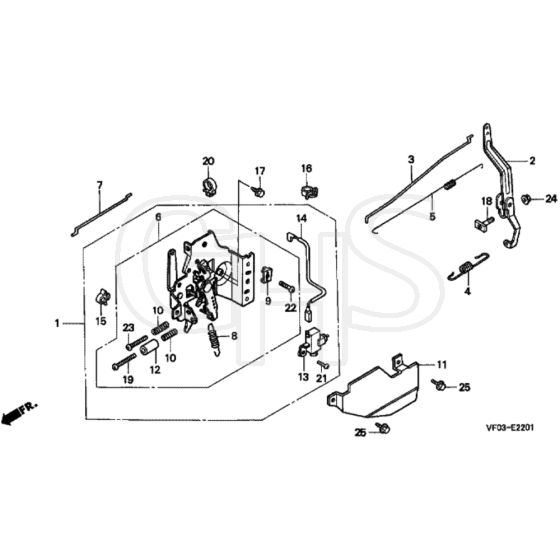

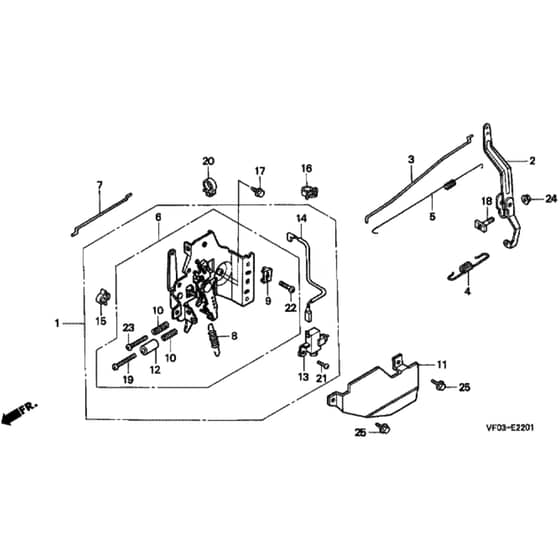

Honda HRD536K1 - HXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Control Assy
Control Assy
HP16500-ZE7-W31 Out of stock
Control Assy
£109.56 £91.30

  2 Governor Arm
Governor Arm
HP16551-ZE7-000 Out of stock
Governor Arm
£20.47 £17.06

  3 Governor Rod
Governor Rod
HP16555-ZE7-000 Out of stock
Governor Rod
£6.30 £5.25

  4 Governor Spring
Governor Spring
HP16561-ZE7-020 Out of stock
Governor Spring
£5.14 £4.28

  5 Throttle Return Spring
Throttle Return Spring
HP16562-ZE6-000 In stock
Throttle Return Spring
£6.80 £5.67

  6 Control
Control
HP16570-ZE7-W10 Out of stock
Control
£72.84 £60.70

  7 Choke Rod
Choke Rod
HP16573-ZE7-000 Out of stock
Choke Rod
£3.88 £3.23

  8 Lever Spring
Lever Spring
HP16576-ZE7-300 Out of stock
Lever Spring
£5.28 £4.40

  9 Cable Holder
Cable Holder
HP16576-891-000 Out of stock
Cable Holder
£4.16 £3.47

  10 Control Adjusting Spring
Control Adjusting Spring
HP16584-883-300 Out of stock
Control Adjusting Spring
£5.14 £4.28

  11 Control Protector
Control Protector
HP16585-ZE7-000 Out of stock
Control Protector
£22.06 £18.38

  12 Stopper Collar
Stopper Collar
HP16599-ZG1-M10 Out of stock
Stopper Collar
£3.11 £2.59

  13 Engine Stop Switch Assy
Engine Stop Switch Assy
HP36100-ZE7-013 In stock
Engine Stop Switch Assy
£34.20 £28.50

  14 Cord
Cord
HP36101-ZE7-020 Out of stock
Cord
£14.17 £11.81

  15 Stop Switch Cord Holder
Stop Switch Cord Holder
HP36103-ZE1-000 Out of stock
Stop Switch Cord Holder
£3.07 £2.56

  16 Brake Clamp
Brake Clamp
HP46392-SC2-003 Out of stock
Brake Clamp
£5.66 £4.72

  17 Flange Bolt 6 X 12
Flange Bolt 6 X 12
HP90013-883-000 Out of stock
Flange Bolt 6 X 12
£4.63 £3.86

  18 Governor Arm Bolt
Governor Arm Bolt
HP90015-ZE5-010 Out of stock
Governor Arm Bolt
£3.56 £2.97

  19 Recessed Screw
Recessed Screw
HP90016-ZE7-W00 Out of stock
Recessed Screw
£3.18 £2.65

  20 Clip
Clip
HP90659-680-013 Out of stock
Clip
£4.73 £3.94

  21 Screw
Screw
HP93500-040080A Out of stock
Screw
£1.69 £1.41

  22 Screw Pan 5 X 16
Screw Pan 5 X 16
HP93500-050160A Out of stock
Screw Pan 5 X 16
£1.55 £1.29

  23 Screw Pan 5 X 20
Screw Pan 5 X 20
HP93500-050200A Out of stock
Screw Pan 5 X 20
£1.55 £1.29

  24 Flange Nut 6mm
Flange Nut 6mm
HP94050-06000 In stock
Flange Nut 6mm
£4.01 £3.34

  25 Bolt
Bolt
HP95701-0601000 Out of stock
Bolt
£1.69 £1.41
