Honda HRD536C3 - TXEE - MAKF 1100001- Throttle Lever Diagram

Description

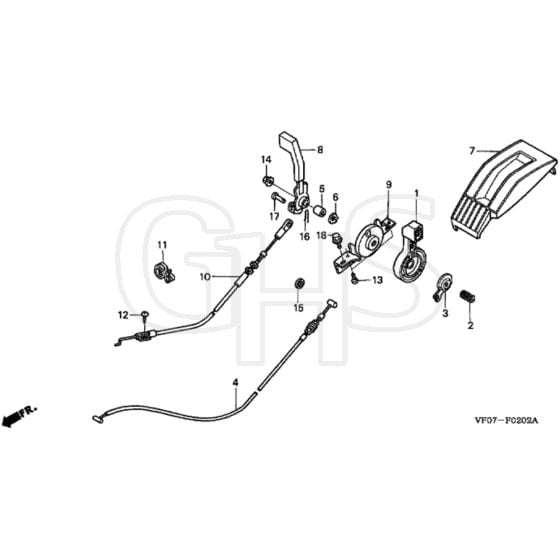

Honda HRD536C3 - TXEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP17851-VA3-D01 In stock	Throttle Lever	£15.01 £12.51
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.76 £3.97
3	HP17859-VA3-800 Out of stock	Seat Spring	£7.62 £6.35
4	HP17910-VA3-004 Out of stock	Throttle Cable	£35.42 £29.52
5	HP19612-896-700 Out of stock	Recoil Starter Collar	£3.35 £2.79
6	HP47363-671-300 Out of stock	Wave Washer	£5.28 £4.40
7	HP54231-VA3-800 Out of stock	Control Cover	£43.74 £36.45
8	HP54311-VA3-J00 Out of stock	Change Lever	£57.60 £48.00
9	HP54315-VA3-E41 Out of stock	Stopper Plate	£5.03 £4.19
10	HP54630-VF0-E51 In stock	Speed Change Cable	£28.48 £23.73
11	HP90690-SA0-003 Out of stock	Strap	£9.14 £7.62
12	HP93903-25110 Out of stock	Tapping Screw	£1.80 £1.50
13	HP93901-35210 Out of stock	Tapping Screw	£1.80 £1.50
14	HP94050-06000 In stock	Flange Nut 6mm	£4.01 £3.34
15	HP94103-06000 In stock	Plain Washer 6MM	£1.09 £0.91
16	HP94251-06000 Out of stock	Lock Pin 6MM	£1.45 £1.21
17	HP95015-51000 Out of stock	Brake Rod Joint Pin	£1.72 £1.43
18	HP95701-0601000 Out of stock	Bolt	£1.69 £1.41
