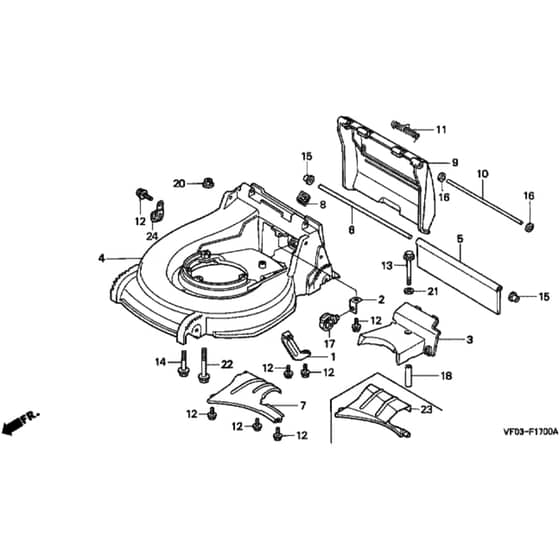

Honda HRD536C - SXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  2 Harness Bracket
Harness Bracket
HP32105-759-000 Out of stock
Harness Bracket
£5.42 £4.52

  3 Drive Shaft Cover
Drive Shaft Cover
HP54241-VF0-000 Out of stock
Drive Shaft Cover
£38.99 £32.49

  4 Cutter Housing
Cutter Housing
HP76111-VF0-000ZA Out of stock
Cutter Housing
£403.00 £335.83

  5 Shield
Shield
HP76118-VF0-010 Out of stock
Shield
£14.40 £12.00

  6 Shield Shaft
Shield Shaft
HP76138-VF0-000 Out of stock
Shield Shaft
£8.44 £7.03

  8 Grommet
Grommet
HP76231-VA3-000 Out of stock
Grommet
£7.87 £6.56

  9 Discharge Guard
Discharge Guard
HP76281-VE1-651ZC Out of stock
Discharge Guard
£64.56 £53.80

  10 Discharge Shaft
Discharge Shaft
HP76282-VE2-000 Out of stock
Discharge Shaft
£6.30 £5.25

  11 Guard Return Spring
Guard Return Spring
HP76284-VG8-000 Out of stock
Guard Return Spring
£6.68 £5.57

  12 Flange Bolt 6 X 12
Flange Bolt 6 X 12
HP90013-883-000 Out of stock
Flange Bolt 6 X 12
£4.63 £3.86

  13 Flange Bolt 6 X 65
Flange Bolt 6 X 65
HP90015-ZG0-801 Out of stock
Flange Bolt 6 X 65
£3.74 £3.12

  14 Engine Setting Bolt
Engine Setting Bolt
HP90102-VE0-000 Out of stock
Engine Setting Bolt
£3.04 £2.53

  15 Push Nut
Push Nut
HP90301-VA3-J01 In stock
Push Nut
£2.28 £1.90

  16 Special Washer 8mm
Special Washer 8mm
HP90407-VA9-K40 In stock
Special Washer 8mm
£1.56 £1.30

  17 Clip
Clip
HP90650-SB2-003 Out of stock
Clip
£3.32 £2.77

  18 Collar 10 X 53
Collar 10 X 53
HP91553-VF0-000 Out of stock
Collar 10 X 53
£9.19 £7.66

  21 Plain Washer 6mm
Plain Washer 6mm
HP94103-06000 In stock
Plain Washer 6mm
£1.09 £0.91
