Honda HRD536 - SXE - MZBL 8000001-8099999 Rotary Blade Diagram

Description

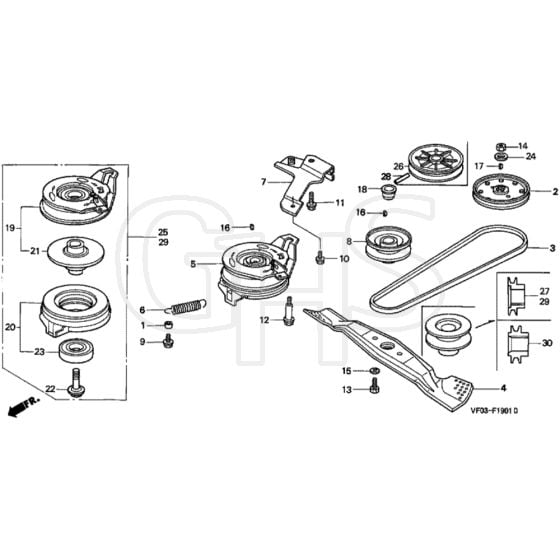

Honda HRD536 - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP19512-883-000 Out of stock	Fan Collar	£2.60 £2.17
2	HP22420-VF0-000 In stock	Pulley (ser no. 8019938 +)	Was £81.48 £67.90 Special Price £35.99 £29.99
2	HP22420-VE2-M00 In stock	Pulley (up to ser no. 8019937)	Was £66.58 £55.48 Special Price £35.99 £29.99
3	HP22431-VE2-801 Out of stock	Belt	£35.93 £29.94
4	HP72511-VE1-652 In stock	Blade	£47.74 £39.78
6	HP75113-VB3-800 Out of stock	Clutch Return Spring	£5.98 £4.98
7	HP75146-VF1-000 Out of stock	Cable Stopper	£13.82 £11.52
8	HP75160-VF0-010 Out of stock	Pulley	£44.10 £36.75
9	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£4.26 £3.55
10	HP90022-888-010 Out of stock	Flange Bolt 6 X 20	£2.93 £2.44
11	HP90102-VA4-000 Out of stock	Engine Setting Bolt	£3.94 £3.28
12	HP90105-VF0-750 Out of stock	Adjuster Arm Bolt	£10.63 £8.86
13	HP90105-960-710 Out of stock	Blade Bolt	£2.99 £2.49
14	HP90301-VE2-800 Out of stock	Nut	£6.19 £5.16
15	HP90481-430-000 Out of stock	Washer	£4.42 £3.68
16	HP94401-16150 In stock	Woodruff Key	£0.82 £0.68
17	HP90751-VE2-M00 Out of stock	Woodruff Key	£0.35 £0.29
20	HP06750-VF1-305 Out of stock	Blade Clutch Kit	£183.60 £153.00
22	HP90108-VF0-003 Out of stock	Cap Bolt	£23.64 £19.70
23	HP90152-VF0-003 Out of stock	Bearing	£30.29 £25.24
24	HP90503-VF0-000 Out of stock	Washer	£1.62 £1.35
27	HP75162-VF0-000 Out of stock	Pulley	£44.10 £36.75
