Honda HRD536 - SXE - MZBL 8000001-8099999 Handle Pipe Diagram

Description

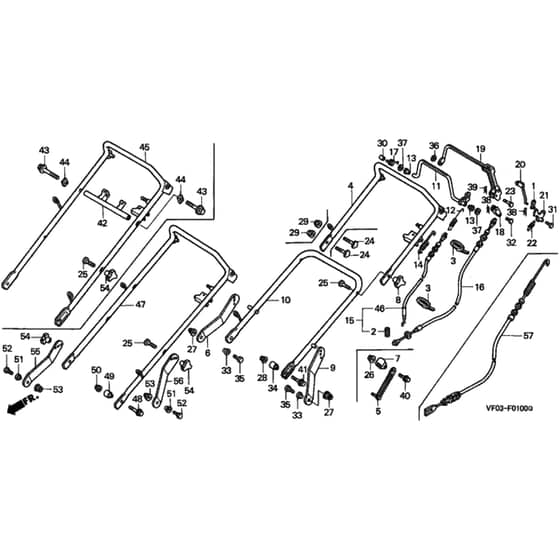

Honda HRD536 - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000	Rod Joint	Out of stock	£8.52 £7.10
3	HP32901-VE0-850	Cable Tie	Out of stock	£6.30 £5.25
4	HP53110-VF0-000ZA	Upper Handle (up to ser no. 8010817)	Out of stock	£132.44 £110.37
4	HP53110-VF0-010ZA	Upper Handle (ser no. 8010818 +)	Out of stock	£174.32 £145.27
10	HP53150-VF0-010ZA	Lower Handle Pipe	Out of stock	£52.88 £44.07
11	HP54410-VA9-H50	Clutch Lever Assy (ser no. 8016698 +)	Out of stock	£78.72 £65.60
11	HP54410-VA3-J00	Clutch Lever Assy (up to ser no. 8016697+	Out of stock	£73.32 £61.10
12	HP54411-VA3-J00	Clutch Spring	Out of stock	£8.04 £6.70
13	HP54412-952-770	Clutch Lever Bush	Out of stock	£4.62 £3.85
16	HP54530-VF0-013	Roto-Stop Cable	Out of stock	£29.46 £24.55
17	HP75118-VA3-J00	Stop Return Spring R H	Out of stock	£7.56 £6.30
18	HP75128-VE0-L00	Cable Arm	Out of stock	£14.41 £12.01
19	HP75161-VE0-L01	Roto-Stop Lever Assy	Out of stock	£58.56 £48.80
20	HP75165-VE0-L00	Ratchet Push Rod	Out of stock	£9.96 £8.30
21	HP75166-VA3-J01	Lock Lever	Out of stock	£24.72 £20.60
22	HP75168-VA4-000	Pawl Spring	Out of stock	£6.84 £5.70
23	HP90106-VA4-800	Clutch Lever Pin	Out of stock	£9.95 £8.29
25	HP90109-VD3-505	Handle Bolt (up to ser no. 8021985)	Out of stock	£17.10 £14.25
25	HP90109-VF0-000	Handle Bolt (ser no. 8021986 +)	In stock	£9.24 £7.70
27	HP90309-428-731	Flange Nut 8mm	Out of stock	£6.30 £5.25
28	HP90312-SB2-000	Lock Nut 8mm	Out of stock	£6.13 £5.11
30	HP90552-VA3-J00	Collar 8 X 11 X 13.5	Out of stock	£5.89 £4.91
31	HP90753-VA3-J00	Lever Hinge Lock Pin	Out of stock	£4.80 £4.00
32	HP90754-VA9-P40	Cable Joint Pin	Out of stock	£3.54 £2.95
33	HP91551-VF0-000	Handle Support Collar	Out of stock	£4.00 £3.33
34	HP91552-VF0-000	Lower Handle Collar	Out of stock	£7.46 £6.22
35	HP92101-080250A	Bolt	Out of stock	£2.16 £1.80
36	HP94101-06000	Plain Washer 6mm	Out of stock	£1.40 £1.17
37	HP94101-08000	Plain Washer 8mm	Out of stock	£1.09 £0.91
38	HP94251-06000	Lock Pin 6mm	Out of stock	£1.50 £1.25
39	HP94251-08000	Lock Pin 8mm	Out of stock	£1.75 £1.46
41	HP95701-0805500	Flange Bolt 8 X 55	Out of stock	£2.47 £2.06
46	HP54510-VF0-003	Clutch Cable	Out of stock	£25.69 £21.41
47	HP53110-VF0-020ZA	Upper Handle	Out of stock	£126.72 £105.60
49	HP91552-VF1-000	Lower Handle Collar	Out of stock	£10.03 £8.36
54	HP53125-VA3-680	Handle Grip	In stock	£11.88 £9.90
55	HP53118-VF0-010ZB	Handle Support	Out of stock	£30.90 £25.75
55	HP53118-VF0-010ZA	Handle Support	Out of stock	£23.46 £19.55
56	HP53128-VF0-010ZA	Handle Support	Out of stock	£23.46 £19.55
56	HP53128-VF0-010ZB	Handle Support L H	Out of stock	£28.30 £23.58
