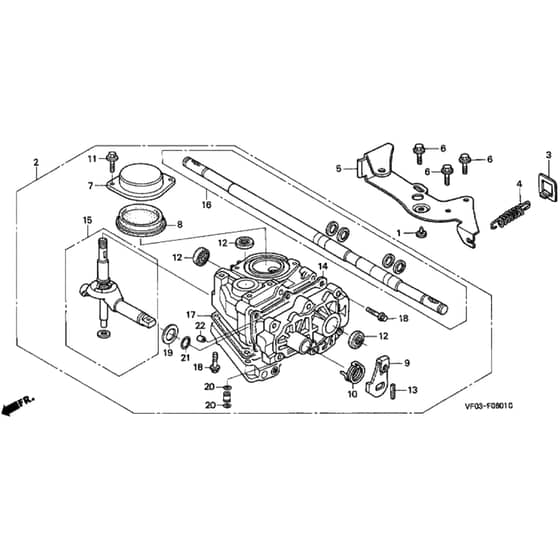

Honda HRD536 - HME Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Stopper
Stopper
HP17502-GAA-000 Out of stock
Stopper
£3.00 £2.50

  2 Transmission Assy
Transmission Assy
HP20001-VE5-A21 Out of stock
Transmission Assy
£548.40 £457.00

  3 Tension Spring Plate
Tension Spring Plate
HP21557-VE2-800 Out of stock
Tension Spring Plate
£8.20 £6.83

  4 Wheel Tension Spring
Wheel Tension Spring
HP24468-VE2-800 Out of stock
Wheel Tension Spring
£9.59 £7.99

  5 Wire Holder
Wire Holder
HP51125-VE2-J00 Out of stock
Wire Holder
£59.42 £49.52

  6 Flange Bolt 6 X 16
Flange Bolt 6 X 16
HP90029-888-000 Out of stock
Flange Bolt 6 X 16
£4.36 £3.63

  7 Oil Cap Assy
Oil Cap Assy
HP21230-VE5-A00 Out of stock
Oil Cap Assy
£24.31 £20.26

  8 Oil Cap O Ring
Oil Cap O Ring
HP21235-VE5-303 Out of stock
Oil Cap O Ring
£9.32 £7.77

  9 Control Arm
Control Arm
HP22533-VE5-A00 Out of stock
Control Arm
£16.30 £13.58

  10 Control Arm Return Spring
Control Arm Return Spring
HP24134-VE5-A00 Out of stock
Control Arm Return Spring
£2.94 £2.45

  11 Flange Bolt 5 X 12
Flange Bolt 5 X 12
HP90003-892-000 Out of stock
Flange Bolt 5 X 12
£2.23 £1.86

  12 Oil Seal
Oil Seal
HP91204-KE8-003 Out of stock
Oil Seal
£5.80 £4.83

  13 Spring Pin 4 X 25
Spring Pin 4 X 25
HP94305-40252 Out of stock
Spring Pin 4 X 25
£2.52 £2.10
