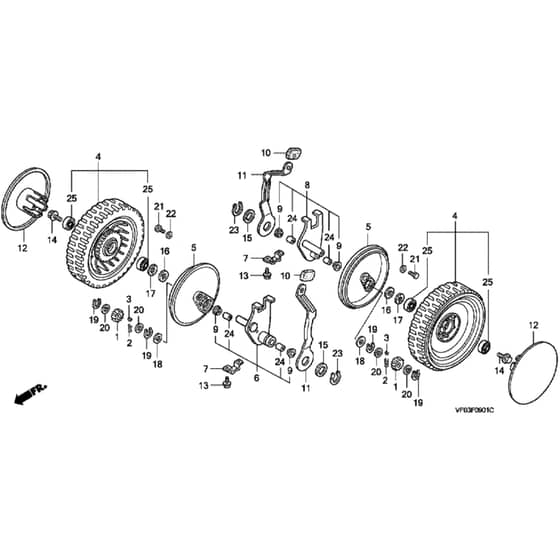

Honda HRD536 - HME - MZBL 8000001-8099999 Rear Wheel Diagram

Description

Honda HRD536 - HME Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42661-VE2-800 In stock	Pinion Gear	£9.32 £7.77
2	HP42668-VE2-800 In stock	Pawl Spring	£1.10 £0.92
3	HP42672-VE2-800 In stock	Ratchet Key	£3.84 £3.20
4	HP42710-VF1-000 Out of stock	Rear Wheel	£43.27 £36.06
5	HP42866-VE2-800 Out of stock	Wheel Cover	£19.24 £16.03
6	HP42930-VF0-030 Out of stock	Adjuster Arm Assy Rear R H	£30.34 £25.28
7	HP42938-VF0-000 Out of stock	Axle Holder	£2.30 £1.92
8	HP42940-VF0-030 Out of stock	Adjuster Arm Front L H	£30.06 £25.05
9	HP42944-VE2-801 In stock	Dust Seal 12.7mm	£9.66 £8.05
10	HP42952-VA4-000 In stock	Adjuster Grip	£1.52 £1.27
11	HP42961-VF0-000 Out of stock	Rear Adjuster Plate	£10.80 £9.00

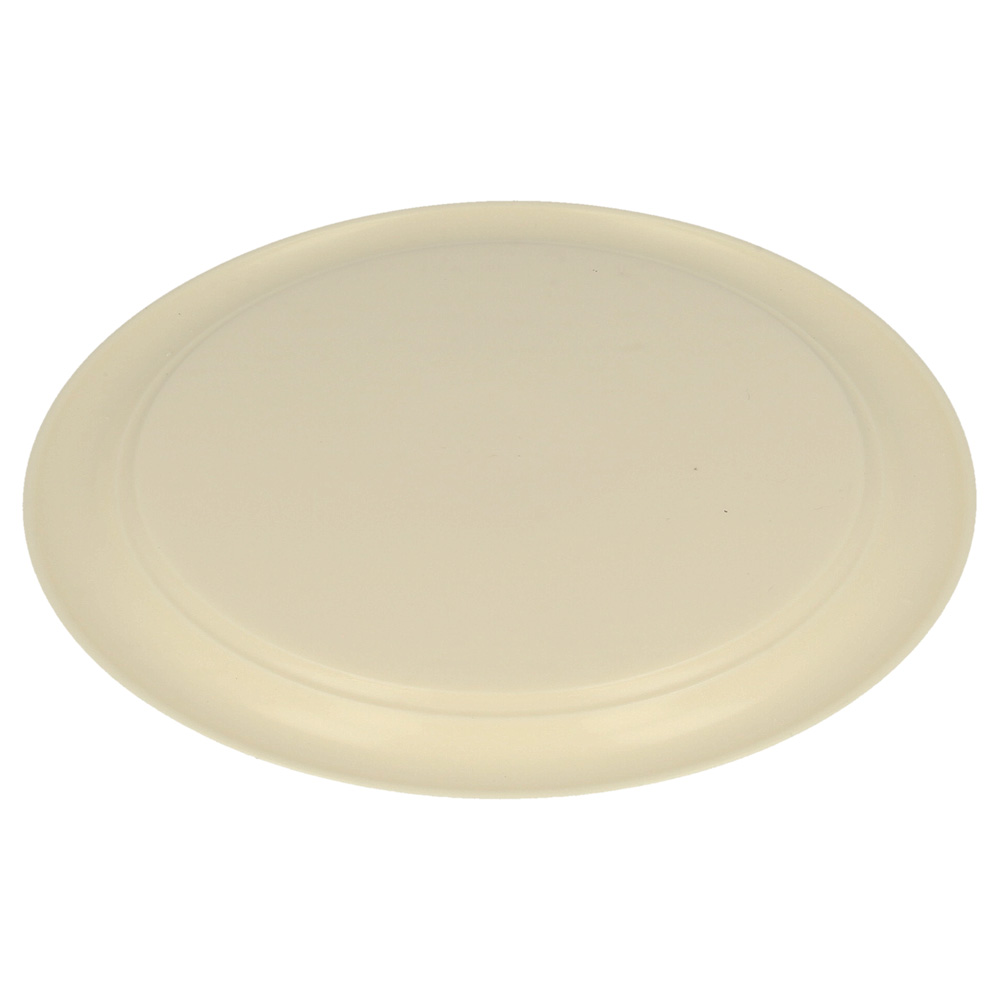

12	HP44719-VF0-010 Out of stock	Wheel Cap (up to ser no. 8019937)	£3.43 £2.86
12	HP42719-VE0-851ZA Out of stock	Wheel Cap (ser no. 8019938 +)	£3.43 £2.86
13	HP90013-883-000 Out of stock	Flange Bolt 6 X 12	£4.63 £3.86
14	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
15	HP90403-952-770 Out of stock	Plain Washer 22mm	£3.32 £2.77
16	HP90451-HB3-000 Out of stock	Thrust Washer	£2.84 £2.37
17	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
18	HP90502-VE2-800 Out of stock	Thrust Washer 13mm	£3.96 £3.30
19	HP90651-VE2-800 In stock	External Circlip 12.7mm	£1.46 £1.22
20	HP91559-VE2-800 In stock	Pinion Gear Collar	£2.08 £1.73
21	HP92101-050120A Out of stock	Bolt	£0.58 £0.48
22	HP94101-05800 Out of stock	Plain Washer 5mm	£1.09 £0.91
23	HP94511-22000 Out of stock	External Circlip 22mm	£2.34 £1.95
25	HP91051-VE0-750 In stock	Bearing (up to ser no. 8019937)	£11.40 £9.50
25	HP91055-VF0-000 Out of stock	Bearing (ser no. 8019938 +)	£7.34 £6.12
