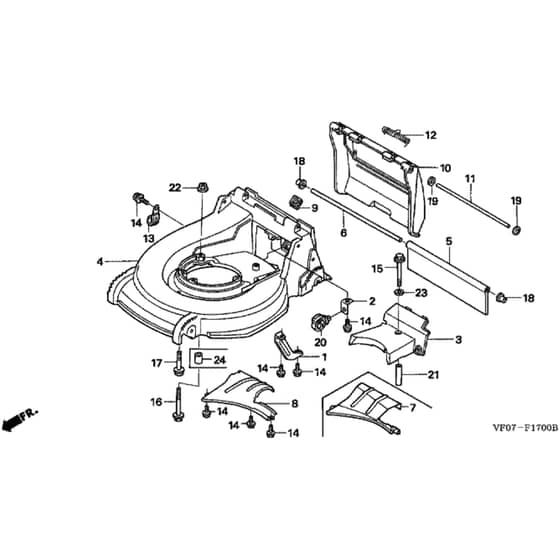

Honda HRD535K2 - QXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Transmission Guide
Transmission Guide
HP22511-VB3-B50 Out of stock
Transmission Guide
£28.90 £24.08

  3 Drive Shaft Cover
Drive Shaft Cover
HP54241-VF0-000 Out of stock
Drive Shaft Cover
£49.30 £41.08

  4 Mower Housing
Mower Housing
HP76111-VG0-010ZD Out of stock
Mower Housing
£396.00 £330.00

  8 Guide Scroll
Guide Scroll
HP76142-VF0-750 Out of stock
Guide Scroll
£54.48 £45.40

  9 Grommet
Grommet
HP76231-VA3-000 Out of stock
Grommet
£7.87 £6.56

  10 Discharge Guard
Discharge Guard
HP76281-VF0-E51 Out of stock
Discharge Guard
£51.17 £42.64

  11 Discharge Shaft
Discharge Shaft
HP76282-VE2-000 Out of stock
Discharge Shaft
£6.30 £5.25

  12 Guard Return Spring
Guard Return Spring
HP76284-VG8-000 Out of stock
Guard Return Spring
£7.92 £6.60

  13 Tube Clip
Tube Clip
HP90010-GE0-710 Out of stock
Tube Clip
£4.20 £3.50

  14 Flange Bolt 6 X 12
Flange Bolt 6 X 12
HP90013-883-000 Out of stock
Flange Bolt 6 X 12
£4.63 £3.86

  15 Flange Bolt 6 X 65
Flange Bolt 6 X 65
HP90015-ZG0-801 Out of stock
Flange Bolt 6 X 65
£4.44 £3.70

  16 Engine Setting Bolt
Engine Setting Bolt
HP90102-VA4-000 Out of stock
Engine Setting Bolt
£3.94 £3.28

  17 Engine Setting Bolt
Engine Setting Bolt
HP90102-VA5-000 Out of stock
Engine Setting Bolt
£4.63 £3.86

  19 Special Washer 8mm
Special Washer 8mm
HP90407-VA9-K40 In stock
Special Washer 8mm
£1.76 £1.47

  21 Collar 10 X 53
Collar 10 X 53
HP91553-VF0-000 Out of stock
Collar 10 X 53
£11.45 £9.54

  23 Plain Washer 6mm
Plain Washer 6mm
HP94103-06000 Out of stock
Plain Washer 6mm
£1.09 £0.91
