Honda HRD535K2 - QME - MZBM 8200001-9999999 Transmission Diagram

Honda HRD535K2 - QME - MZBM 8200001-9999999 Transmission Diagram
Honda HRD535K2 - QME - MZBM 8200001-9999999 Transmission Diagram

Description

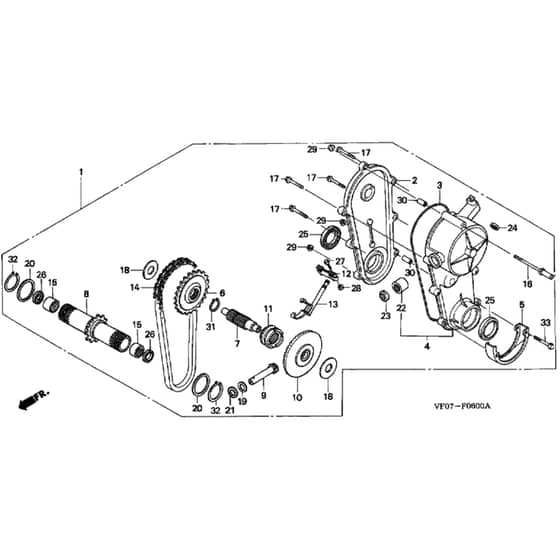

Honda HRD535K2 - QME Rotary Mower Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Transmission Assy HP20001-VG0-A52
Transmission Assy
 In stock
£510.00 £425.00

  2 Transmission Case R H HP21511-VA5-700
Transmission Case R H
 In stock
Was £93.14 £77.62 Special Price £35.99 £29.99

  3 Transmission Case O Ring HP21592-VA5-701
Transmission Case O Ring
 Out of stock
£7.44 £6.20

  4 Transmission Case Assy L H HP21610-VA5-700
Transmission Case Assy L H
 Out of stock
£172.80 £144.00

  5 Case Protector HP21911-VA5-700
Case Protector
 In stock
£17.28 £14.40

  6 Drive Sprocket (52T Bevel Gear Only) HP23120-VA5-701
Drive Sprocket (52T Bevel Gear Only)
 Out of stock
£64.32 £53.60

  6 Drive Sprocket (44T Bevel Gear Only) HP23121-VG0-C50
Drive Sprocket (44T Bevel Gear Only)
 Out of stock
£53.38 £44.48

  7 Countershaft (44T Bevel Gear Only) HP23221-VG0-C51
Countershaft (44T Bevel Gear Only)
 Out of stock
£59.28 £49.40

  7 Countershaft (52T Bevel Gear Only) HP23221-VA5-701
Countershaft (52T Bevel Gear Only)
 Out of stock
£55.87 £46.56

  8 Drive Sprocket (44T Bevel Gear Only) HP23372-VA5-701
Drive Sprocket (44T Bevel Gear Only)
 Out of stock
£115.20 £96.00

  9 Bevel Pinion (52T Bevel Gear Only) HP23411-VB3-810
Bevel Pinion (52T Bevel Gear Only)
 Out of stock
£43.18 £35.98

  9 Bevel Pinion (44T Bevel Gear Only) HP23411-VB3-801
Bevel Pinion (44T Bevel Gear Only)
 Out of stock
£58.13 £48.44

  10 Bevel Gear (44T Bevel Gear Only) HP23421-VB5-800
Bevel Gear (44T Bevel Gear Only)
 In stock
£120.36 £100.30

  10 Bevel Gear (52 Teeth) HP23421-VA4-800
Bevel Gear (52 Teeth)
 Out of stock
£91.08 £75.90

  11 Driven Clutch (44T Bevel Gear Only) HP22549-VG0-C50
Driven Clutch (44T Bevel Gear Only)
 In stock
£46.52 £38.77

  12 Clutch Arm HP23436-VA5-701
Clutch Arm
 In stock
£13.92 £11.60

  13 Shift Shaft (44T Bevel Gear Only) HP23440-VB3-800
Shift Shaft (44T Bevel Gear Only)
 Out of stock
£30.80 £25.67

  13 Shift Shaft (52T Bevel Gear Only) HP23440-VA4-801
Shift Shaft (52T Bevel Gear Only)
 Out of stock
£31.74 £26.45

  14 Roller Chain HP23861-VA5-701
Roller Chain
 Out of stock
£66.56 £55.47

  15 Needle Bearing HP41103-935-003
Needle Bearing
 In stock
£15.68 £13.07

  16 Bolt Guide HP90012-VA5-700
Bolt Guide
 Out of stock
£7.66 £6.38

  17 Flange Bolt 6 X 25 HP90121-952-000
Flange Bolt 6 X 25
 Out of stock
£3.07 £2.56

  18 Thrust Washer 12mm HP90452-VB5-800
Thrust Washer 12mm
 Out of stock
£5.45 £4.54

  19 Washer HP90452-187-000
Washer
 Out of stock
£4.73 £3.94

  20 Thrust Washer 28mm HP90458-729-920
Thrust Washer 28mm
 Out of stock
£8.26 £6.88

  21 Bevel Pinion Shim HP90482-VB5-800
Bevel Pinion Shim
 Out of stock
£3.94 £3.28

  21 Bevel Pinion Shim HP90483-VB5-800
Bevel Pinion Shim
 Out of stock
£3.94 £3.28

  21 Bevel Pinion Shim HP90481-VB5-800
Bevel Pinion Shim
 Out of stock
£3.94 £3.28

  22 Needle Bearing HP91012-VB5-801
Needle Bearing
 Out of stock
£25.85 £21.54

  23 Oil Seal HP91202-KA3-711
Oil Seal
 Out of stock
£3.70 £3.08

  24 Oil Seal 8 X 14 X 5 HP91201-ZE9-003
Oil Seal 8 X 14 X 5
 Out of stock
£5.15 £4.29

  25 Oil Seal 28 X 38 X 6 HP91251-VA5-701
Oil Seal 28 X 38 X 6
 In stock
£8.48 £7.07

  26 Dust Seal HP91252-VA5-701
Dust Seal
 In stock
£9.11 £7.59

  27 Screw Pan 5 X 20 HP93500-050200A
Screw Pan 5 X 20
 Out of stock
£1.61 £1.34

  28 Hex Nut 5mm HP94001-050000S
Hex Nut 5mm
 Out of stock
£3.97 £3.31

  29 Flange Nut 6mm HP94050-06000
Flange Nut 6mm
 In stock
£4.01 £3.34

  30 Dowel Pin 8 X 14 HP94301-08140
Dowel Pin 8 X 14
 Out of stock
£3.20 £2.67

  31 External Circlip 21mm (44T Bevel Gear Only) HP94510-21000
External Circlip 21mm (44T Bevel Gear Only)
 Out of stock
£1.75 £1.46

  31 External Circlip 18mm (52T Bevel Gear Only) HP94510-18000
External Circlip 18mm (52T Bevel Gear Only)
 Out of stock
£1.66 £1.38

  32 External Circlip 28mm HP94510-28000
External Circlip 28mm
 In stock
£3.52 £2.93

  33 Bolt HP95701-0603200
Bolt
 Out of stock
£1.63 £1.36
