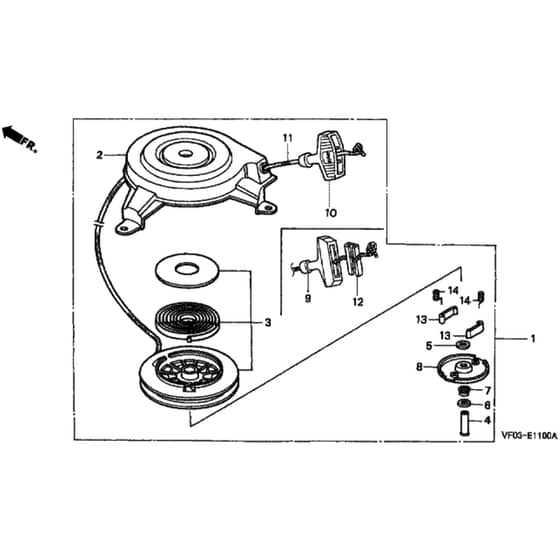

Honda HRD535K1 - SME - MZBM 8100001-8199999 Recoil Starter Diagram

Description

Honda HRD535K1 - SME Rotary Mower Parts Diagram

	Part No.	Details
2	HP28400-ZG9-803	Starter Recoil Assy	Out of stock	£97.92 £81.60
3	HP28415-ZG9-802	Pulley & Spring Assy	Out of stock	£45.14 £37.62
4	HP28419-ZG9-802	Centre Pin	Out of stock	£7.57 £6.31
5	HP28431-ZG9-802	Friction Plate	Out of stock	£4.18 £3.48
6	HP28432-ZG9-802	Friction Plate	Out of stock	£3.35 £2.79
7	HP28441-ZG9-802	Friction Spring	Out of stock	£3.06 £2.55
8	HP28444-ZG9-802	Retainer Spring	Out of stock	£6.30 £5.25
10	HP28461-ZE7-T01	Recoil Starter Handle	Out of stock	£7.02 £5.85
11	HP28462-ZG9-802	Recoil Starter Rope	Out of stock	£12.42 £10.35
13	HP28485-ZE6-T02	Dog	Out of stock	£7.30 £6.08
14	HP28486-ZE6-T02	Dog Spring	Out of stock	£4.03 £3.36

Honda HRD535K1 - SME Rotary Mower Parts Diagram
