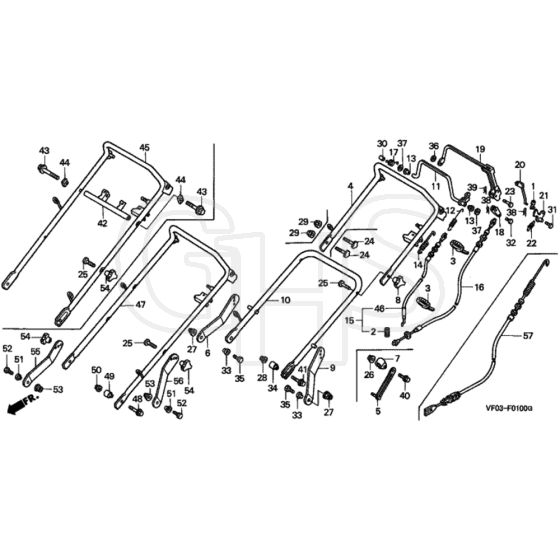

Honda HRD535K1 - SME - MZBM 8100001-8199999 Handle Pipe Diagram

Name: Honda HRD535K1 - SME - MZBM 8100001-8199999 Handle Pipe Diagram
SKU: hrd535k1_sme_mzbm_8100001_8199999_handle_pipe-group
Price: 0.91 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD535K1 - SME - MZBM 8100001-8199999 Handle Pipe Diagram

Description

Honda HRD535K1 - SME Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000	Rod Joint	Out of stock	£8.52 £7.10
3	HP32901-VE0-850	Cable Tie	Out of stock	£6.30 £5.25
11	HP54410-VA9-H50	Clutch Lever Assy	Out of stock	£78.72 £65.60
12	HP54411-VA3-J00	Clutch Spring	Out of stock	£8.04 £6.70
13	HP54412-952-770	Clutch Lever Bush	Out of stock	£4.62 £3.85
17	HP75118-VA3-J00	Stop Return Spring R H	Out of stock	£8.04 £6.70
18	HP75128-VE0-L00	Cable Arm	Out of stock	£14.41 £12.01
19	HP75161-VE0-L01	Roto-Stop Lever Assy	Out of stock	£58.56 £48.80
20	HP75165-VE0-L00	Ratchet Push Rod	Out of stock	£9.96 £8.30
21	HP75166-VA3-J01	Lock Lever	Out of stock	£24.72 £20.60
22	HP75168-VA4-000	Pawl Spring	Out of stock	£6.84 £5.70
23	HP90106-VA4-800	Clutch Lever Pin	Out of stock	£9.95 £8.29
25	HP90109-VF0-000	Handle Bolt	In stock	£9.84 £8.20
30	HP90552-VA3-J00	Collar 8 X 11 X 13.5	Out of stock	£5.89 £4.91
31	HP90753-VA3-J00	Lever Hinge Lock Pin	Out of stock	£4.80 £4.00
32	HP90754-VA9-P40	Cable Joint Pin	Out of stock	£3.54 £2.95
36	HP90407-952-300	Special Washer 6mm	Out of stock	£4.10 £3.42
37	HP94101-08000	Plain Washer 8mm	Out of stock	£1.09 £0.91
38	HP94251-06000	Lock Pin 6mm	Out of stock	£1.50 £1.25
39	HP94251-08000	Lock Pin 8mm	Out of stock	£1.75 £1.46
42	HP53168-VF0-850ZA	Handle Connector	Out of stock	£50.36 £41.97
43	HP90101-VE0-000	Handle Bolt	Out of stock	£2.88 £2.40
44	HP90501-898-000	Frame Joint Washer	Out of stock	£3.94 £3.28
45	HP53110-VF1-A50ZB	Upper Handle	Out of stock	£156.84 £130.70
46	HP54510-VF0-013	Clutch Cable	Out of stock	£25.69 £21.41
49	HP91552-VF1-000	Lower Handle Collar	Out of stock	£10.03 £8.36
50	HP90312-SB2-000	Lock Nut 8mm	Out of stock	£6.13 £5.11
51	HP91551-VF0-000	Handle Support Collar	Out of stock	£4.00 £3.33
52	HP92101-080250A	Bolt	Out of stock	£2.16 £1.80
53	HP90309-428-731	Flange Nut 8mm	Out of stock	£6.30 £5.25
54	HP53125-VA3-680	Handle Grip	In stock	£12.60 £10.50
55	HP53118-VF0-010ZA	Handle Support	Out of stock	£23.46 £19.55
55	HP53118-VF0-010ZB	Handle Support	Out of stock	£30.90 £25.75
56	HP53128-VF0-000	Handle Support Kit	Out of stock	£28.30 £23.58
56	HP53128-VF0-010ZB	Handle Support L H	Out of stock	£28.30 £23.58
56	HP53128-VF0-010ZA	Handle Support	Out of stock	£23.46 £19.55
57	HP54510-VF0-E51	Clutch Cable	Out of stock	£21.18 £17.65
