Honda HRD535 - QXE - MZBM 8000001-8099999 Handle Pipe Diagram

Name: Honda HRD535 - QXE - MZBM 8000001-8099999 Handle Pipe Diagram
SKU: hrd535_qxe_mzbm_8000001_8099999_handle_pipe-group
Price: 0.91 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD535 - QXE - MZBM 8000001-8099999 Handle Pipe Diagram

Description

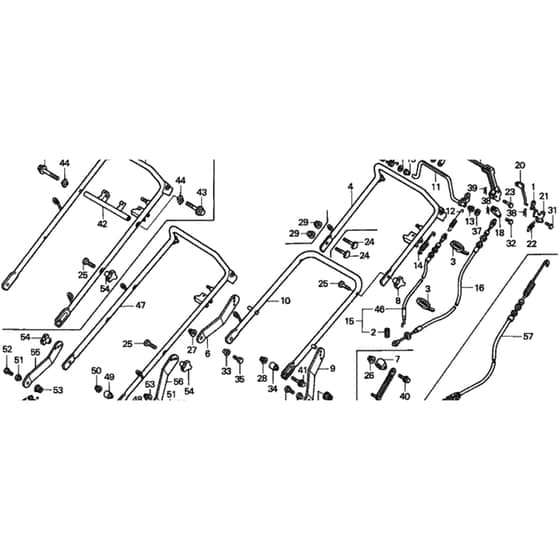

Honda HRD535 - QXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000 Out of stock	Rod Joint	£8.52 £7.10
2	HP23437-VA4-801 Out of stock	Clutch Return Spring	£5.62 £4.68
3	HP32901-VE0-850 Out of stock	Cable Tie	£6.30 £5.25
4	HP53110-VF0-751ZA Out of stock	Upper Handle (ser no. 8021986 +)	£152.10 £126.75
4	HP53110-VF0-750ZA Out of stock	Upper Handle (up to ser no. 8021985)	£97.16 £80.97
10	HP53150-VF0-850ZA Out of stock	Lower Handle (up to ser no. 8010817)	£50.36 £41.97
10	HP53150-VF0-851ZA Out of stock	Lower Handle Pipe (ser no. 8010818 +)	£52.88 £44.07
11	HP54410-VA3-J00 Out of stock	Clutch Lever Assy (up to ser no. 8035252)	£73.32 £61.10
11	HP54410-VA9-H50 Out of stock	Clutch Lever Assy (ser no. 8035253 +)	£78.72 £65.60
12	HP54411-VB3-800 In stock	Clutch Spring	£9.92 £8.27
13	HP54412-952-770 Out of stock	Clutch Lever Bush	£4.62 £3.85
14	HP54414-VA3-P00 In stock	Clutch Lever Return Spring	£6.12 £5.10
15	HP54510-VB5-800 In stock	Clutch Cable	£33.12 £27.60
16	HP54530-VA3-J01 In stock	Roto-Stop Cable	£36.58 £30.48
17	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.56 £6.30
18	HP75128-VE0-L00 Out of stock	Cable Arm	£14.41 £12.01
19	HP75161-VE0-L01 Out of stock	Roto-Stop Lever Assy	£58.56 £48.80
20	HP75165-VE0-L00 Out of stock	Ratchet Push Rod	£9.96 £8.30
21	HP75166-VA3-J01 Out of stock	Lock Lever	£20.23 £16.86
22	HP75168-VA4-000 Out of stock	Pawl Spring	£5.51 £4.59
23	HP90106-VA4-800 Out of stock	Clutch Lever Pin	£9.95 £8.29
25	HP90109-VF0-000 In stock	Handle Bolt	£9.24 £7.70
27	HP90309-428-731 Out of stock	Flange Nut 8mm	£6.30 £5.25
28	HP90312-SB2-000 Out of stock	Lock Nut 8mm	£5.64 £4.70
30	HP90552-VA3-J00 Out of stock	Collar 8 X 11 X 13.5	£5.89 £4.91
31	HP90753-VA3-J00 Out of stock	Lever Hinge Lock Pin	£4.13 £3.44
32	HP90754-VA9-P40 Out of stock	Cable Joint Pin	£3.08 £2.57
33	HP91551-VF0-000 Out of stock	Handle Support Collar	£4.00 £3.33
34	HP91552-VF1-000 Out of stock	Lower Handle Collar	£10.03 £8.36
34	HP91552-VF0-000 Out of stock	Lower Handle Collar	£7.46 £6.22
35	HP92101-080250A Out of stock	Bolt	£2.16 £1.80
36	HP94101-06000 Out of stock	Plain Washer 6mm	£1.40 £1.17
37	HP94101-08000 Out of stock	Plain Washer 8mm	£1.09 £0.91
38	HP94251-06000 Out of stock	Lock Pin 6mm	£1.45 £1.21
39	HP94251-08000 Out of stock	Lock Pin 8mm	£1.75 £1.46
41	HP95701-0805500 Out of stock	Flange Bolt 8 X 55	£2.47 £2.06
